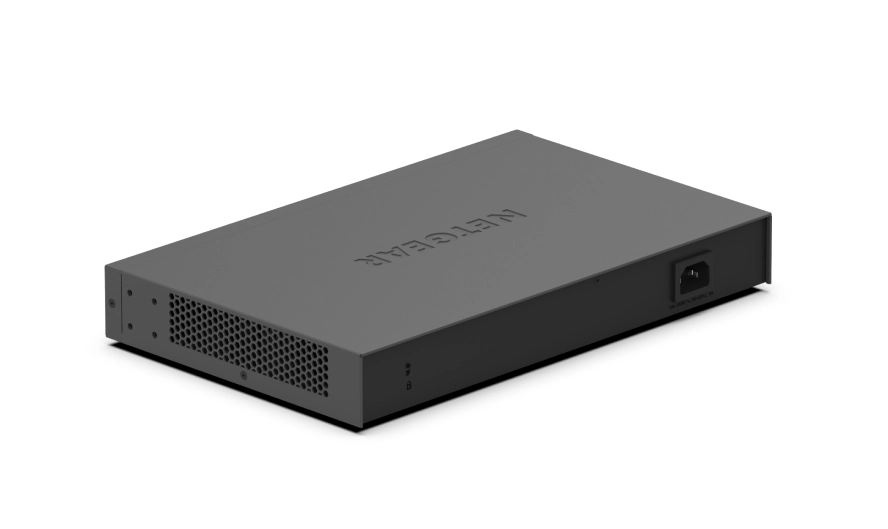

NETGEAR GS728TXP-100NES 28-ports

Key Features

  • Switch layer: L2/L3, L2/L3/L4
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
  • Multicast MAC address table: 512entries
  • DHCP features: DHCP client
  • Access Control List (ACL) ingress: 100
  • Latency (1 Gbps): 3.35µs
  • Number of static routes: 32
  • Static route: Yes
  • Port mirroring: Yes
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • SFP+ module slots quantity: 2
  • Switching capacity: 56Gbit/s
  • Full duplex: Yes
  • MAC address table: 16000entries
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Mean time between failures (MTBF)
1252990 h
Internal memory
128 MB
Processor frequency
400 MHz
Noise level
36.80 dB
Rack mounting
✓
Stackable
✓
Virtual LAN features
Voice VLAN
Product colour
Black
Packet buffer memory
16 MB
SFP+ module slots quantity
2
Switching capacity
56 Gbit/s
Full duplex
✓
MAC address table
16000 entries
Access Control List (ACL)
✓
Access Control List (ACL) rules
100
Auto-sensing
✓
Jumbo frames support
✓
Multicast support
✓
Static route
✓
Switch layer
L2/L3, L2/L3/L4

Weight & dimensions

Weight
3770 g
Height
43 mm
Depth
257 mm
Width
440 mm

Management features

Web-based management
✓
Firmware upgradeable
✓

Power

Power consumption (typical)
748.18 W
Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
380 W

Wireless LAN features

IGMP snooping
✓

Design

LED indicators
Yes
Form factor
1U

Computer system

Built-in processor
✓

Packaging content

User guide
✓
Quick start guide
✓
Manual
✓
Cables included
AC
Wall mounting kit
✓

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
✓
Number of VLANs
256
Spanning tree protocol
✓
Rate limiting
✓
Fiber ethernet cabling technology
1000BASE‑LX, 1000BASE‑SX
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 10BASE-T
10G support
✓
Link aggregation
✓
Flow control support
✓
Port mirroring
✓

Ports & interfaces

SFP module slots quantity
4
USB 2.0 ports quantity
1
Installed SFP+ modules quantity
2
Power over Ethernet plus (PoE+) ports quantity
24
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity
24

Operational conditions

Operating altitude (imperial)
0 - 3000 m
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
0 - 95 %
Non-operating altitude
0 - 3000 m
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
0 - 95 %

Technical details

Certification
CCC, CE, CE mark, Class A C-Tick, Class A EN 55022, EN 50082-1, EN 55024, FCC, VCCI Class A Class A EN 55022 (CISPR 22) Class A Class A C-Tick EN 50082-1 EN 55024 CCC, commercial FCC Part 15 Class A
Switch type
Managed

Memory

Flash memory
64 MB

Data transmission

Number of static routes
32
Latency (1 Gbps)
3.35 µs

Security

MAC address filtering
✓
SSH/SSL support
✓
Broadcast storm control
✓
Static port security
✓
Access Control List (ACL) ingress
100
DHCP features
DHCP client

Logistics data

Harmonized System (HS) code
85176990

Multicast features

Multicast MAC address table
512 entries

Product Details

The Most Cost Efficient 10G Connectivity for SMB The ProSAFE® S3300 Series are a new generation of Gigabit Stackable Smart Switches inclusive of 4 10G ports, which can be used for uplinks and/or stacking between other S3300 switches. Dependable switched LAN network design mandates an architecture that can both scale as organization networks grow-and be flexible enough to provide support for faster server and storage connections needs. As SMBs produce and consume more data, Gigabit to the desktop increasingly needs to be underpinned with 10GbE connectivity to the core to ensure a consistent, seamless user experience. This new generation of switches provides SMB customers with the most cost-effective 10G connections between the access and aggregation layer of the network. Setting New Standards for a Future Proof Network The ProSAFE S3300 Smart Stackable Series is the blueprint for a dependable future-proof network. From greenfield network requirements to network refresh projects, the ProSAFE S3300 series sets new standards in defining flexibility and choice for SMBs looking to leverage reliable, future proof technologies at affordable price points. Packed with rich enterprise-class feature sets and advanced security measures, it is the only advanced smart switch platform to offer both dedicated 10GBase-T and SFP+ uplink and stacking connectivity in both PoE+ and non PoE configurations – a combination that delivers an unrivalled and powerful interconnect solution for access to core connectivity. Powerful Platform to Support Demanding Applications With a choice of 24 or 48 port models, these switches can deliver on demanding tasks such as data replication and backup, video on demand and high volume transaction processing. Up to 6 switches across the series can be stacked for a total of 288 network ports, with 40Gbps stacking bandwidth and full redundancy for unsurpassed reliability. Add in the ability to deliver PoE+ to every port with supplemental RPS and application diversity is readily supported from PTZ IP camera surveillance solutions through to high powered wireless access points and VoIP phones. The inclusion of 10GBase-T uplink capability as standard ensures an affordable way to leverage existing copper installations – if Gigabit speeds and link aggregation meets current requirements, simply migrate to 10GbE connectivity at a pace and time to suit your needs. With lifetime warranty, lifetime NBD and lifetime online technical chat to back you up, you’ll have access to an extensive support service to help protect your investment and reduce downtime risk over the long term.

Files

User manual

mmo_120123848_1726138124_7991_1223983.pdf

PDF• 3.4 MB

Product Brochure

mmo_120123848_1726138136_9923_848357.pdf

PDF• 699.9 KB

Installation Guide

mmo_55361117_1615900861_6229_1560.pdf

PDF• 546.7 KB
