Allware

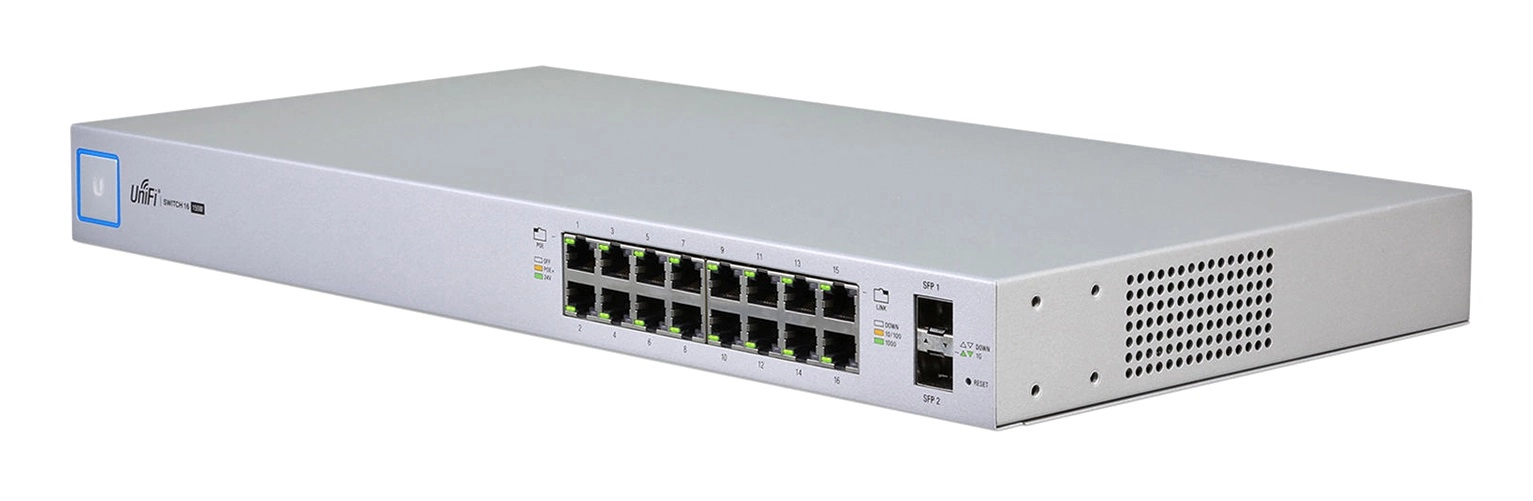

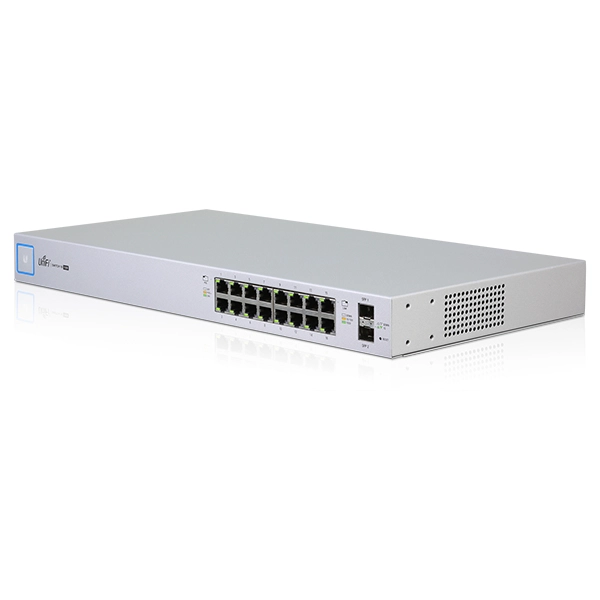

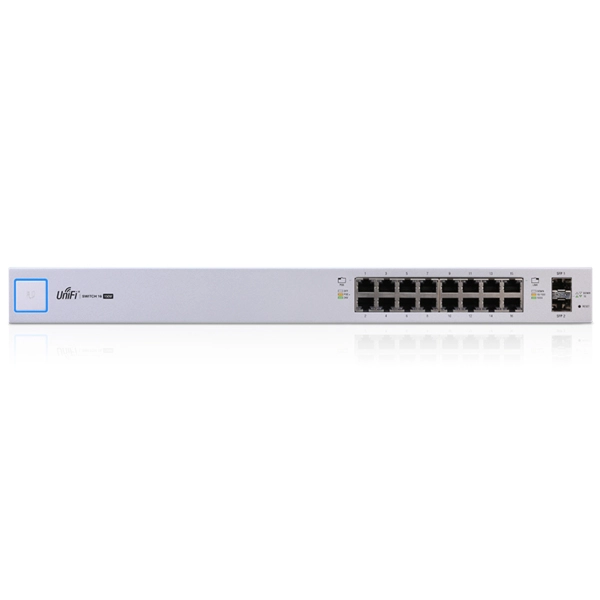

Ubiquiti US-16-150W 16-ports

Best offer
AED
2 49900

Key Features

  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Throughput: 26.78Mpps
  • Gigabit Ethernet (copper) ports quantity: 16
  • Port mirroring: Yes
  • Power over Ethernet plus (PoE+) ports quantity: 16
  • Jumbo frames: 9216
  • Wall mountable: Yes
  • Switching capacity: 36Gbit/s
  • Full duplex: Yes
  • MAC address table: 16384entries
  • Authentication type: IEEE 802.1x, RADIUS
  • Auto-sensing: Yes
  • Jumbo frames support: Yes

Specifications

Features

Screws included
Rack mounting
Product colour
Grey, White
Wall mountable
Switching capacity
36 Gbit/s
Full duplex
MAC address table
16384 entries
Authentication type
IEEE 802.1x, RADIUS
Auto-sensing
Jumbo frames support
Forwarding rate
26.78 Mpps
Switch layer
L2

Weight & dimensions

Weight
2800g, 2890g
Height
43 mm
Depth
221 mm
Width
443 mm

Power

AC input voltage
100 - 240 V
Power consumption (typical)
28 W
AC input frequency
50 - 60 Hz
Power consumption (max)
150 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
34.20 W
Total Power over Ethernet (PoE) budget
150 W
Power over Ethernet (PoE) type supported
Active PoE, Passive PoE

Ergonomics

Cable management

Design

Reset button
LED indicators
Activity, Data, Link, PoE, Speed, Status
Form factor
1U

Packaging content

Quick start guide
Cables included
AC
Power supply included
Mounting bracket(s) included
Rack mount kit
Wall mounting kit

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
Number of VLANs
255
Auto MDI/MDI-X
Spanning tree protocol
Ethernet LAN data rates
10, 100
Copper ethernet cabling technology
1000BASE-T, 10BASE-T, 10GBASE-TX
10G support
Link aggregation
Flow control support
Jumbo frames
9216
Port mirroring

Ports & interfaces

SFP module slots quantity
2
Console port
RJ-45
Installed SFP modules quantity
2
Power over Ethernet plus (PoE+) ports quantity
16
Gigabit Ethernet (copper) ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
16

Operational conditions

Operating relative humidity (H-H)
5 - 95 %

Technical details

Certification
CE, ETSI300-019-1.4 CE, FCC, IC
Switch type
Managed

Data transmission

Throughput
26.78 Mpps

Security

Broadcast storm control
Authentication
Port-based authentication

Power over Ethernet (PoE)

Power over Ethernet (PoE) voltage range
20 - 27 V

Logistics data

Harmonized System (HS) code
85176990

Product Details

POWERFUL ENTERPRISE SWITCH The UniFi® Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. MULTI-SITE MANAGEMENT A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts. OPTICAL FIBRE BACKHAUL Two SFP ports support uplinks of up to 1 Gbps. VERSATILE MOUNTING OPTIONS The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack. UNIFI CONTROLLER You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features: - Operation mode (switching, mirroring, or aggregate) per port - Network/VLAN configuration - Jumbo frame and flow control services - Network settings - Storm control setting per port - Spanning tree configuration - 802.1x control and RADIUS VLAN - Debug terminal option for command-line interface
