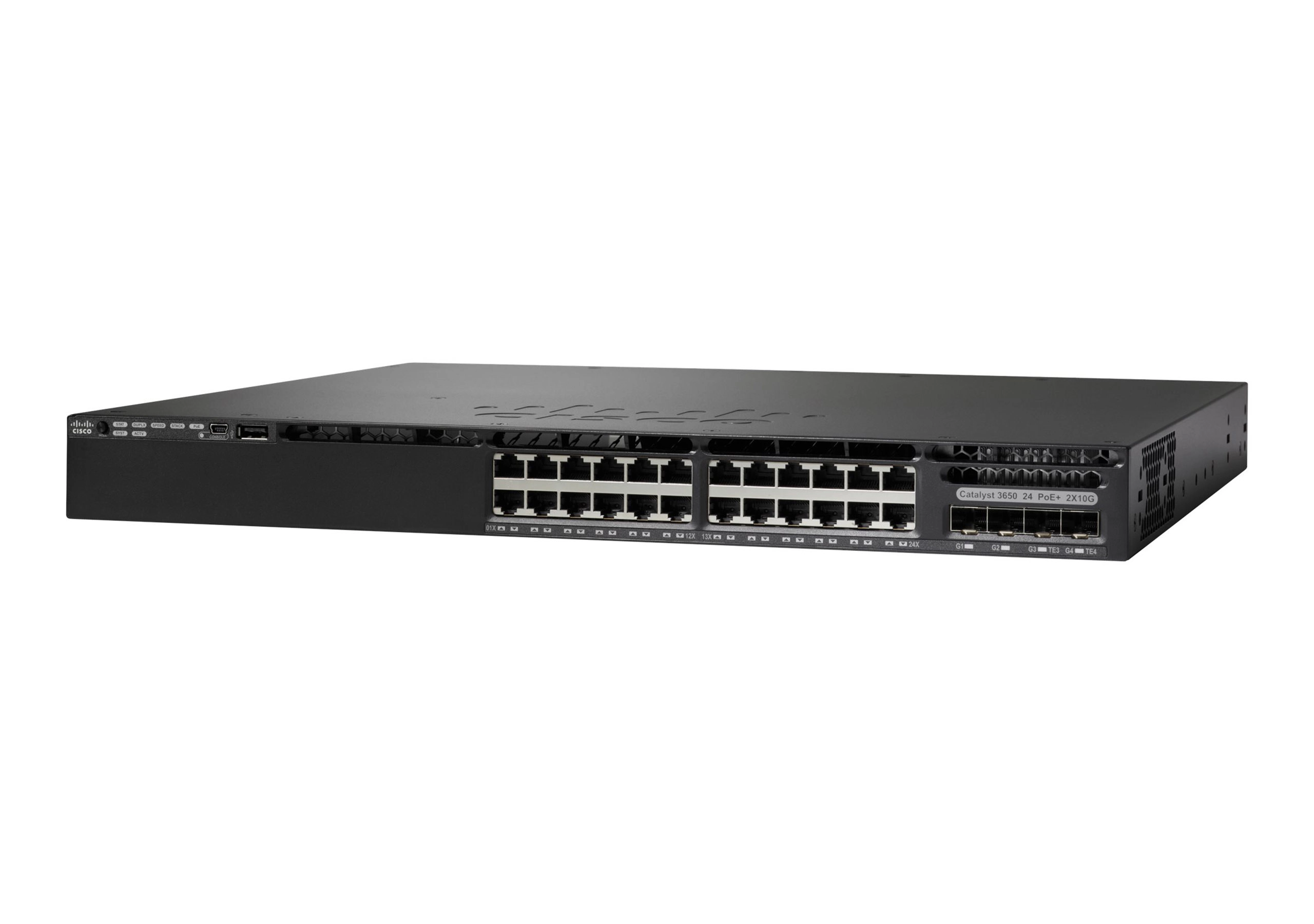

Cisco WS-C3650-24PS-E 24-ports

Best offer
AED
5 24157

Key Features

  • Switch layer: L2, L3
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Multicast MAC address table: 24000entries
  • DHCP features: DHCP client, DHCP server
  • Power over Ethernet plus (PoE+) ports quantity: 24
  • IP routing: Yes
  • Jumbo frames: 9198
  • Wall mountable: Yes
  • SFP+ module slots quantity: 2
  • Switching capacity: 92Gbit/s
  • Full duplex: Yes
  • MAC address table: 32000entries
  • Access Control List (ACL): Yes
  • Traffic classification: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Country of origin
China
Mean time between failures (MTBF)
528280 h
Safety
CAN/CSA-C22.2 No. 60950-1
Market segment
Business
Internal memory
4096 MB
MIB support
Y
Quality of Service (QoS) support
✓
Noise level
48 dB
Rack mounting
✓
Stackable
✓
Virtual LAN features
Port-based VLAN, Private VLAN, Stacked VLAN
Product colour
Black
Wall mountable
✓
SFP+ module slots quantity
2
Switching capacity
92 Gbit/s
Full duplex
✓
MAC address table
32000 entries
Access Control List (ACL)
✓
Traffic classification
✓
Traffic shaping
✓
Bandwidth
160 Gbit/s
Jumbo frames support
✓
Multicast support
✓
Switch layer
L2, L3

Packaging data

Package weight
2200 g
Package height
203.20 mm
Package depth
546.10 mm
Package width
520.70 mm

Weight & dimensions

Weight
7260 g
Height
44 mm
Depth
448 mm
Width
445 mm

Management features

Web-based management
✓
ARP inspection
✓

Power

Power connector
DC-in jack
Power plug type
Type C
AC input voltage
100 - 240 V
Power consumption (typical)
64.18 W
AC input frequency
50 - 60 Hz
Input current
5 - 12 A
Power consumption (max)
975 W
Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
390 W
Number of power supply units
1
Redundant power supply (RPS) support
✓

Wireless LAN features

IGMP snooping
✓

Design

LED indicators
Yes
Form factor
1U

Packaging content

Packaging content
1 printed document
Power supply included
✓
AC adapter included
✓

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
✓
Number of VLANs
4094
Auto MDI/MDI-X
✓
Spanning tree protocol
✓
Rate limiting
✓
10G support
✗
Link aggregation
✓
Flow control support
✓
Jumbo frames
9198

Ports & interfaces

Fiber optic connector
SFP
SFP module slots quantity
4
Cable types supported
Cat5, Cat5e, Cat6, Cat6a
Power over Ethernet plus (PoE+) ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24

Operational conditions

Operating altitude (imperial)
0 - 1500 m
Operating relative humidity (H-H)
5 - 96 %
Non-operating altitude
0 - 5000 m
Operating altitude
0 - 1500 m
Storage relative humidity (H-H)
5 - 95 %

Technical details

Switch type
Managed

Memory

Flash memory
2000 MB

Security

MAC address filtering
✓
SSH/SSL support
✓
BPDU filtering/protection
✓
DHCP features
DHCP client, DHCP server

Ethernet LAN features

IP routing
✓

Logistics data

Harmonized System (HS) code
85176990

Solid state drive

Memory type
DRAM

Multicast features

Multicast MAC address table
24000 entries

Product Details

The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.

Files

Product Brochure

mmo_31976675_1592912824_4058_19862.pdf

PDF• 1.4 MB
