ASUS ROG Zephyrus - 16'' Core Ultra 9 185H 16GB DDR5 1TB SSD
Key Features
- Discrete graphics card: Yes
- Performance-core Max Turbo Frequency: 5.1, 5.4GHz
- Efficient-core Max Turbo Frequency: 3.8, 4.5GHz
- Fast charging time (50%): 30min
- Keyboard backlit zone: 1-zone RGB
- Keyboard backlit colour: RGB
- Low Power Efficient-cores: 2
- Performance-core base frequency: 2.3, 2.9GHz
- Efficient-core base frequency: 1.8, 2.7GHz
- Low Power Efficient-core Max Turbo Frequency: 2.5GHz
- Low Power Efficient-core Base Frequency: 1000MHz
- Discrete GPU manufacturer: NVIDIA
- Discrete graphics card memory: 8, 12, 16GB
- Discrete graphics memory type: GDDR6
- On-board GPU manufacturer: Intel
Specifications
Features
Country of origin
China
Bundled software
Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets
for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, and time.), device
Internal memory
16000MB, 32000MB
Built-in microphone
✓
Operating system installed
Windows 11 Home, Windows 11 Pro
Card reader integrated
✓
Password protection type
BIOS, User
Password protection
✓
Trusted Platform Module (TPM)
✓
Bluetooth version
5.2, 5.3, 5.4
Speaker power
4 W
Maximum refresh rate
240 Hz
Product colour
Black, Grey, White
Keyboard layout
AZERTY
Resolution
2560 x 1600 pixels
Pointing device
Touchpad
Memory channels
Dual-channel
Face recognition
✓
Colour name
Eclipse Gray, Platinium White, Platinum White
Number of microphones
3
Numeric keypad
✗
Display surface
Gloss
Product type
Laptop
Front camera resolution
1920 x 1080 pixels
Trusted Platform Module (TPM) version
2.0
Keyboard language
Belgian
Front camera
✓
Packaging data
Package weight
2860g, 28600g
Package height
335mm, 420mm
Package depth
90mm, 335mm, 465mm
Package width
90mm, 106mm, 465mm
Weight & dimensions
Width (imperial)
13.94", 13.98"
Package weight
2.86kg, 28.60kg
Weight
1850g, 1950g
Depth
246 mm
Width
354mm, 355mm
Height (rear)
16.40mm, 17.20mm, 17.40mm
Height (front)
14.90mm, 16.20mm
Display
Display resolution
2560 x 1600 pixels
Panel type
IPS, OLED
Touchscreen
✗
Native aspect ratio
16:10
Colour gamut
100 %
High Dynamic Range (HDR) technology
Dolby Vision
RGB colour space
DCI-P3
Contrast ratio (typical)
1000000:1
Display brightness
400cd/m², 500cd/m²
Maximum display brightness (HDR)
500cd/m², 550cd/m²
Power
Battery technology
Lithium-Ion (Li-Ion)
AC adapter input voltage
100 - 240 V
AC adapter output current
10A, 12A
AC adapter output voltage
20 V
AC adapter frequency
50 - 60 Hz
AC adapter power
200W, 240W
USB Type-C charging port
✓
Performance
Fast charging
✓
Top Wi-Fi standard
Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Optical drive
Optical drive type
No
Other features
Display response rise/fall
0.20 ms
Chassis type
Clamshell
Windows Hello
✓
Total storage capacity
1000GB, 2000GB
Maximum internal memory
16000MB, 32000MB, 64000MB
Repairability index
8
Storage
Compatible memory cards
SD
NVMe
✓
Storage media
SSD
SSD interface
PCI Express 4.0
SSD capacity
2000 GB
SSD form factor
M.2
Total SSDs capacity
1000GB, 2000GB
Design
Housing material
Aluminium
Market positioning
Gaming
Form factor
Clamshell
Graphics
NVIDIA G-SYNC
✓
Discrete graphics card model
NVIDIA GeForce RTX 4060, NVIDIA GeForce RTX 4070, NVIDIA GeForce RTX 4080, NVIDIA GeForce RTX 4090, NVIDIA GeForce RTX 5070 Ti
On-board graphics card
✓
On-board graphics card family
Intel Arc Graphics
On-board GPU manufacturer
Intel
Discrete graphics memory type
GDDR6
Discrete graphics card memory
8GB, 12GB, 16GB
Discrete GPU manufacturer
NVIDIA
Discrete graphics card
✓
Computer system
Operating system architecture
64-bit
Processor cores
16
Processor model
185H
Processor manufacturer
Intel
Processor family
Intel Core Ultra 9
Internal memory
32 GB
Antenna type
2x2
Packaging content
Trial software
1-month trial for new Microsoft 365 customers. Credit card required, 1-month trial for new Microsoft 365 customers. Credit card required., 1-month trial for new Microsoft 365 customers. Credit card required. McAfee® 30 days free trial, McAfee 30 days, McAfee® 30 days free trial, Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, and time.), device
AC adapter included
✓
Keyboard backlit zone
1-zone RGB
Keyboard backlit colour
RGB
Network
Bluetooth
✓
Wi-Fi standards
Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet LAN
✗
Mobile network connection
✗
Ports & interfaces
USB Power Delivery (USB PD)
✓
USB Type-C DisplayPort Alternate Mode
✓
HDMI version
2.1
Thunderbolt 4 ports quantity
1
Combo headphone/mic port
✓
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
1
Intel® Thunderbolt 4
✓
Technical details
Commodity Classification Automated Tracking System (CCATS)
8471300000
Introduction year
2024, 2025
Number of battery cells
4
Processor
Processor series
Intel Core Ultra Series
Processor generation
Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
On-board graphics card model
Intel Arc Graphics
Efficient cores
8
Performance cores
6
Processor base power
45 W
Maximum turbo power
115 W
Efficient-core boost frequency
1.80 GHz
Processor cache type
Smart Cache
L2 cache
24 MB
Processor cache
24 MB
Processor boost frequency
5.10GHz, 5.40GHz
Processor threads
16, 22
Low Power Efficient-core Max Turbo Frequency
2.50 GHz
Low Power Efficient-core Base Frequency
1000 MHz
Efficient-core base frequency
1.80GHz, 2.70GHz
Performance-core base frequency
2.30GHz, 2.90GHz
Low Power Efficient-cores
2
Efficient-core Max Turbo Frequency
3.80GHz, 4.50GHz
Performance-core Max Turbo Frequency
5.10GHz, 5.40GHz
Memory
Memory form factor
On-board
Maximum internal memory
16GB, 32GB, 64GB
Internal memory type
LPDDR5x-SDRAM
Memory clock speed
7467 MHz
Memory layout (slots x size)
2 x 16, 2 x 8
Audio
Audio system
Dolby Atmos, Smart Amp
Number of built-in speakers
4, 6
Keyboard
Keyboard backlit
✓
Video
High Dynamic Range (HDR) supported
✓
HD type
2.5K, Quad HD, WQXGA
Camera
Infrared (IR) camera
✓
Front camera HD type
Full HD
Battery
Battery capacity
90 Wh
Fast charging time (50%)
30 min
Neural processor unit (NPU)
NPU performance up to
13 TOPs
GPU performance up to
77 TOPs
Total processor performance up to
99 TOPs
AI software frameworks supported by NPU
DirectML, ONNX RT, OpenVINO, WebNN, Windows ML
AI datatype support on NPU
FP16, FP32, Int8
Windows Studio effects support
✓
Sparsity support
✓
Maximum frequency NPU
1.40 GHz
Neural processor unit (NPU)
Intel AI Boost
Solid state drive
Number of SSDs installed
1
Product Details
PERFORMANCE MEETS PRECISION
DESIGN
The New Era
Power, precision, and elegance define the 2024 Zephyrus G16. Thinner and sleeker than ever before, the Zephyrus G16 still has the same sense of style and individuality that has always set it apart from the crowd. Featuring an all-aluminum CNC-machined chassis, this laptop is the perfect blend of performance and style.
PERFORMANCE
The Future Is Here
Game and create with ease on this Windows 11 Pro powered machine. Featuring up to an Intel® Core™ Ultra 9 processor 185H with AI accelerators and up to an NVIDIA® GeForce RTX™ 4090 Laptop GPU, this 16-inch machine can easily handle the latest games and cutting-edge creative software alike. Whether you’re in a video call, editing a video, or in a next generation game, AI is working tirelessly behind the scenes to improve your experience.
Ray Tracing Unleashed
Whether you’re a gamer, a creator, or both, the Zephyrus G16 stands ready, equipped with up to an NVIDIA® GeForce RTX™ Laptop GPU. Boasting game changing features like DLSS 3.5 with Frame Generation, and the latest ray tracing enhancements, this machine offers unprecedented realism in modern games. NVIDIA® Advanced Optimus support allows for seamless transitioning between low power and low latency modes the moment a game is launched, and with a max TGP of 115W, the GPU is always allowed to fully flex its silicon muscles.
Your Ideas, Accelerated by NVIDIA Studio
Creativity that’s all in. NVIDIA Studio is your creative advantage with state-of-the-art RTX GPUs that power the world’s premiere creative apps. Real-time ray tracing delivers hyper-realistic graphics and the Studio suite of exclusive AI-assisted tools take your ideas and designs from concept to completion, faster. With NVIDIA Studio Drivers, your digital canvas is always up-to-date with maximum stability and performance, so you can focus on your next big idea.
Get Next-Level AI Performance On GeForce RTX.
Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ and NVIDIA RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and next-gen capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.
Next-Level Performance
Accelerate your workflow with up to an Intel® Core™ Ultra 9 processor 185H, Not only a blazing fast gaming CPU in traditional titles, this processor features built-in AI accelerators to take advantage of the latest technologies. Dedicated NPU cores are ideal for sustained AI workloads and allow that AI to reduce power consumption for longer battery life.
Help Is Always At Hand
Copilot in Windows 11 complements your capabilities and creativity with intelligent assistance and relevant answers.
NEBULA DISPLAY
OLED Is Here
For the first time on an ROG laptop, enjoy the ultra-fast response times and incredible contrast ratios that are only possible with OLED technology. This panel also boasts a 2.5K resolution, giving it incredible pixel density on a 16-inch screen, with a 240Hz refresh rate that makes all of your games look silky smooth. With 100% coverage of the DCI-P3 color space, a delta E color accuracy of less than 1, and VESA HDR True Black 500 certification, prepare to be immersed in HDR content so lifelike that the screen melts away.
*Average tested result in MyASUS/ Armoury Crate Splendid Display P3 and sRGB color gamut: Delta E < 1, +/- 0.5, and may vary by specification. Please note that the actual performance also may vary under different test procedures, equipment and patterns.
FAST
Leading OLED Panels With G-SYNC Support
OLED displays have an ultrafast 0.2 ms response time, which ensures smoother fast-paced action scenes, low-latency gameplay, and subtle details like blur-free text scrolling.
BRIGHT
1,000,000:1 Ultra-High Contrast Ratio
OLED displays have millions of light-emitting diodes (LED), and unlike traditional display technologies, they can turn each pixel on and off individually. Because of this, OLED panels can achieve pixel-perfect black levels, resulting in extreme contrast ratios like 1,000,000:1. This true black allows for images that appear bright and punchy without feeling washed out, ensuring you never miss an enemy hiding in the shadows. HDR has never looked this good.
VIVID
2.5K Resolution
Enjoy incredibly vivid scenes thanks to the added visual fidelity offered by a 2.5K resolution. With a higher pixel density than 1440p, 2.5K displays allow the true vibrance of both still images and video content to truly shine.
THERMAL
Cool, Calm, Collected
ROG Intelligent Cooling is a suite of components that work together in harmony to keep our high-performance laptops cool and quiet. The Zephyrus G16 boasts some never-before-seen additions to ROG’s list of cooling technologies, including 2nd Generation Arc Flow Fans™ and a redesigned high-efficiency air outlet. Certain models also feature a custom vapor chamber or a tri-fan design, with a third auxiliary fan that helps to move excess system heat to the heatsinks. All models also sport liquid metal, an ultra-high performance thermal interface material. Taken together, these systems keep the machine operating at its peak while staying quieter than ever.
CONTROL
Keys To Mastery
The trackpad and keyboard are critical for controlling your laptop, so we spared no expense with the design of the Zephyrus G16. Despite being just a 16-inch device, the G16 boasts a large 16:10 aspect ratio, matching the proportions of the screen itself effortless scrolling. We’ve also increased the keycap size by 12% for smoother typing as well, thanks to extra rigidity from the CNC machining. An extra long 1.7mm travel distance gives the keyboard a premium typing feel, and with a lifetime of 20 million presses, it’s a perfect long-term partner.
DESIGN STORY
Sleek Design
The new Zephyrus G16 catches your eye the moment you see it. Precision CNC-machined from aluminum alloy, this high strength material accepts complex shapes and also looks absolutely gorgeous after being anodized in either Eclipse Gray or the all-new breathtaking Platinum White colorway. The sleek chassis and matte finish of the Zephyrus G16 simply beg to be touched.

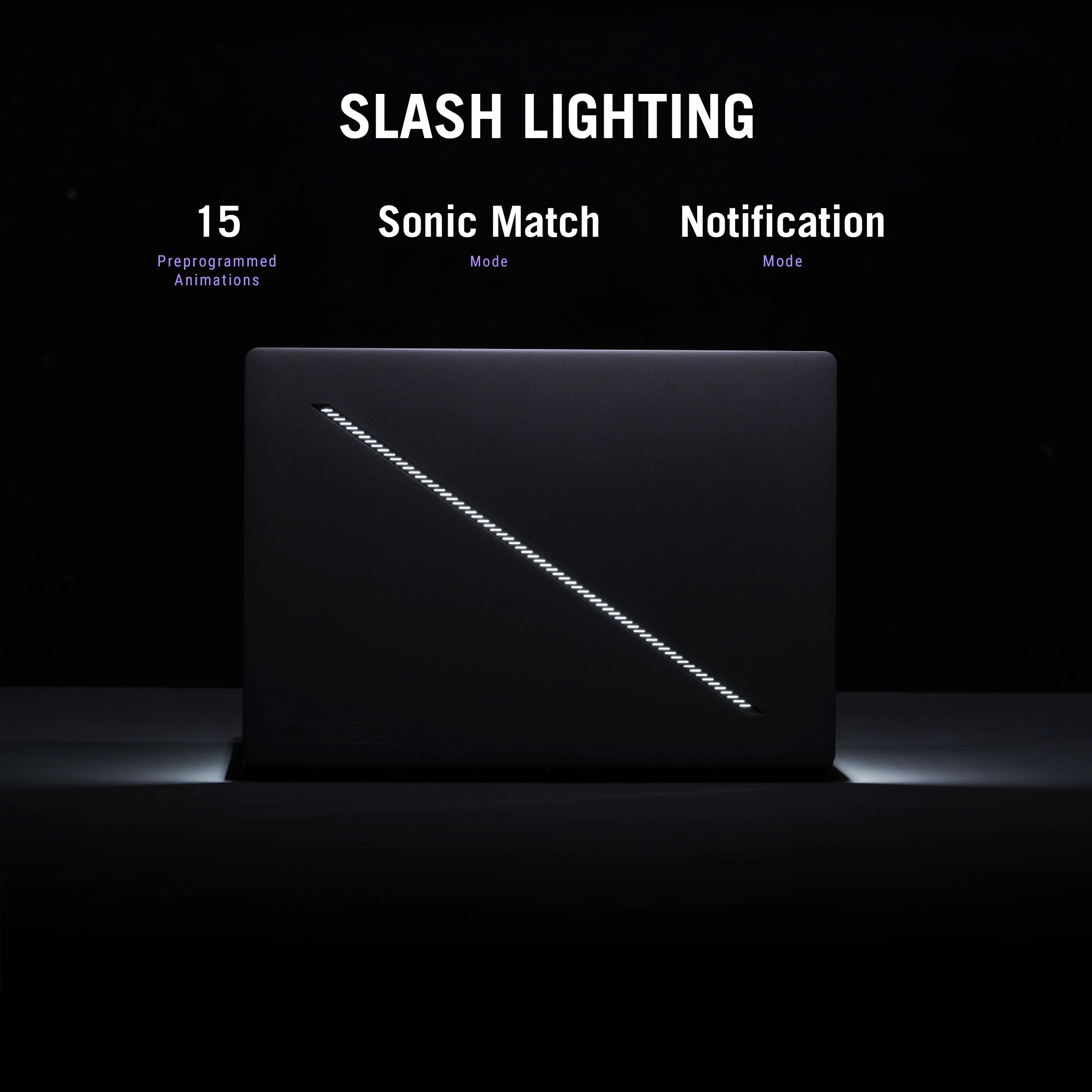

A Slice Of Brilliance
In 2024, the G16 breaks the mold, debuting an all new lighting design: the Slash Lighting array. A bold streak across the lid of the machine, Slash Lighting is an evolution of the elegance and individuality that make Zephyrus so unique.
It retains the customization of its predecessor, with a design inspired by sci-fi and contemporary art.
CONTROL
Precision Craftsmanship
Built from aluminum alloy 6063, the chassis of the Zephyrus G16 is painstakingly CNC-machined to minimize excess volume while maintaining rigidity. Using precision tools just 0.7mm in diameter, channels for the keyboard, touchpad and speakers are milled to ultra-tight tolerances for a premium and robust chassis with components that stretch edge to edge. After an eight-step process, the sandblasted, polished and anodized G16 chassis stands ready to support its flagship hardware.
Carving out channels for the keyboard, touchpad, and speakers with ultra-tight tolerances allow them to lay edge-to-edge. Maximum space, maximum efficiency.
Each keyhole, and the nearby keyboard vents, are milled individually. This gives the metal a more premium finish and maintains structural strength to minimize keyboard flex when the chassis is fully assembled.
The holes for the speakers are drilled at a super high 100,000 RPM, allowing for ultra-tight tolerances and a design that spans from one edge of the machine to the other.
AUDIO
Pump Up The Volume
Get lost in the music with the new and improved woofers on the Zephyrus G16. With a staggering 47% volume increase and an ultra-low bass frequency of 100Hz, the G16 produces clear and vibrant sound that you wouldn’t expect from an ultra-slim 16-inch machine. Whether you’re vibing to your favorite podcast or saving the world in the latest games, the Zephyrus G16 is ready to pump up the volume.
PORTABILITY
All day power
The Zephyrus G16 has always been defined by its portability, and the 2024 model is no exception. This incredible gaming machine is a true thin-and-light, weighing in at just 1.85kg, with some models measuring as low as 1.49cm thick. Paired with a 90Wh battery that supports fast charging from 0-50% in just 30 minutes and support for Wi-Fi 6E wireless networking, the Zephyrus G16 is the ultimate gaming and productivity machine for those on the move.
DISCOVER YOUR NEXT FAVORITE GAME
Play over 100 high-quality games with friends on your PC, console, phone or tablet for one low monthly price.* With games added all the time, there’s always something new to play.
BUNDLE
GEAR UP AND GAME
Bundle the ROG Zephyrus G16 with an array of gaming peripherals and accessories. Navigate smoothly and precisely with the ROG Impact gaming mouse. Lighten your load with a smaller, 100W adapter that offers enough power for you to stay productive anywhere. And give your laptop a little extra security on the road in a convenient, perfectly sized sleeve.
*Bundled peripherals may vary according to regions. Please check with local vendors for exact offers.
Files
Product Brochure
mmo_117915632_1729255784_1165_232316.pdf
PDF• 157.1 KB
User manual
mmo_117915632_1729255853_5235_3570117.pdf
PDF• 7.3 MB
