Description

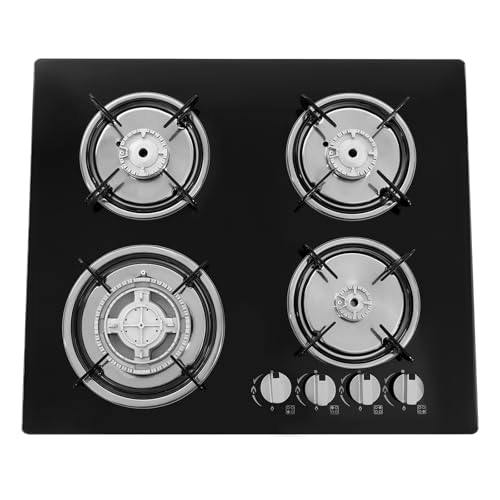

Do you want every meal to be a taste of home? Our 4-burner gas stove has efficient firepower and can evenly heat, making cooking simple and efficient. Flexible knob switches allow you to control the heat to meet the heat requirements of a variety of cooking, allowing you to handle a wide range of dishes with ease. Start your culinary journey with our products!
Details
Burnercaps: Covering them on the burners can prevent excessive release of gas and backfire, ensuring safe use.
Clear Illustrations: They allow you to intuitively know the location of the ignition.
Application
This product can be widely used in home kitchens, restaurants, hotels, homestays, schools, canteens, and other places.
Specification
Model: QB4Z55TCW
Material: Tempered Glass, Aluminum Alloy, Cast Iron
Process: Baking Paint, Enamel Coating
Color: Black
Style: Modern
Assembly Required: Yes
Mount Type: Built-in/Countertop
Ignition Type: Electronic Pulse Ignition
Battery Type: 1 * R20S D-size 1.5V Battery (Not Included)
Firepower Gear: Small-Large
Air Intake Method: Upward
Gas Type: NG/LPG
Number of Burners: 4
Rated Working Pressure: 2000Pa/2800Pa
Rated Combustion Power: A: 3.2KW, C: 1.75KW, D: 1.0KW
Heat Flow Rate: 4.5W
Max.Load Capacity: 20kg/44.09lbs
Tempered Glass Thickness: 8mm/0.31in
Gas Interface Inner Diameter: 9.5mm/0.37in
Cabinet Opening Size: 56*47cm/22.05*18.5in
Product Size: 59*51cm/23.23*20.08in
Package Size: 64*55*18.5cm/25.2*21.65*7.28in
Gross Weight: 7.8kg/17.2lbs
Net Weight: 6kg/13.23lbs
Package Included
1 * 4-Burner Gas Stove
4 * Nozzles
5 * Burnercaps
1 * English Manual
Other Accessories for Assembly
Notes
1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.The product does not include the battery required for ignition, you need to bring your own R20S D-size 1.5V battery.
3.This product is set to use natural gas at the factory. If you need to use LPG or propane gas, you can simply replace the nozzles in the package to achieve that.
4.This product does not include the gas pipe, please prepare it by yourself.
5.When using bottled LNG or LPG, please use a low-pressure valve (not included) and do not use a high-pressure valve, otherwise there may be danger.
6.Please ensure that the fireproof covers are in the correct position to prevent backfire.
7.Please avoid exposing the product to direct sunlight for a long time.
8.Please do not place freshly heated cookware directly on the tempered glass panel.
