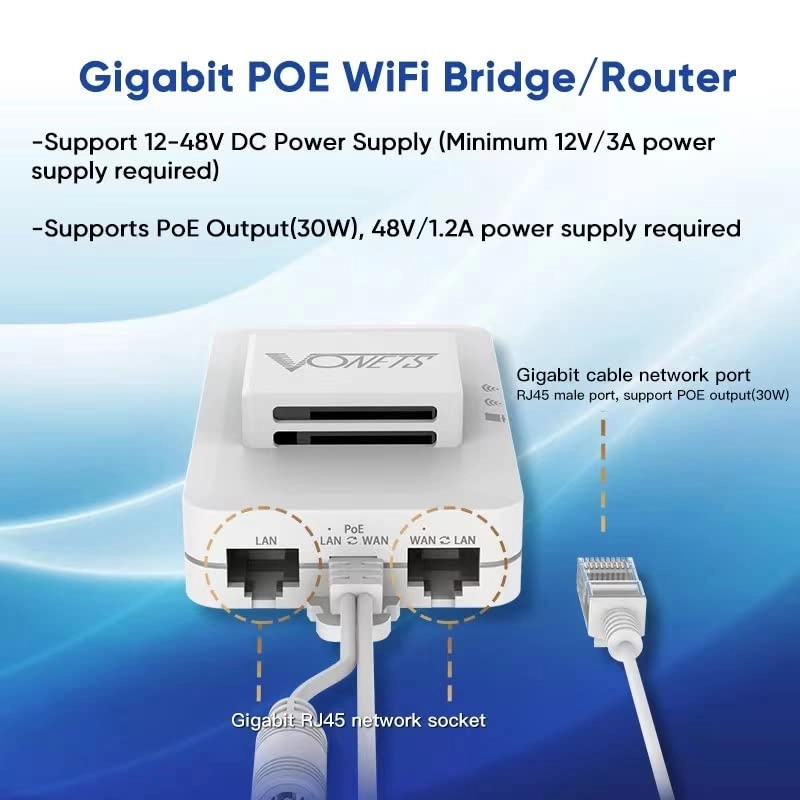

Shenzhen HouTian Network Communication Technology Co., Ltd. VAR1200-H

Features: 1. industrial mini 2.4GHz/5GHz dual band gigabit WiFi bridge/router (Ethernet to WiFi or WiFi to Ethernet). Power supply 12V/3A. 2. wide voltage range dc12v-48v, 2-stage automatic overvoltage protection 58V. 3. supports three gigabit RJ45 ports and also support POE power supply (48v power supply required). 4.The product built-in low noise amplifier (LNA) to enhance receiving sensitivity; the product built-in PA greatly enhances signal coverage 5. 4 high-power FEMs with built-in heat sinks and smart start & stop heat dissipation fans. Convection heat dissipation holes on both sides of the housing and the decoupled heat dissipation process ensure fast heat dissipation and stable operation. 6.Working Environment temperature is -40℃ to 55℃ 7.Support 802.11ac/a/g/b/n WiFi transmission protocol 8.Support connecting more than 20pcs WiFi terminal at the same time 9.Hotspot connection parameter import and export function 10.Adopt temperature compensated auto frequency control technology, WiFi signal is more stable and not easy to drop; Hardware Specification: Reset button: Long press 5 seconds then release(During operation, the product can not be powered down, otherwise it may cause damage to the product.) LED Status instruction: Ethernet port status light (Yellow); 2.4G WiFi connection status light (Blue); 5G WiFi connection status light (Green); Packages: 1* VAR1200-H 2* 3dBi 2.4GHz/5GHz external antennas 1* DC Industrial connector 1* fixing kit 8 Antenna gasket 1* English user manual Tips: 1.After configuration, if this device doesn't work with your camera or devices, please change the setting of "Transmission mode" to "MAC layer transparent";br> 2.If you want to use Huawei or iPhone as a hotspot for WiFi bridge, when you setting, please select "SSID and password match" in the "Advanced Setting" under the upper-level hotspot password.br>
