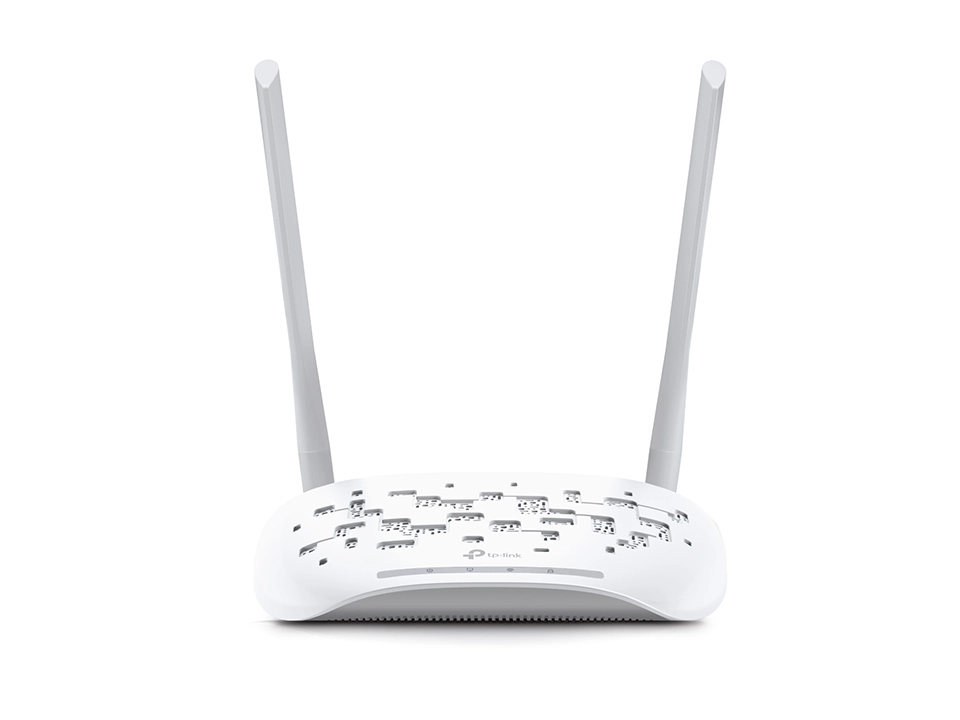

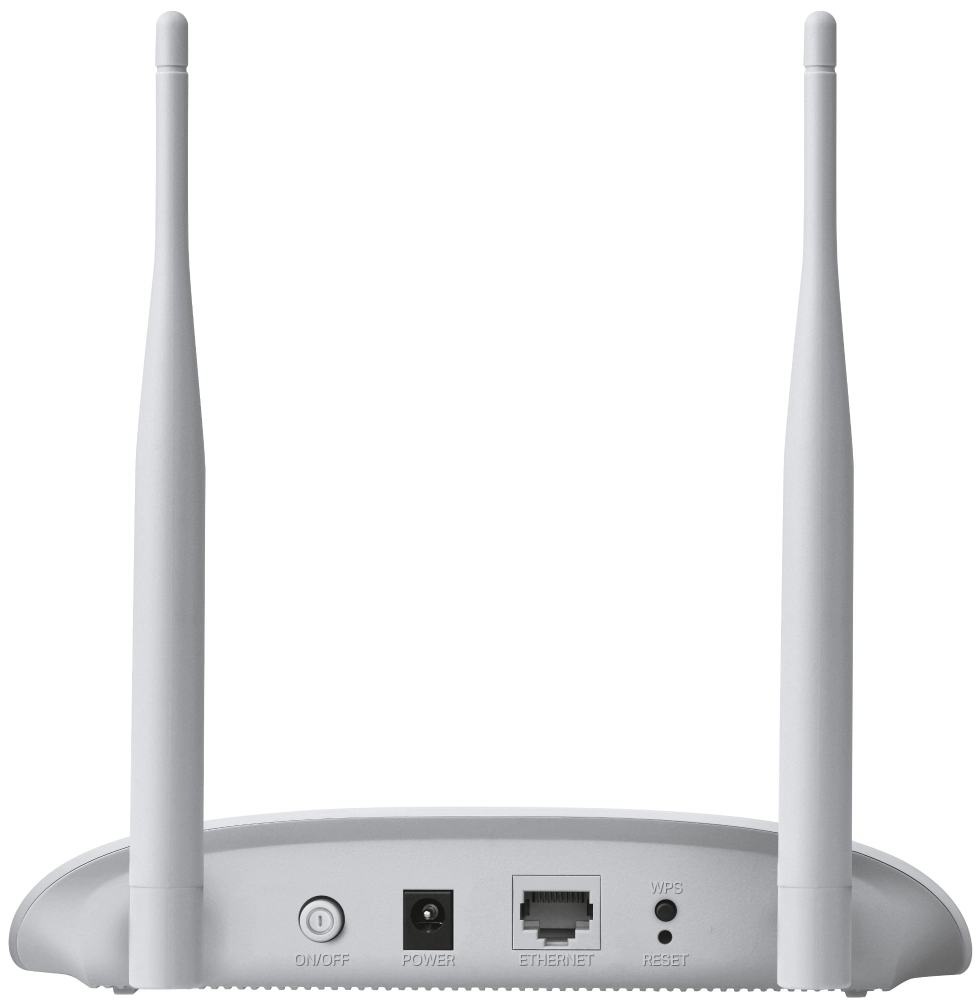

TP-Link TL-WA801ND

Best offer
AED
5300
AED
15999
-66%

Key Features

  • 2.4 GHz: Yes
  • 5 GHz: No
  • 6 GHz: No
  • Maximum data transfer rate (2.4 GHz): 300Mbit/s
  • Antenna features: Detachable antenna
  • Antenna direction type: Omni-directional
  • PoE adapter included: Yes
  • Service Set Identifier (SSID) features: Multiple SSIDs
  • Antenna gain level (max): 5dBi
  • Maximum data transfer rate: 300Mbit/s
  • Antenna connector type: RP-SMA
  • Placement: Floor, Table, Wall
  • Frequency band: 2.4 - 2.4835 GHzGHz
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Antenna type: External
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Antennas quantity
2
Quality of Service (QoS) support
✓
On/off switch
✓
Security algorithms
128-bit WEP, 152-bit WEP, 64-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Transmitting power (FCC)
20 dBm
Product colour
White
Antenna gain level (max)
5 dBi
Maximum data transfer rate
300 Mbit/s
Antenna connector type
RP-SMA
Placement
Floor, Table, Wall
Frequency band
2.4 - 2.4835 GHz
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
5 GHz
✗
6 GHz
✗
2.4 GHz
✓

Packaging data

Package weight
560 g
Package height
70 mm
Package depth
223 mm
Package width
310 mm

Weight & dimensions

Height
36mm, 36.20mm
Depth
125mm, 129.50mm
Width
181mm, 181.60mm

Management features

WPS push button
✓

Power

Output current
0.60 A
Output voltage
9 V
AC input voltage
9 V
Input current
0.6 A
Power over Ethernet (PoE)
✓

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)
✓

Design

Reset button
✓
LED indicators
Yes
Antenna direction type
Omni-directional

Computer system

Antenna type
External

Packaging content

Quick start guide
✓
Cables included
LAN (RJ-45)
AC adapter included
✓
PoE adapter included
✓

Network

Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management protocols
SNMP
Cabling technology
10/100Base-T(X)
Ethernet LAN data rates
10
Wireless isolation
✓

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
5 - 90 %

Technical details

Sustainability compliance
✓
Certification
CE, FCC, RoHS
Compliance certificates
Federal Communications Commission (FCC), RoHS

Security

MAC address filtering
✓
Auto Wireless Distribution System (WDS)
✓
Service Set Identifier (SSID) features
Multiple SSIDs

Camera

Maximum operating distance
30 m

Antenna

Antenna features
Detachable antenna

Receiver

Receiver sensitivity
270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER

Logistics data

Harmonized System (HS) code
85176990

Radar

Modulation
16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM

Product Details

What This Product Does The TP-LINK Wireless N Access Point TL-WA801ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network. The APs support a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use. Wireless N - Speed & Range Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not! Multiple Operating Modes - Easy to Build WLAN Supports multiple operation modes (Access Point, Multi-SSID, Client, Universal/ WDS Repeater, Bridge with AP) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their AP. Multiple operating mode also helps you easily to build wireless network for hard-to-wire locations or eliminating wireless dead zone. Passive PoE Supported - More Flexible Deployment The TL-WA801ND is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

Files

Product Brochure

mmo_79344164_1590403334_0894_13308.pdf

PDF• 1.4 MB

User manual

mmo_79344164_1590403344_1749_6878.pdf

PDF• 5.7 MB

Quick Installation Guide

mmo_79344164_1590403356_811_16229.pdf

PDF• 293.7 KB
