GWN7630LR
GWN7630LR
GWN7630LR
GWN7630LR
GWN7630LR
GWN7630LR

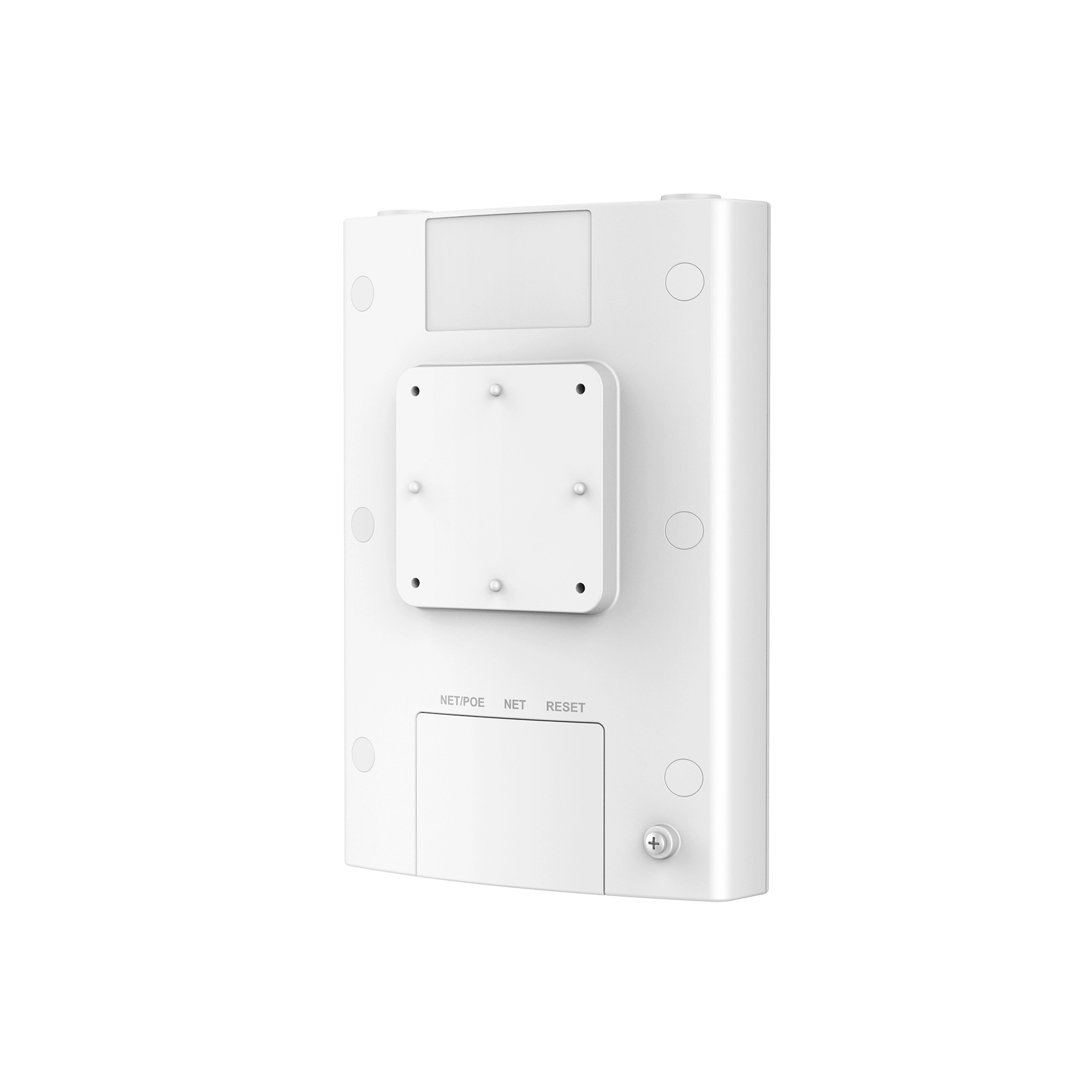

Grandstream Networks GWN7630LR

Best offer
AED
27000
AED
29800
-9%

Key Features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Maximum data transfer rate (2.4 GHz): 600Mbit/s
  • Maximum data transfer rate (5 GHz): 1733Mbit/s
  • Number of SSID supported: 15, 16
  • Antenna gain level (max): 3.5, 5dBi
  • Maximum data transfer rate: 1733, 2330Mbit/s
  • Channels quantity: 4channels
  • Placement: Ceiling, Wall
  • Frequency band: 2.412 - 2.484, 5.18 - 5.825 GHzGHz
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Antenna type: Internal
  • Channel bandwidth: 80MHz
  • MIMO type: Multi User MIMO
  • Ethernet LAN data rates: 10, 100Mbit/s
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Antennas quantity
4
Quality of Service (QoS) support
✓
Security algorithms
WEP, WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
Maximum outdoor range
175 m
MIMO
✓
Virtual LAN features
SSID-based VLAN assignment
Product colour
White
Antenna gain level (max)
3.50dBi, 5dBi
Maximum data transfer rate
1733Mbit/s, 2330Mbit/s
Channels quantity
4 channels
Placement
Ceiling, Wall
Frequency band
2.412 - 2.484, 5.18 - 5.825 GHz
Maximum data transfer rate (5 GHz)
1733 Mbit/s
Maximum data transfer rate (2.4 GHz)
600 Mbit/s
5 GHz
✓
2.4 GHz
✓

Packaging data

Package weight
930 g
Package height
86 mm
Package depth
247 mm
Package width
258 mm

Weight & dimensions

Weight
564g, 590g
Height
40mm, 45.90mm
Depth
115mm, 205.30mm
Width
205.30mm, 533.10mm

Power

Power consumption (max)
16.50 W
Power over Ethernet (PoE)
✓

Performance

Transmitting power
27 dBmW

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)
✓

Other features

Cable lock slot type
Kensington

Design

Reset button
✓
LED indicators
Status
Cable lock slot
✓

Computer system

Antenna type
Internal

Packaging content

Quick start guide
✓
Mounting kit
✓

Network

Bluetooth
✗
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Supported network protocols
802.11e/WMM, 802.1Q, 802.1p, 802.1x, IPv4, IPv6
VLAN support
✓
Channel bandwidth
80 MHz
MIMO type
Multi User MIMO
Ethernet LAN data rates
10, 100

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90 %

Technical details

Certification
CE, FCC, IC, RCM

Security

Number of SSID supported
15, 16

Receiver

Receiver sensitivity
-74dBm @54Mbps, -75dBm@54Mbps, -88dBm@11Mbps, 2.4G 802.11b: -96dBm@1Mbps, 802.11ac 20MHz: -67dBm@MCS8, 802.11ac 80MHz: -59dBm @MCS, 802.11ac: HT40:- 63dBm @MCS9, 802.11g: -93dBm @6Mbps, 802.11n 20MHz: -73dBm @MCS7, 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps

Logistics data

Harmonized System (HS) code
85176990

Product Details

The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 4×4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7630 is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

Files

Product Brochure

mmo_77773206_1614259949_658_43787.pdf

PDF• 662.7 KB

User manual

mmo_71572194_1562760333_7682_19043.pdf

PDF• 4.9 MB
