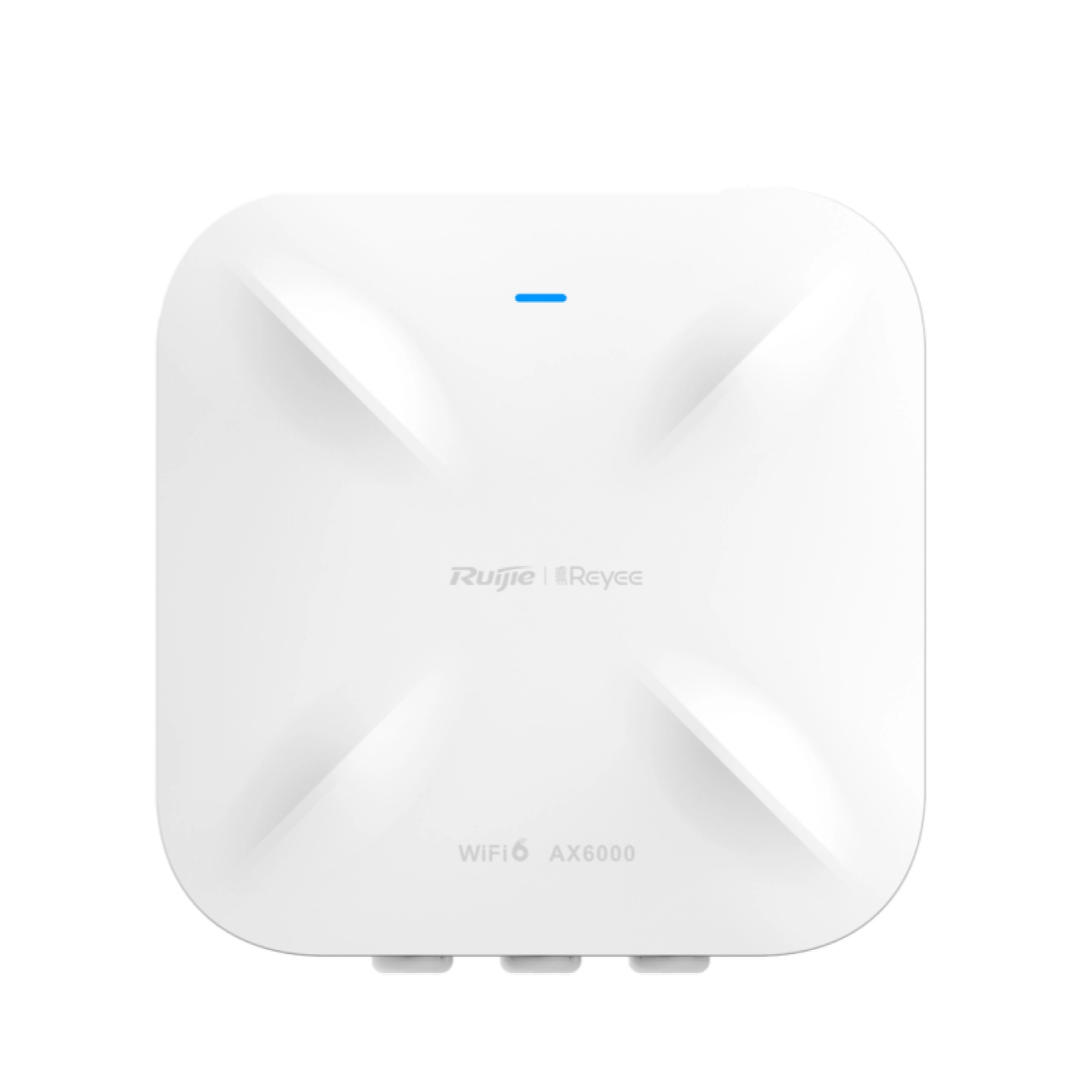

Ruijie Networks RG-RAP2260(E)

Best offer
AED
45000

Key Features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • 6 GHz: No
  • Maximum data transfer rate (2.4 GHz): 574, 575, 1148Mbit/s
  • Maximum data transfer rate (5 GHz): 1200, 1201, 4804Mbit/s
  • Antenna features: Integrated antenna
  • Number of SSID supported: 8
  • Antenna direction type: Omni-directional
  • Service Set Identifier (SSID) features: Hidden SSID, Multiple SSIDs
  • Antenna gain level (max): 3, 4, 6dBi
  • Maximum data transfer rate: 1201, 1775, 2970, 3202, 4804Mbit/s
  • DC voltage range: 48 VV
  • DHCP client: Yes
  • DHCP server: Yes
  • Placement: Ceiling, Floor, Pole, Wall
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Antennas quantity
2, 8
Supported protocols
802.11a/b/g/n, 802.11ac wave2/wave1, Concurrent 802.11ax
Number of WLAN connections (max)
512
BeamForming
✓
Security algorithms
WMM, WPA, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
MIMO
✓
Product colour
White
Antenna gain level (max)
3dBi, 4dBi, 6dBi
Maximum data transfer rate
1201Mbit/s, 1775Mbit/s, 2970Mbit/s, 3202Mbit/s, 4804Mbit/s
DC voltage range
48 V
DHCP client
✓
DHCP server
✓
Placement
Ceiling, Floor, Pole, Wall
Throughput data rate
1775Mbit/s, 2970Mbit/s, 3202Mbit/s
Frequency band
2.4 - 5 GHz, 2.4 - 5.35 GHz
Maximum data transfer rate (5 GHz)
1200Mbit/s, 1201Mbit/s, 4804Mbit/s
Maximum data transfer rate (2.4 GHz)
574Mbit/s, 575Mbit/s, 1148Mbit/s
5 GHz
✓
6 GHz
✗
2.4 GHz
✓

Packaging data

Package weight
1790 g
Package height
81 mm
Package depth
277 mm
Package width
292 mm

Weight & dimensions

Weight
560g, 650g, 1050g, 1350g, 1800g
Height
35mm, 45.10mm, 49.50mm, 75.50mm, 194mm, 298mm
Depth
35mm, 65mm, 194mm, 220mm, 230mm, 300mm
Width
194mm, 220mm, 230mm, 298mm, 300mm

Management features

Web-based management
✓

Power

Output current
1 A
AC input voltage
12 V
Power consumption (typical)
15.30W, 18W, 25.40W, 40W
Input current
1.5 A, 2 A
Power consumption (max)
17 W
Power over Ethernet (PoE)
✓

Performance

Wi-Fi roaming
✓

Design

International Protection (IP) code
IP68
Reset button
✓
LED indicators
Power, Yes
Antenna direction type
Omni-directional

Computer system

Antenna type
External, Internal

Network

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3bt
Supported network protocols
Concurrent 802.11a/b/g/n/ac/ax
Blacklist
✓
VLAN support
✓
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN data rates
10, 100, 1000
Wireless isolation
✓
MIMO type
Multi User MIMO

Ports & interfaces

DC-in jack
✓
Ethernet LAN (RJ-45) ports
1, 2

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
[object Object],[object Object]
Storage relative humidity (H-H)
[object Object],[object Object]

Technical details

Spread spectrum method
OFDMA
Compliance certificates
CE, RoHS

Security

Whitelist
✓
Service Set Identifier (SSID) features
Hidden SSID, Multiple SSIDs
Number of SSID supported
8

Antenna

Antenna features
Integrated antenna

Radar

Modulation
1024-QAM, 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK

Product Details

RG-RAP6260(G) is one of the wireless products fully developed by Ruijie Reyee. The device supports 802.3at PoE In power supply. With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, providing 574Mbps at 2.4G, and 1201Mbps at 5G. RG-RAP6260(G) applies for IP68 protection on the outer shell design, which is suitable in the outdoor environment and voids the influence from the extreme condition. The device meets the demanding requirements, such as able to perform under ultra-cold and humid weather. This reduces the difficulty of installation and maintenance. RG-RAP6260(G) supports Power over Ethernet remote mode, which is highly suitable for many scenarios such as education, government, medical, finance, business. Move Wi-Fi 6 to Outdoors RG-RAP6260(G) Compliant with the 802.11AX Wi-Fi 6 Standard Allow 100 Users Access Concurrently to Internet Outdoor Wireless Can Also be Faster AX1800 standard, 1200Mbps speed on 5GHz Even at Outdoors, the Wi-Fi Speed can also be better Support Extra-Distance Access Point Deployment With gigabit SFP port, the device supports up to 20km transmission from datacenter with single mode fiber No Worries About Harsh Environment Industrial-Level Design, More Reliable Signal Interference Filtered, Transmission More Stabilized Equipped with high quality FBAR filter, which can effectively suppress and filter the interference from carrier cell base station and Bluetooth devices etc. With high quality antenna, the receiving sensitivity is further optimized, thereby improves transmission quality. Layer 3 Roaming, Ensure Service Always Online With layer 3 networking, when a user accesses the Internet across the layer 3 network, the terminal can perform a fast and smooth roaming switchover, ensuring service continuity Self-Organizing Network Gets All Devices Online Easily Too many APs? Gateway, switch configuration too complex? Don't worry, SON can help you easily complete the whole network equipment setup. From Setup, Debug, Delivery, to Maintenance Whole Network Cloud Management

Files

Product Brochure

mmo_111491385_1684326970_9677_404.pdf

PDF• 3.7 MB

User manual

mmo_111491385_1684327349_4365_13168.pdf

PDF• 5.9 MB
