D-Link AC1200
Best offer
AED
13500
AED
14293
-5%
Key Features
- DSL WAN: No
- 3G/4G USB modem compatibility: No
- 3G: No
- 4G: No
- 5G: No
- Firewall: Yes
- WLAN data transfer rate (first band): 300Mbit/s
- WLAN data transfer rate (max): 867Mbit/s
- WLAN data transfer rate (second band): 866Mbit/s
- ADSL2+: Yes
- 4G LTE category: 8
- Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Guest access: Yes
- Antenna design: External
- Ethernet LAN interface type: Fast Ethernet, Gigabit Ethernet
Specifications
Features
Antennas quantity
4
Universal Plug and Play (UPnP)
✓
Plug and Play
✓
Quality of Service (QoS) support
✓
Frequency range
2.40 - 5 GHz
On/off switch
✓
Security algorithms
128-bit AES, 128-bit WEP, 64-bit WEP, WPA, WPA2, WPA3, WPS, WPS-PBC, WPS-PIN
Rack mounting
✗
MIMO
✓
MU-MIMO technology
✓
Product colour
Black
DHCP client
✓
Frequency band
2.4 & 5
Antenna gain level (max)
5 dBi
Product type
Portable router, Tabletop router
Packaging data
Package weight
783 g
Package height
55 mm
Package depth
356 mm
Package width
256 mm
Weight & dimensions
Weight
280 g
Height
145.30 mm
Depth
99 mm
Width
85.70 mm
Management features
Web-based management
✓
Number of data streams
2x2
WPS push button
✓
Web-based setup wizard
✓
Power
External power adapter
✓
Output current
1 A
Output voltage
12 V
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
2.5 A
Power over Ethernet (PoE)
✓
Power source type
DC
Performance
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
Wireless LAN features
VPN support
PPTP/L2TP/IPSec
Wi-Fi Multimedia (WMM)/(WME)
✓
Guest access
✓
WLAN data transfer rate (max)
867 Mbit/s
WLAN data transfer rate (second band)
866 Mbit/s
WLAN data transfer rate (first band)
300 Mbit/s
System requirements
Mac operating systems supported
Mac OS X 10.4 Tiger
Windows operating systems supported
Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Other features
Mac compatibility
✓
Browser supported
Chrome 48+, Firefox 44, Microsoft Edge 20.10240+, Microsoft Internet Explorer 10+, Opera 35, Safari 8
WLAN data transfer rates supported
300
Frequency range
2.4 - 5 GHz
xDSL connection
✓
Software
Firewall
✓
Design
Reset button
✓
LED indicators
LAN, Power, WAN, WLAN, Yes
Detachable antenna(s)
✓
Indication light
✓
Packaging content
Quick start guide
✓
Cables included
LAN (RJ-45)
AC adapter included
✓
Antenna included
✓
Network
4G bands supported
1800, 2100, 2300, 700, 800, 900
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Supported network protocols
IPv6
3G standards
UMTS
2G standards
GPRS, GSM
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Cabling technology
10/100/1000Base-T(X), 10/100Base-T(X)
Ethernet LAN data rates
10, 100
4G standard
LTE-TDD & LTE-FDD
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN
✓
URL filtering
✓
Mobile network generation
4G
Mobile network connection
✗
SIM card slot
✗
Downstream data rate
24 Mbit/s
Upstream data rate
1 Mbit/s
GSM bands supported
1800, 850, 900
Automatic channel selection
✓
UMTS bands supported
900
Ethernet LAN interface type
Fast Ethernet, Gigabit Ethernet
Ports & interfaces
DC-in jack
✓
Ethernet LAN (RJ-45) ports
4
RJ-11 ports quantity
1
USB port
✗
USB ports quantity
1
Ethernet WAN
✓
USB 2.0 ports quantity
1
USB version
2.0
DSL features
ADSL2+
✓
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
5 - 95 %
Technical details
Sustainability compliance
✓
Certification
CE, D-Link Green, FCC, FCC
IC
Wi-Fi
CE, RoHS, WHQL
Pallet gross weight (sea)
333500 g
Pallet height (sea)
2020 mm
Pallet gross weight (air)
333500 g
Pallet height (air)
2020 mm
Compliance certificates
CE, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), PTCRB, RoHS
Security
Stateful Packet Inspection (SPI)
✓
MAC address filtering
✓
Network address translation (NAT)
✓
Antenna
Antenna design
External
Mobile network
Dual SIM support
✗
4G LTE category
8
5G
✗
3G
✗
4G
✗
Logistics data
Harmonized System (HS) code
85176990
Pallet gross width
1100 mm
Shipping (inner) case gross weight
8750 g
Shipping (inner) case net weight
4400 g
Pallet gross length
1200 mm
Shipping (inner) case height
315 mm
Shipping (inner) case length
534 mm
Shipping (inner) case width
377 mm
WAN connection
WAN connection type
RJ-45
3G/4G USB modem compatibility
✗
DSL WAN
✗
Product Details
Easy‑to‑use, better Internet
With auto‑intelligence and parental controls, you can keep your house securely connected so you can enjoy reliable, fast and efficient Internet coverage throughout your home or office.

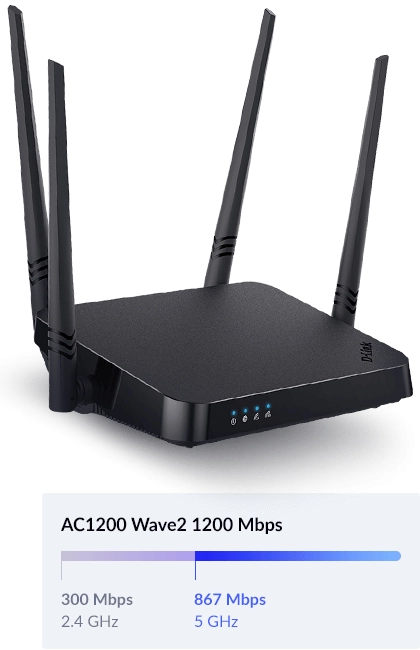

AC1200 Wave 2
Combined wireless speeds of up to 1,200 Mbps
Dual-Band with MU-MIMO
Connect more devices at the same time, with less congestion
Gigabit Ethernet
Gigabit connectivity to wired devices and broadband
Multiple Modes
Wi-Fi Router, Access Point, Repeater, WISP Repeater, or Wireless Client
Wi-Fi Protected Setup
Add devices to your network with the push of a button
WPA3 Security
The latest Wi-Fi security for more protection
Self-Optimising Wi-Fi
Periodically scans and selects the least congested channel to minimise interference
Easy Setup
Setup wizard to guide you through the configuration process
Simple and reliable Wi‑Fi.
The AC1200 Wi-Fi Gigabit Router maintains a strong network in your home so the whole family can stream movies, facetime or play online, without any hassle.
Get more out of your broadband.
Experience better strength signals and up to 1200Mbps1 speeds around your home. Browsing is snappier, buffering disappears, and online gaming is lag-free with the Wave 2 Wireless AC standard, giving you much faster and efficient Wi-Fi.
Dual‑Band Wireless for Seamless Performance.
Surf the web, chat and play online games on the 2.4 GHz band with your smartphones and computers, while simultaneously streaming digital media on the 5 GHz band on your streaming media players and tablets.
5 GHz
More bandwidth-intensive devices such as smart TVs/video streamers and games consoles.
2.4 GHz
Less bandwidth-intensive devices such as smart home devices and smart speakers.
Gigabit Ports for high‑speed data transfers.
With four Gigabit LAN ports, connect up to 4 wired devices for speeds up to 10x faster than standard Fast Ethernet connections. Now you can connect your critical devices with low-latency and reliable wired connections.
Secure & private.
Includes WPA3, the latest advanced Wi-Fi security standard available, which encrypts your traffic and protects your wireless network from outside threats. WPA3 also includes a new protocol to verify and secure your devices’ connections and your network from attacks.
Fits into Your Network.
The DIR-842V2 features multiple operation modes, allowing it to adapt to any situation:
Using it as a standard Wireless Access Point (AP) a wide range of wireless devices can connect to the DIR-842V2.
Repeater mode will extend current wireless coverage eliminating dead spots and weak signals. WISP mode functionality includes the ability to function as a client or repeater.
As a Wireless Client, it can connect to an existing AP and expand the network physically with the two built-in Ethernet ports.
Easy setup. Convenient controls.
Setup is quick and easy with the setup wizard. Follow the on-screen step-by-step instructions using your web browser to get everything up and running in no time.
Files
Product Brochure
mmo_28549656_1463379685_8544_13056.pdf
PDF• 326.7 KB
User manual
mmo_28549656_1463379855_3708_24866.pdf
PDF• 8.6 MB
EU Declaration of Conformity
mmo_87860591_1733386085_0107_1419300.pdf
PDF• 401.4 KB
Warranty & Safety information
mmo_87860591_1620810752_2852_31198.pdf
PDF• 527.5 KB
Quick Installation Guide
mmo_87860591_1626337114_1607_25818.pdf
PDF• 449.3 KB
Image of packaging
mmo_87860591_1733385878_3689_2590002.pdf
PDF• 5.5 MB
Quick Installation Guide
mmo_87955313_1660640142_0231_12920.pdf
PDF• 619.8 KB
Images
