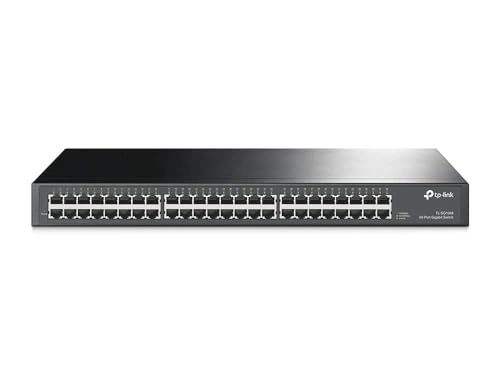

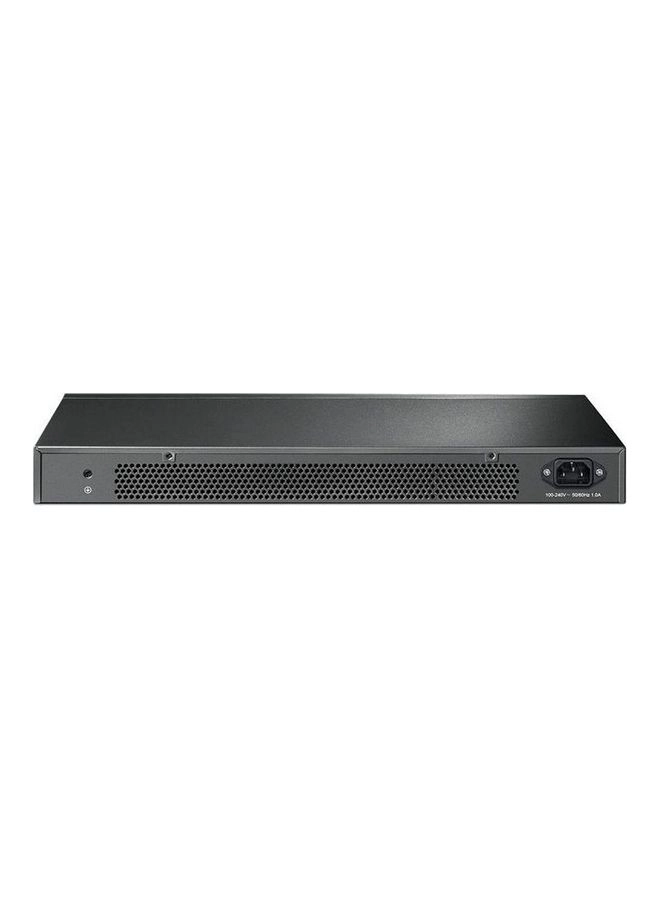

TP-Link TL-SG1048 48-ports

Product Description

48 Port Gigabit Switch

TL-SG1048

The TL-SG1048 48-Port Gigabit Switch is designed to meet the most demanding connectivity needs of workgroups and departments. As a reliable, easy-to-use switch without complex management, the TL-SG1048 offers 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unmatched performance, providing exceptional value for the cost-conscious network administrator who wants the best possible solution at the best possible price.

• 48 10/100/1000Mbps RJ45 ports
• Supports auto learning of MAC addresses and Auto-MDI/MDIX
• Standard 19" rack mountable steel enclosure

Ease of use

The automatic features of this Gigabit switch make installation hassle-free thanks to plug and play. No configuration is required. Auto-MDI/MDIX eliminates the need for crossover cables. Auto tuning on each port detects the connection speed of a network device (10, 100 or 1000Mbps) and intelligently adjusts to ensure compatibility and optimal performance. The compact chassis makes it ideal for the desktop with limited space, while it can also be conveniently and securely mounted on a rack. Dynamic LEDs provide status indicator and basic fault diagnosis in real time.

Excellent performance

The TL-SG1048 offers a non-blocking switching architecture at cable speed with 96Gbps switching capacity to achieve maximum data throughput. An 8k MAC address table allows scalability for the largest networks. It also supports 802.3X flow control for full duplex mode and backpressure for half-duplex mode, which alleviates data congestion and ensures secure data transfer.

• 100% data filtering rate eliminates all malicious packets
• Supports IEEE802.3x flow control for full duplex and backpressure for half duplex
• Non-blocking switching architecture forwards and filters packets at full network speed to achieve maximum throughput
• 96Gbps switching capacity
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Supports Port-N-Way auto tuning and store-and-forward
• Compact size design for desktops, rack-mountable
• Plug and play design simplifies installation

Which TP-LINK switch do you need? 48 Ports 24 Ports 16 Ports TL-SG1048 TL-SF1048 TL-SG1024 TL-SG1024D TL-SG1016 TL-SG1016D 48-Port Gigabit Switch 48-Port 10/100Mbps Rack Mount Switch 24-Port ggggggg-Rackmount Switch 24-Port Gigabit Desktop/Rack Mount Switch 16-Port Gigabit Rack Mount Switch 16-Port Gigabit Desktop/Rack Mount Switch DATA RATES 10/100/1000Mbps 10/100Mbps 10/100Mbps 10/100/1000Mbps 10/1000Mbps 10/10/1000Mbps 000/10000Mbps 10/100/1000Mbps 10/100/1000Mbps Dimensions (LxWxH) 440mm*360mm*44mm 440mm*260mm*44mm 440 * 180 * 44mm 294 * 180 * 44mm 440 * 36 mm 0 * 44 mm 294 x 180 x 44 mm Auto tuning √Energy saving: 50%, 40%, 40%, 40%, 40%, 40%

Set Contains:

1 x 48-Port Gigabit Rackmount Switch TL-SG1048 1 x Power Cord 1 x Installation Guide 1 x Rackmount Kits 1 x Rubber Feet
