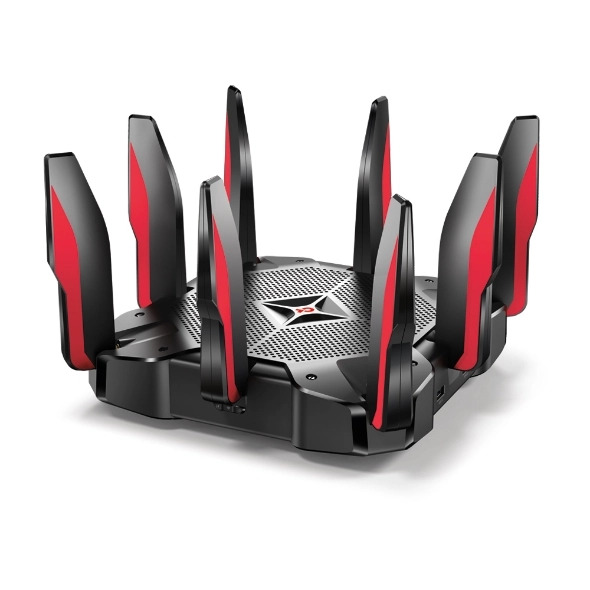

TP-Link Archer C5400

Key Features

  • DSL WAN: No
  • 3G/4G USB modem compatibility: No
  • 3G: No
  • 4G: No
  • Firewall: Yes
  • WLAN data transfer rate (first band): 2167Mbit/s
  • WLAN data transfer rate (max): 2167Mbit/s
  • WLAN data transfer rate (second band): 2167Mbit/s
  • WLAN data transfer rate (third band): 1000Mbit/s
  • Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
  • Guest access: Yes
  • Antenna design: External, Internal & external
  • Ethernet LAN interface type: Gigabit Ethernet
  • DHCP client: Yes
  • DHCP server: Yes

Specifications

Features

Antennas quantity
8
Universal Plug and Play (UPnP)
VoIP protocols
IPv4, IPv6
Processor frequency
1.40MHz, 1800MHz
Quality of Service (QoS) support
Number of WLAN connections (max)
5
On/off switch
Security algorithms
128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Product colour
Black, Red
DHCP client
DHCP server
Product type
Tabletop router
Port forwarding

Packaging data

Package type
Box

Weight & dimensions

Height
43mm, 55.30mm
Depth
230mm, 240.50mm
Width
230mm, 240.50mm

Management features

Web-based management
Firmware upgradeable
WPS push button

Power

Output current
5 A
Output voltage
12 V
AC input voltage
100 -240 V
AC input frequency
50 - 60 Hz
Power source type
AC, DC

Performance

Top Wi-Fi standard
Wi-Fi 5 (802.11ac)

Wireless LAN features

VPN support
IPSec, L2TP, PPTP
Guest access
WLAN data transfer rate (third band)
1000 Mbit/s
WLAN data transfer rate (max)
2167 Mbit/s
WLAN data transfer rate (second band)
2167 Mbit/s
WLAN data transfer rate (first band)
2167 Mbit/s

System requirements

Windows operating systems supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Other features

Filtering

Software

Firewall

Design

Reset button
LED indicators
Power
Transmit power
20 dBmW
Indication light

Computer system

Processor cores
2, 4
Built-in processor

Packaging content

Quick start guide
Manual
Cables included
LAN (RJ-45)
AC adapter included
Quick installation guide

Network

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols
IPv4, IPv6
Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Cabling technology
10/100/1000Base-T(X)
SIM card slot
Ethernet LAN data rates
10, 100
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN
Ethernet LAN interface type
Gigabit Ethernet

Ports & interfaces

DC-in jack
Memory card slot(s)
Ethernet LAN (RJ-45) ports
5, 8
USB port
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1, 2
Ethernet WAN

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
5 - 90 %

Technical details

Certification
CE, FCC, RoHS

Security

Stateful Packet Inspection (SPI)
IP address filtering
MAC address filtering
DMZ support
DoS attack prevention

Antenna

Antenna design
External, Internal & external

Receiver

Receiver sensitivity
11a 54Mbps: -76dBm 11ac VHT20_MCS0: -96dBm, 11ac VHT20_MCS11: -64dBm 11ac VHT40_MCS0: -93dBm, 11ac VHT40_MCS11: -61dBm 11ac VHT80_MCS0: -89dBm, 11ac VHT40_MCS11: -64dBm, 11ac VHT80_MCS11: -58dBm, 11g 54Mbps: -79dBm 11n HT20_MCS0: -98dBm, 11n HT20_MCS7: -77dBm 11ac VHT20_MCS11: -66dBm, 11n HT40_MCS0: -95dBm 11n HT40_MCS7: -75dBm, 2.4GHz: 11g 6Mbps: -97dBm, 5GHz: 11a 6Mbps: -94dBm

Mobile network

3G
4G

Logistics data

Harmonized System (HS) code
85176990

WAN connection

3G/4G USB modem compatibility
DSL WAN

Product Details

Faster Speed for More Devices Archer C5400 delivers combined Tri-Band Wi-Fi speeds to 5334Mbps, letting you dedicate an entire band to gaming without slowing down your network. Smart Connect helps devices run even faster by assigning them to the best available channel to balance network demand. NitroQAMTM and 4-Stream Support Maximum Wi-Fi Speed The Archer C5400 gets a performance boosts of up to 25%, thanks to NitroQAM™ (1024-QAM) and 4-Stream. These advanced technologies allow the router’s 2.4GHz band and both of its 5GHz bands to provide industry-leading speeds of up to 1000Mbps and 2167Mbps, respectively. With NitroQAM and 4-Stream, you can game at the highest settings without lagging. Innovative Technology Empowers Home Entertainment The router serves as a powerful entertainment hub for your home that is capable of supporting multiple simultaneous HD video streams, online gaming, and other online activities without slowing down. Superior range and coverage keeps your devices connected, near or far. Maximized Range and Efficiency Eight antennas with Beamforming technology detect the locations of your connected devices and concentrate wireless signal strength toward them. This makes all of your connections more efficient and stable, improving network performance, even in medium-sized offices and public cafes. Large File Sharing External hard drives can connect directly to the Archer C5400 via its USB 3.0 and 2.0 ports, making it easy to share large files, photos, music and video across your network. Smooth Gaming and Streaming To help your wired devices achieve peak performance for smooth gaming and streaming, the four Gigabit Ethernet ports operate 10x faster than standard Ethernet. Easy Setup and Use Set up the Archer C5400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether lets you manage network settings, including parental controls and media sharing preferences, from any Android or iOS device.
