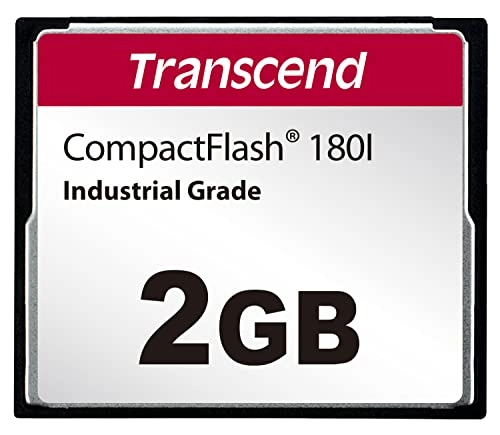

トランセンドジャパン CF180I - 2GB

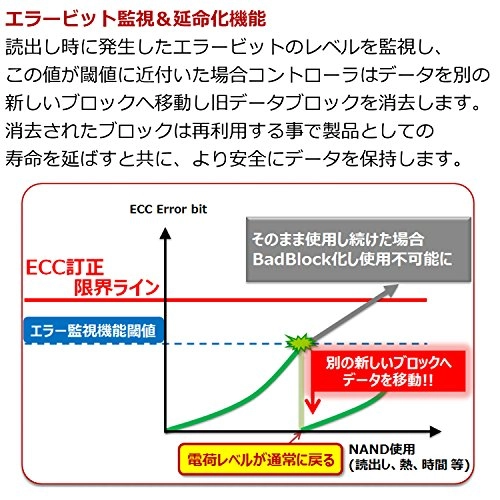

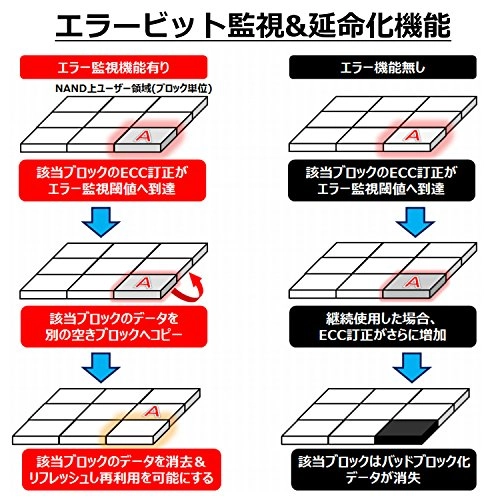

The CF180 and CF180I Transcend SLC Mode Technology is a cost-effective solution that delivers close to the performance of the SLC NAND flash at an affordable price. With a high-speed data transfer rate, the Transcend CF180 CompactFlash cards are ideal for integrated systems, medical instruments, road traffic monitoring systems and other industrial applications with high performance and capacity requirements. By using Static technology, the CF180 CF cards have error correction capability, data integrity and a longer service life. Transcend also offers CF180I CompactFlash cards with large temperature capacities (-40℃~85℃) to ensure lasting functionality, increased endurance and optimal reliability in critical applications. Firmware functions based on Ultra DMA 5 True IDE mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6 True IDE: hard drive (default). Supported operating modes: PC card memory mode, PC card IO mode, built-in True IDE mode, ECC (troubleshooting code), static function, data update and tracking. A.R.T. Health monitoring, analysis and reporting for storage devices; safety control units; RoHS compliant specifications; complies with CompactFlash 6.0 specification; MLC NAND and SLC flash mode (also SuperMLC) for exceptional endurance and reliability. Durability: 10,000 insert/removal cycles, protection against data loss during tracking. Power failure dden promised operational safety in a wide temperature range (from -40 C to 85 C) Features: Appearance dimension: 42.8 mm x 36.4 mm x 3.3 mm Number of pins 50 pin Compact form factor flash card type MLC NAND Flash (SLC mode) Capacity 128MB/2MB/25 6MB/5. 12MB/1GB/2GB/4GB/8GB Operating voltage: 3.3V ± 5V ± 10% Operating temperature: -25°C ~ 85°C
