Shenzhen BabySite Technology Co., Ltd. AS03

Mini surveillance camera - your smart security partner

Whether you want to capture the most beautiful moments of the family, keep an eye on children, protect your parents' health or take care of your pets on the go, the mini camera is the best choice.

Product advantages:

• HD Image Quality - 1080p HD image quality meets the requirements of cameras.
• Night Vision - The mini WiFi security camera is equipped with infrared night vision. It detects movements precisely even at night at several metres away.
• MOTION SENSOR - The camera has intelligent motion detection function. The integrated motion sensor sends a vibration alarm to your smartphone when activated by a movement.
• Cloud & TF Card Storage The camera supports cloud storage (APP enabled) and TF card storage (up to 128GB, not included).
• Two-way audio - convenient for communicating with people in the surveillance area.
• Remote Viewing - Indoor security cameras can connect to 2.4GHz WiFi, making video playback smoother.

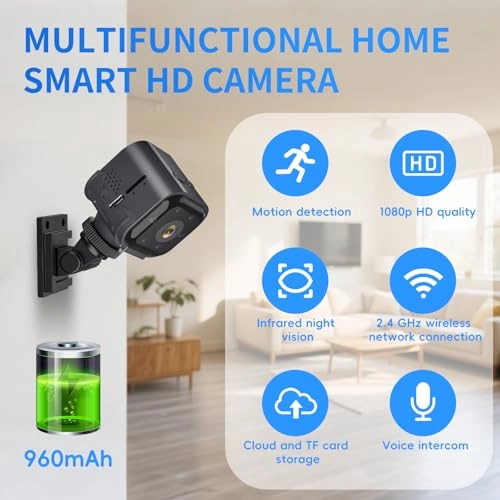

• LARGE BATTERY - The mini WiFi camera has a built-in high-quality 960mAh battery, which can be used continuously for about 6 to 8 hours on a single charge.

Product specifications:

• Model: AS03
• CPU: BK7252.
• Memory: 512 KB RAM.
• Flash: 4 MB
• TF card: 128GB (not included)
• Input: built-in microphone.
• Output: Speaker
• Main frequency: 180 MHz.
• Charging voltage: 5 V/1 A.
• Charging current: 420 mA.
• Power consumption: 1.5 W (infrared on) / 1.0 W (without infrared).
• Battery capacity: 960 mAh.
• Standby time: approx. 6 hours.
• Low power consumption: 1mA
• Standby time: 45 days.
• Infrared irradiation distance: 1-5 meters (best effect within 2 meters)
• Operating temperature and humidity: -10°C to 50°C, humidity below 95% (no condensation)
• Sensor chip: 0328C.
• Angle: flat angle.
• Day/night conversion mode: Manual/Timing
• Digital noise reduction: 2D digital noise reduction
• Video compression standard: MJPEG
• Audio compression standard: PCM
• Audio transmission: recording
• Power connector: Type-C interface
• Wi-Fi standard: 2.4GHz ~ 2.4835GHz
• Channel Bandwidth: Support 20MHz
• Wi-Fi encryption: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK.
• Hotspot connection distance: maximum 15-20 meters

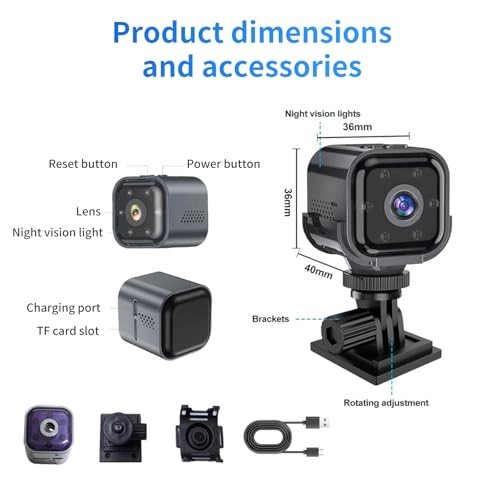

Package includes:

• 1 x Mini Security Camera (Camera Only)
• 1 x mounting kit (including bracket).
• 1 x charging cable (Type-C).
• 1 x user manual (multilingual).
