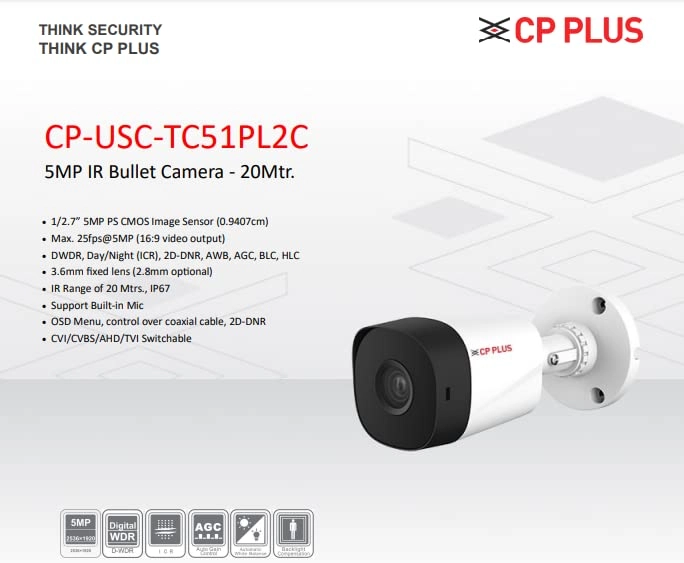

Aditya Infotech Ltd USC-TC51PL2C-0360

Image Sensor1/2.7” 5MP CMOS Image Sensor (0.9407cm) Minimum Illumination0.02 Lux/F2.0, 30IRE, 0 Lux IR on Shutter SpeedPAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s White BalanceAuto / Manual Gain Control (AGC)Auto / Manual ICRAuto (ICR)/Manual Max. ApertureF2.0 Lens3.6mm (2.8mm optional) Max ApertureF2.0 IrisFixed Lens TypeFixed lens/ Fixed Iris Close Focus Distance2.8 mm: 0.8 m ; 3.6 mm: 1.2 m Mount TypeM12 S/N RatioMore than 65dB Privacy MaskOff / On (8 area, rectangle) AudioBuilt-in Mic DORI Distance2.8mm: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify) 3.6mm: 80.0m (Detect) 32m(Observe) 16m(Recognize) 8m(Identify) Back Light CompensationBLC / HLC / DWDR Video StreamingCVI: PAL: 5MP AT 25fps; 4MP AT 25fps; 1080P AT 25fps; NTSC: 5MP AT 25fps; 4MP AT 30fps; 1080P AT 30fps; AHD: PAL: 4MP AT 25fps; NTSC: 4MP AT 30fps; TVI: PAL: 4MP AT 25fps; NTSC: 4MP AT 30fps; CVBS: 960H Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port Angle of View3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V) IRIR Range of 20 Mtr., Smart IR OSDMulti-language CasingPlastic Operating Temperature-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Power Source12V DC ±30% Power ConsumptionMax 3.7W (12V DC, IR on) Weatherproof StandardIP67 Dimension69.8 mm × 69.8 mm × 149.3 mm Weight0.15Kg
