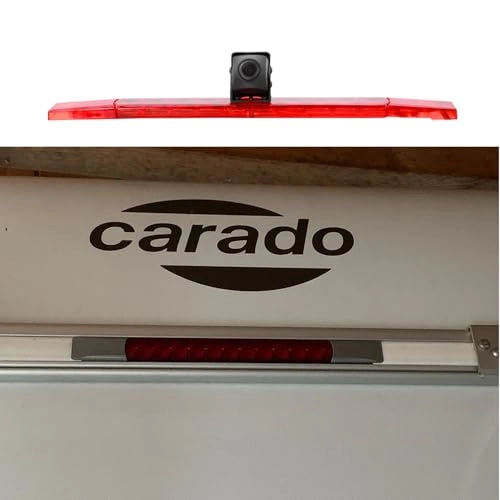

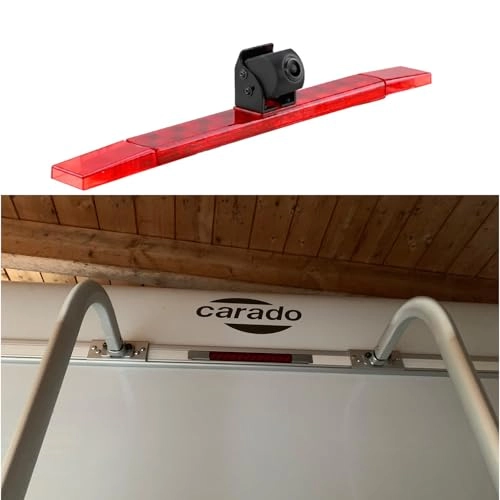

hongtawolo 2DA 343 106-201 - Night vision 1280 x 720 pixels

This product can fit all the following models:

Replacement for Fiat Ducato from 2024

Hella 2DA 343 106-201 Universal Car

Product parameters:

1. TV system: NTSC CVBS (if you want PAL, please email us, if your radio is 9 inches or larger, please email us, just leave a message AHD).

2. Resolution: 1000 TV lines.

3. Lens angle: 170 degrees.

4. S/N ratio: more 48 dB (AGC-OFF).

5. Video colour: night vision colour (night version).

6. Video output: CCIR/EIA(PAL/NTSC) 1.0Vp-p, 750hm.

7. Image device: 1/3 inch colour.

8. Sensing area: 5.961 mm x 4.276 mm.

9. Sync. System: internal

Voltage: DC 12 V.

11. White balance: Auto

12. Waterproof: IP67.

Effective pixels: 1280 x 720.

Electronic shutter: 1/60-1/15000 second.

Current consumption: ≤ 150 mA.

Current consumption: 90 mA max.

Operating temperature: -20 °C ~ +60 °C, RH 95% max.

Minimum illumination: 1.0Lux/F1.2.

Storage temperature: -30 °C ~ +80 °C, RH 95% max.

Top quality 1/3 inch colour sharp LCD, other sellers are cheap 1/4 inch colour CMOS LCD.

Package includes:

1 x rear view camera.

1 x power cable.

1 x 10 metre video cable.

1 x user manual.
