DS1823xs+ 8-Bay
DS1823xs+ 8-Bay
DS1823xs+ 8-Bay
DS1823xs+ 8-Bay
DS1823xs+ 8-Bay
DS1823xs+ 8-Bay
DS1823xs+ 8-Bay

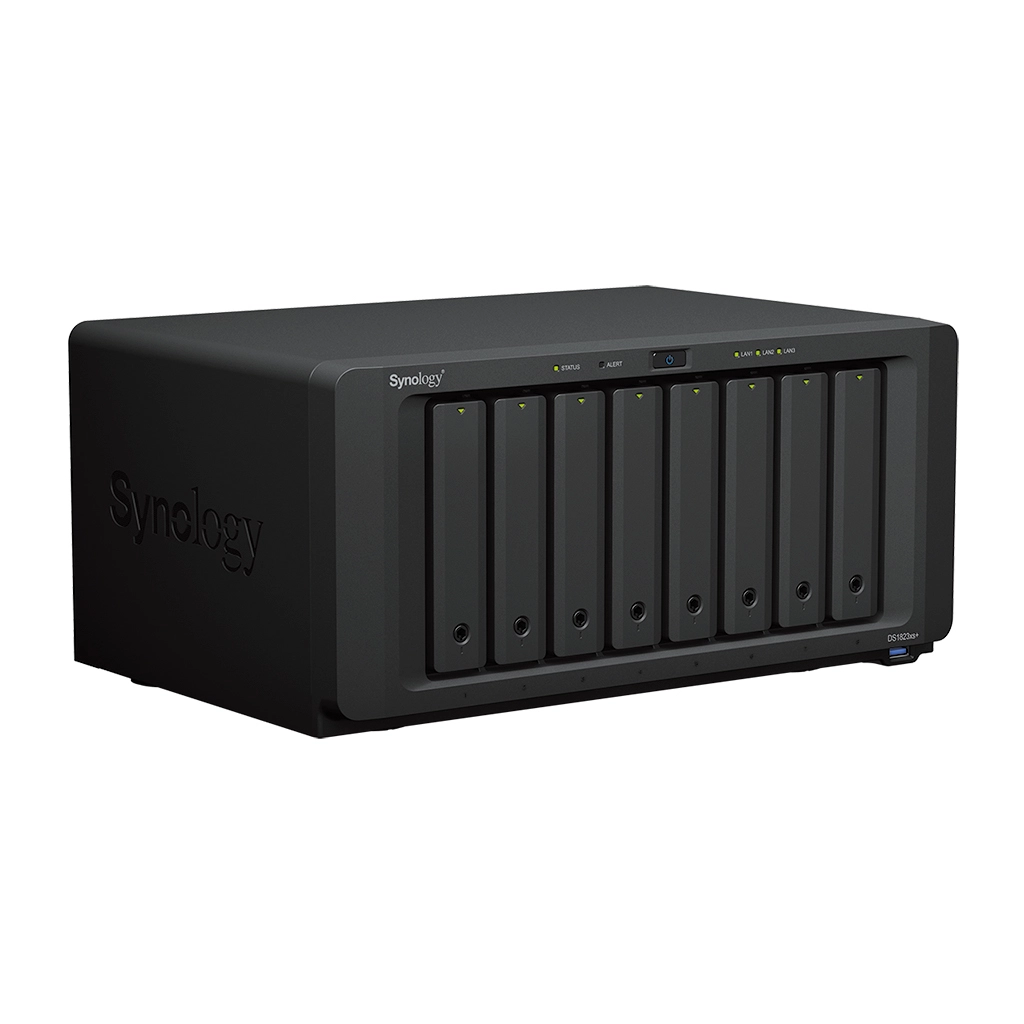

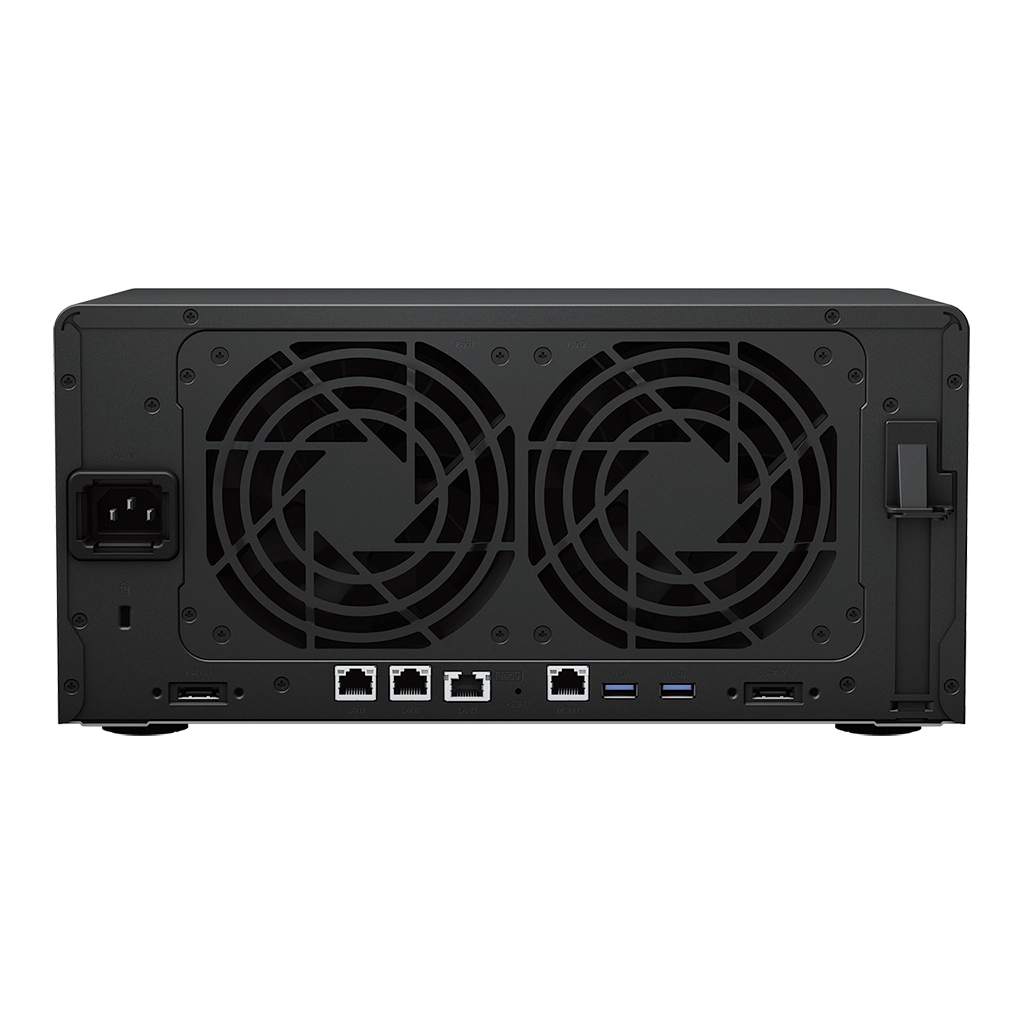

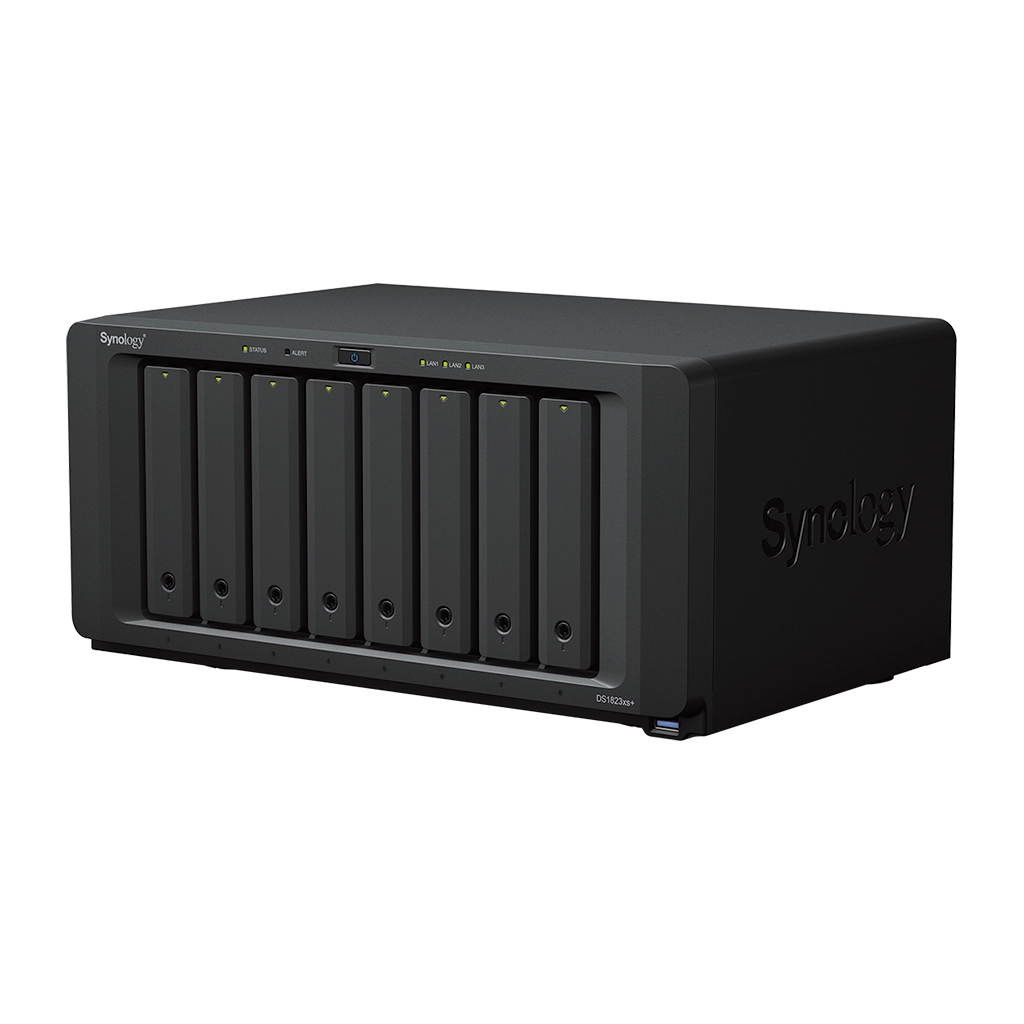

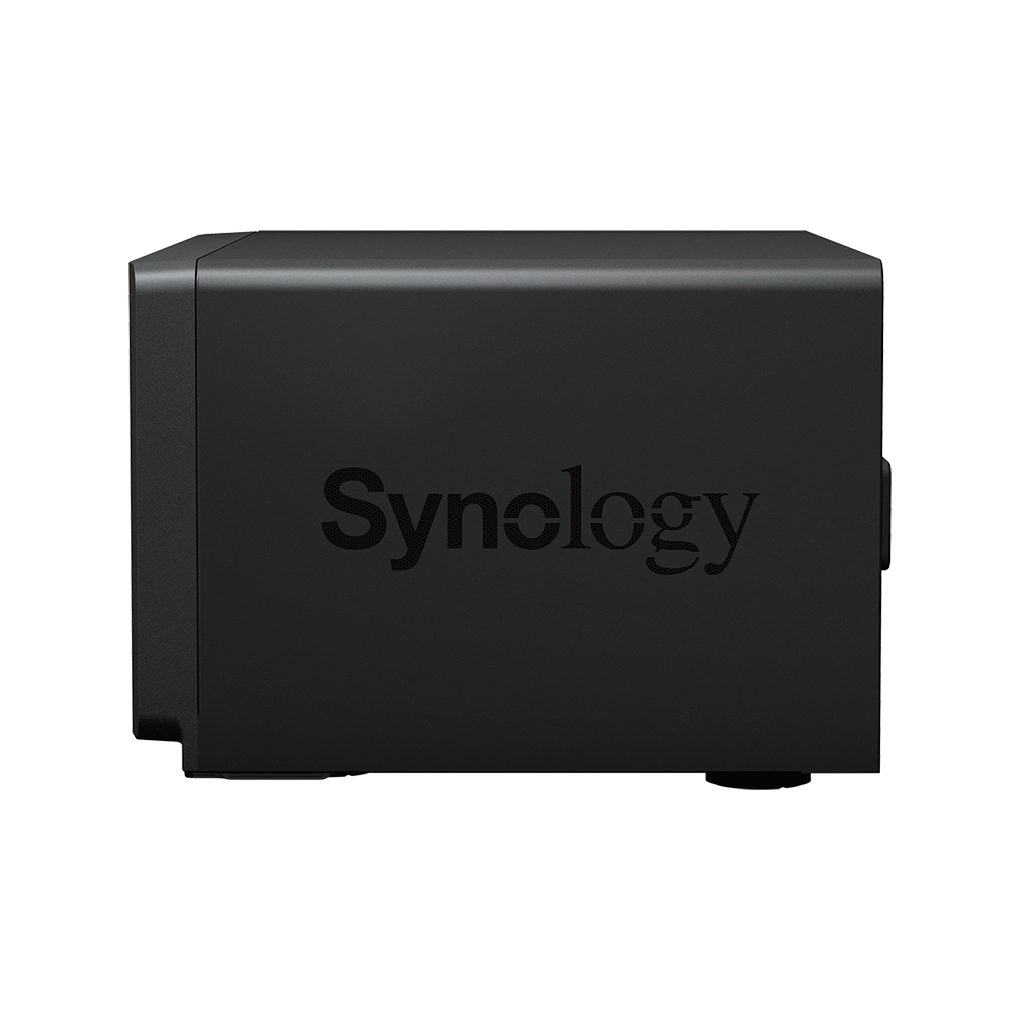

Synology DS1823xs+ 8-Bay

Best offer
AED
6 99000

Key Features

  • Storage drives installed: Yes
  • Number of M.2 (M & B) slots: 2
  • Total installed storage capacity: 96TB
  • Power consumption (HDD standby): 28.37W
  • Online RAID migration: Yes
  • Online RAID expansion: Yes
  • Power supply unit (PSU) capacity: 250W
  • Device class: Small & Medium Business
  • Backup features: Cloud, iSCSI LUN
  • Number of storage drives installed: 8
  • Installed storage drive type: HDD
  • Processor threads: 4
  • Hot-swap drive bays: Yes
  • Multilingual support: Yes
  • Supported storage drive interfaces: Serial ATA III
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Operating system installed
DiskStation Manager
Card reader integrated
✗
Backup function
✓
Fan diameter
120 mm
On/off switch
✓
Noise level
23.60 dB
Security algorithms
AES, HTTPS, SSH, SSL/TLS
Product colour
Black
Type
NAS
Access Control List (ACL)
✓
Multilingual support
✓
Installed storage drive type
HDD

Weight & dimensions

Height
166 mm
Depth
243 mm
Width
343 mm

Power

AC input voltage
100 - 240 V
Power consumption (typical)
87.93 W
Power supply location
Built-in
AC input frequency
50/60 Hz
Number of power supply units
1
Redundant power supply (RPS) support
✗
Power supply unit (PSU) capacity
250 W
Power consumption (HDD standby)
28.37 W

Performance

System log
✓
Hot spare
✓
Storage drive interface
Serial ATA III
Number of storage drives installed
8
Backup features
Cloud, iSCSI LUN
Total installed storage capacity
96 TB

System requirements

Server operating systems supported
Windows Server 2019

Other features

RAID controller type
Yes
Browser supported
Chrome, Edge, Firefox, Safari
Cable lock slot type
Kensington
Chassis type
Tower

Storage

Supported file systems
BTRFS, FAT, HFS, NTFS, exFAT, ext3, ext4
RAID levels
0, 1, 1+0, 5, 6, F1, JBOD
RAID support
✓
Supported storage drive types
HDD & SSD
Storage drive capacity
12000 GB
Number of storage drives supported
8
Storage drive sizes supported
2.5, 3.5, M.2
Supported storage drive interfaces
Serial ATA III
Hot-swap drive bays
✓
Online RAID expansion
✓
Online RAID migration
✓
Number of M.2 (M & B) slots
2
Storage drives installed
✓

Software

Operating system version
7.1.1

Design

Built-in display
✗
Reset button
✓
LED indicators
Yes
Cooling type
Active
Cable lock slot
✓
Drive bay locking
✓
Device class
Small & Medium Business

Computer system

Processor cores
4
Processor model
V1780B
Processor manufacturer
AMD
Processor frequency
3.35 GHz
Processor family
Ryzen Embedded
Internal memory
8 GB

Packaging content

Cables included
AC, LAN (RJ-45)
Power cables quantity
1

Network

Supported network protocols
CalDAV, FTP, Fibre Channel, HTTP, HTTPs, LDAP, NFS Kerberized sessions, NFSv3, NFSv4, NFSv4.1, SMB1 (CIFS), SMB2, SMB3, SNMP, iSCSI
Management protocols
SNMP
Ethernet LAN data rates
10, 100, 1000
iSCSI support
✓
Built-in FTP server
✓
Ethernet LAN
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T
Link aggregation
✓
Wake-on-LAN ready
✓

Ports & interfaces

Ethernet LAN (RJ-45) ports
4
USB port
✓
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Concurrent connections
2000
eSATA ports quantity
2

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95 %
Storage relative humidity (H-H)
5 - 95 %

Technical details

Compliance certificates
BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RCM, RoHS, VCCI

Processor

Processor generation
AMD Ryzen Embedded V1000 Series
Number of processors supported
1
Processor boost frequency
3.60 GHz
Processor threads
4

Memory

ECC
✓
Memory form factor
SO-DIMM
Internal memory type
DDR4
Maximum RAM supported
32 GB
Memory slots
2

Audio

Built-in speaker(s)
✗

Camera

Snapshot
✓

Expansion slots

PCI Express x8 (Gen 3.x) slots
1

Product Details

Flexible large-scale storage for small and medium-sized businesses Private data center on your desk The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide shared data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in settings where no dedicated server rack or data center is available. Desktop-sized powerhouse Over 3,100/2,600 MB/s seq. read/write,1 built-in 10GbE, and up to 144 TB raw storage2 before expansion. Flexible configuration Add up to 10 extra drive bays, 25GbE or Fibre Channel, and SSD cache volumes when needed.3 Versatile applications Back up 300 endpoints, manage 75 IP cameras,4 or safely sync and share files between devices and sites. Safe, dependable, and scalable Built-in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs+ dependable, easy to maintain, and cost efficient. Data integrity protection The Btrfs file system helps prevent data corruption or loss through metadata mirroring, file self-healing, and efficient point-in-time snapshots. ECC memory provides additional integrity safeguards. Efficient remote management Monitor, manage, and replace drives and storage online in Synology DSM. Remotely reboot, reset, or view logs while the system is down thanks to out-of-band management (OOB). Plug-and-play expansion The DS1823xs+ can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion. The performance you need Configure the DS1823xs+ to handle any workload. Easily add 1/10/25GbE or Fibre Channel ports and designate NVMe or SATA SSD volumes as read/write cache to boost HDD performance. Store, share, and protect Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance. Flexible file server Use the DS1823xs+ as a central file repository and data sharing hub. Provide easy access to business data from PCs, phones, and other devices, and set up powerful cross-site syncing to empower collaboration between offices or branches. Private cloud A private cloud suite for file sharing Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console. Dependable and secure network storage Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes and removal or even malware attacks with built-in snapshot technology and other backup options. A private cloud suite for file sharing Empower your entire organization with a streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track file share settings changes with detailed records in the Synology Drive Admin Console. Dependable and secure network storage Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes and removal or even malware attacks with built-in snapshot technology and other backup options. Cross-site syncing Secure site-to site file and folder syncing Make sure branches always have up-to-date copies of crucial documents and data available locally by syncing Synology systems one or two-way using Synology Drive ShareSync. Have files updated across locations each time there is a change to efficiently keep all stakeholders on the same page. Learn more Efficient cross-site syncing through the cloud Boost syncing speeds, cut bandwidth use, and reduce your storage footprint by leveraging the powerful connectivity of our data centers. Synology Hybrid Share intelligently synchronizes data to Synology devices.9 Large or less frequently accessed files are stored on the cloud to reduce local storage requirements, while frequently used files are stored on local devices to provide users access at LAN speeds. Backup repository Back up files, folders, physical devices, VMs, and SaaS applications with free solutions, and protect your NAS with built-in technologies. Centralize your backup and recovery solution Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in remote backup solutions designed to protect your data with seamless 3-2-1 backup configurations. Perform full system backups with Synology Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups to local and remote servers, external drives, or cloud storage destinations including Synology C2 Storage. Protect folders and LUNs with snapshots Configure efficient point-in-time snapshots of shared folders and LUNs at intervals as short as 5 minutes. Allow users to easily restore previous versions of files unassisted, quickly recover VMs, and copy snapshots to another server to benefit from rapid storage failover.

Files

User manual

mmo_109259369_1724420905_3152_504931.pdf

PDF• 26.5 MB

Product Brochure

mmo_109259369_1724420905_3503_504931.pdf

PDF• 1.5 MB
