Function Features:
1. Support bridge router and repeater mode;
2. In router mode, support WiFi WAN access;
3. In router mode, supports WAN/LAN switching of wired network ports;
4. Support WiFi smart bridge repeater, can achieve WiFi to wired, wired to WiFi function;
5. Supports 802.11a/AC/n/B/g transmission protocol;
6. Support WiFi hotspot automatic reconnection, two hotspot matching methods: Full match authentication mode, SSID and password authentication mode;
7. WiFi hotspot memory, maximum memory 100 hotspots;
8. Support connecting more than 20 pieces WiFi terminals at the same time;
9. Support SSA protocol, built-in hot spot signal strength detection and reporting function to realize WiFi mobile positioning;
10. Support Hotspot force disable, WiFi hardware force disable;
11. Hotspot connection parameters import and export function;
12. Adopt VDNS virtual domain configuration technology to solve user configuration problems;
13. Support WEB management, Chinese and English configuration interface;
14. Support online update;
15. Support IP layer transparent transmission and MAC layer transparent transmission, two bridging modes to meet various bridging applications:
IP layer transparent transmission (factory default), IP layer data transparent transmission, can meet most bridge applications;
MAC layer transparent transmission, all data above the MAC layer (link layer) and MAC layer, including IP layer data; MAC transparent transmission can solve some special applications for MAC layer encryption, such as GoPro camera, Cisco AP, Hikvision monitoring, system, etc.
Hardware features:
1. Support wide voltage power supply, two-stage automatic protection overvoltage (upper limit of protection voltage 15.5V);
2. The output power of the power supply is not less than 10W (typical power supply 5V/2A, ripple less than 100mV);
3. Module power supply: 1.3W -- 3.75W;
4. Working WiFi band: 2.4G + 5G;
5. WiFi transmission speed: 300Mbps(2.4G)+ 900Mbps(5G), Theoretical value;
6. RF power: 2.4G is 15dBm/16.5dBm optional, 5G is 19dBm/23dBm optional;
7. Transmission distance (5G without obstacles): Point-to-point transmission distance: maximum can be up to 300 meters when there are no obstacles and small data (by 802.11a), 20 to 100 meters when used for transmission of video ;
8. Built-in LNA module, receiving sensitivity is 14dB;
9. Standard Package External Antenna: 2*3dBi 2.4G Antenna, 2*3dBi 5G Antenna;
10. Adopts automatic frequency control with temperature compensation technology, the WiFi signal is more stable and not easy to drop;
11. The aluminum alloy casing has good heat dissipation characteristics, which can quickly dissipate the heat generated when the device is working;
12. Working environment temperature: -20 ℃ to 50 ℃.
13. Metal shell product, the aluminum alloy shell has good heat dissipation characteristics and quickly conducts the heat generated by the chip to the metal shell, ensuring that the internal chip works more stably! At this time, the metal casing will generate heat, but there is no need to worry too much about the temperature of the casing. After many tests, the product can work normally.
14. Reset button: Press and hold for 5 seconds and then release, the device will automatically restore factory settings (during operation, the product cannot be turned off, otherwise it may cause damage to the product).
LED STATUS indication:
Ethernet port status light (yellow);
2.4G WiFi connection status light (blue);
5G WiFi connection status light (green);
package:

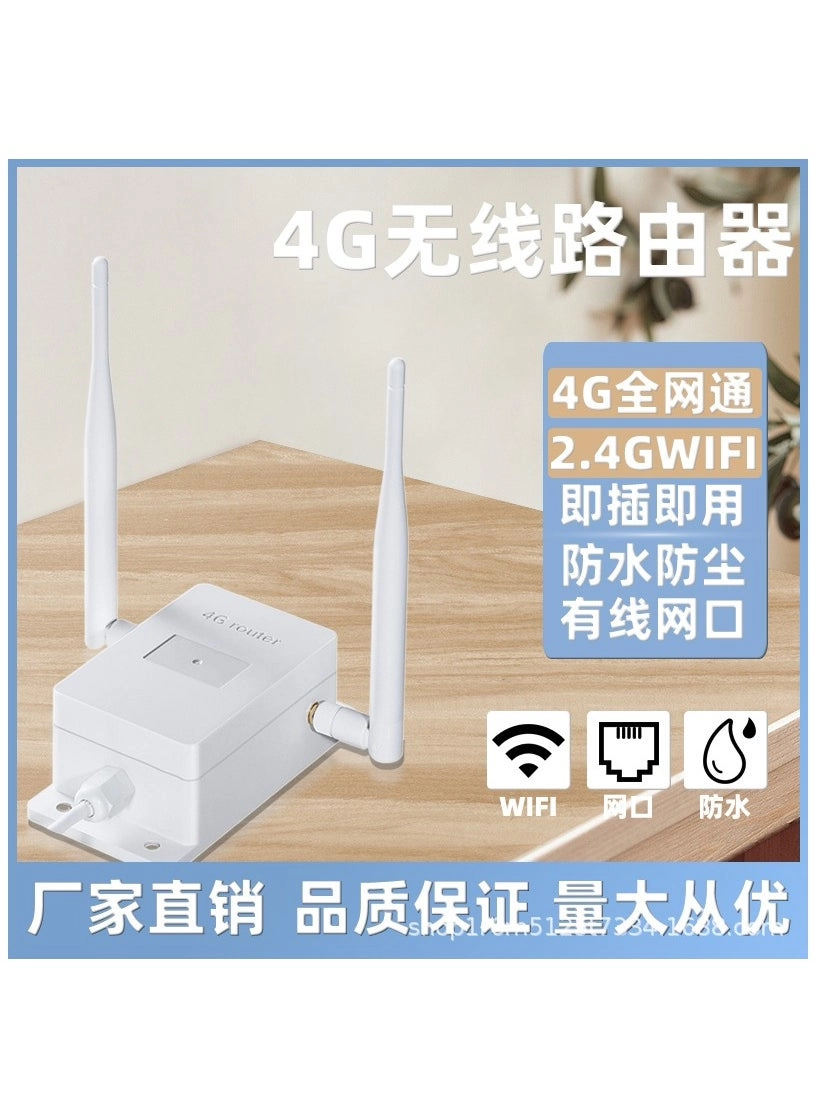

1 * 4G/3G router
