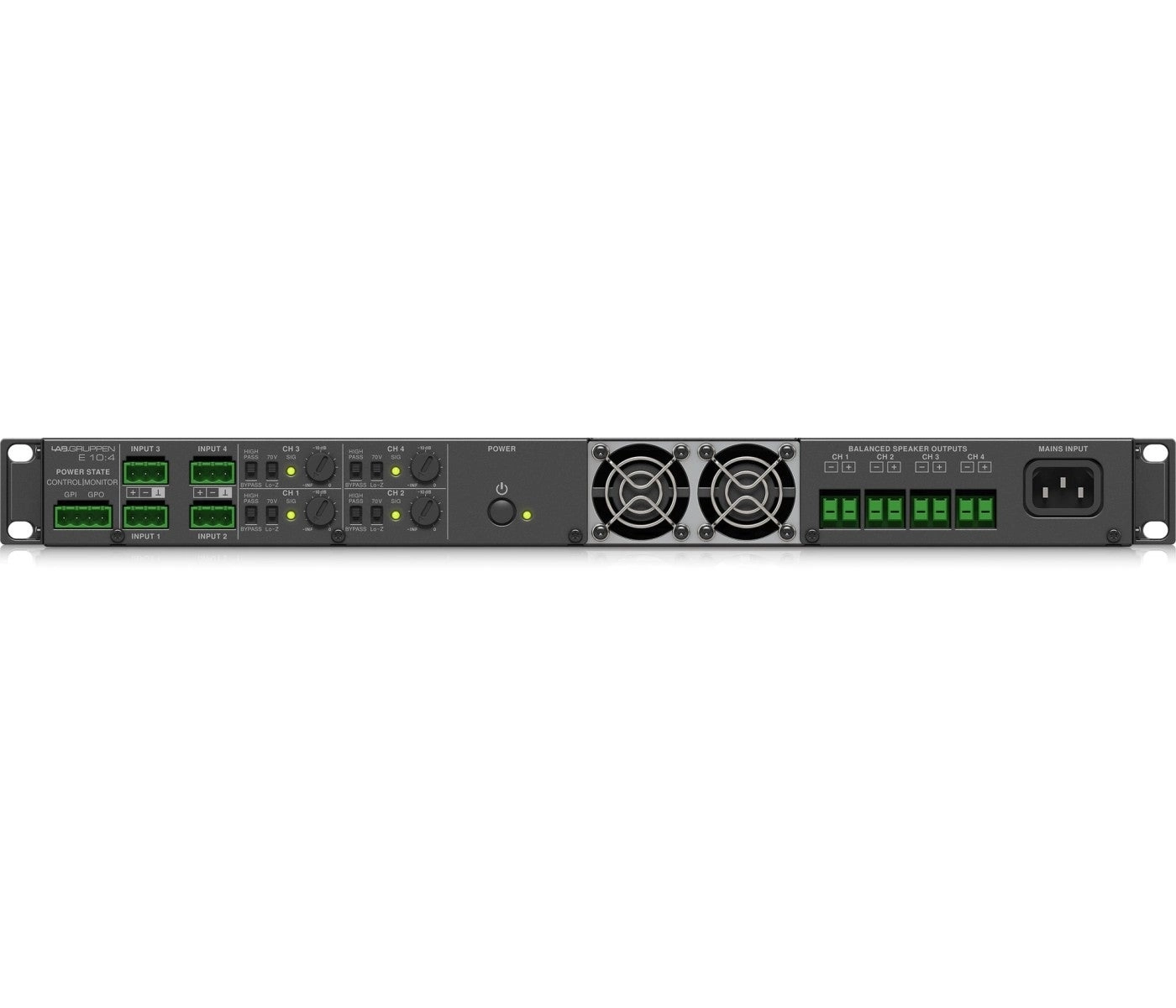

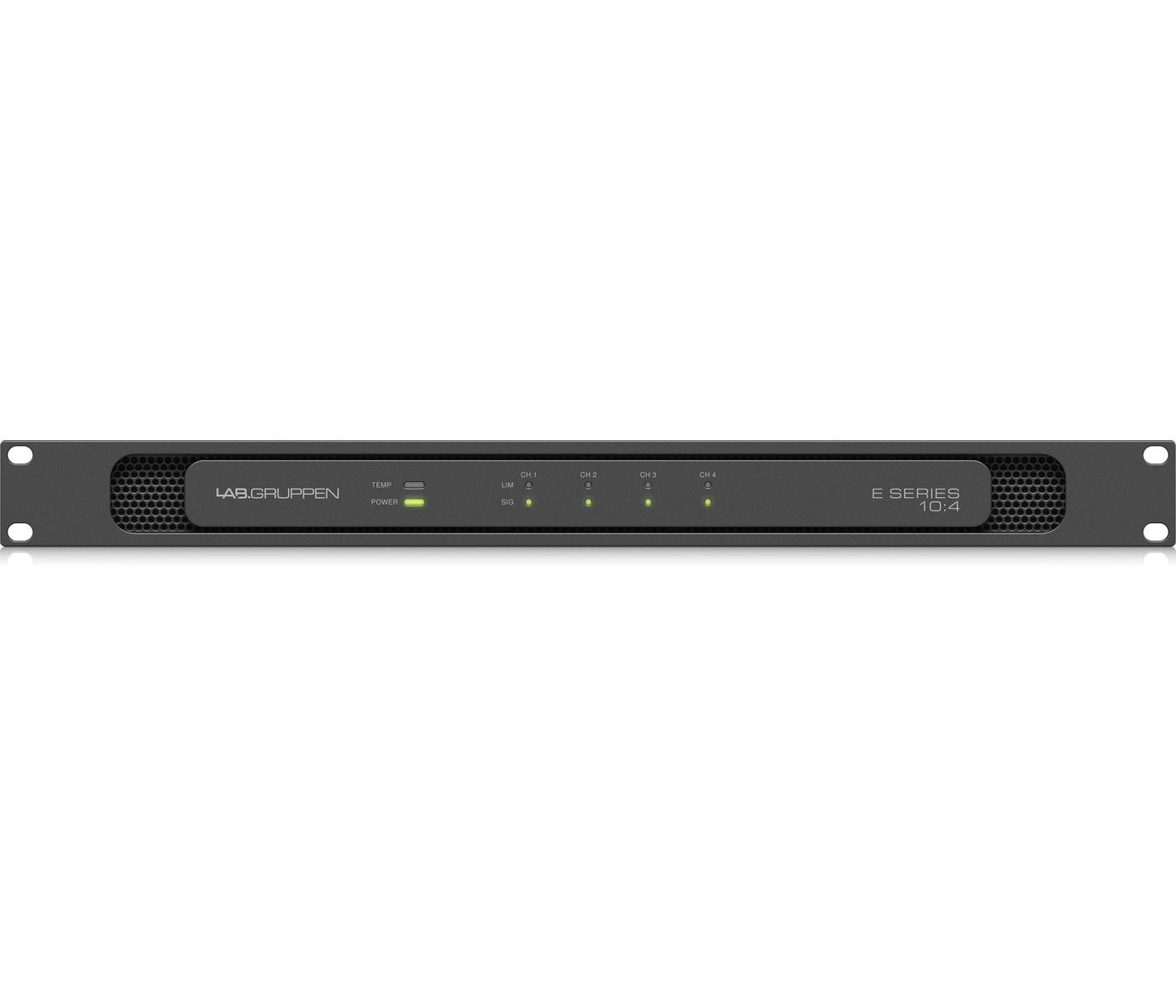

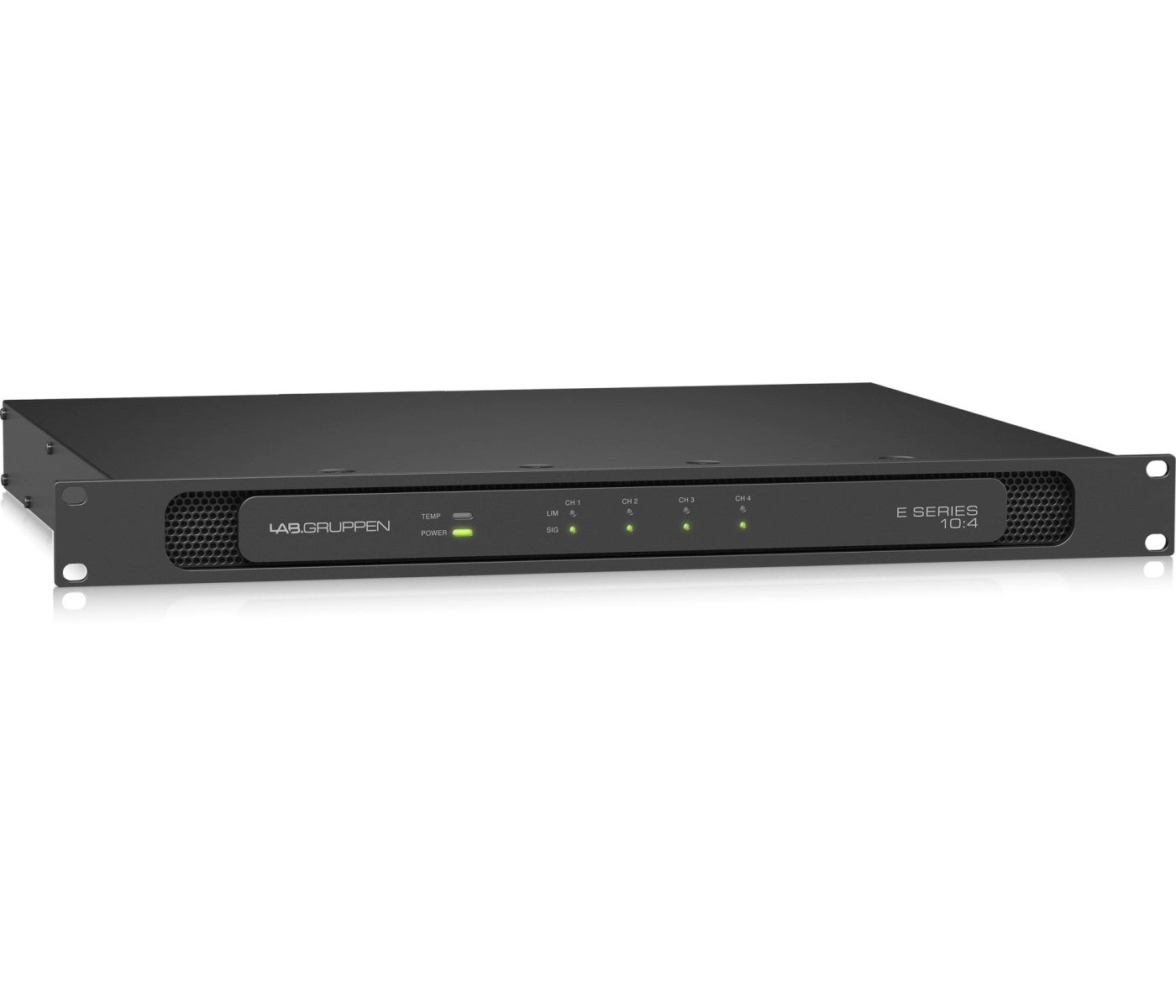

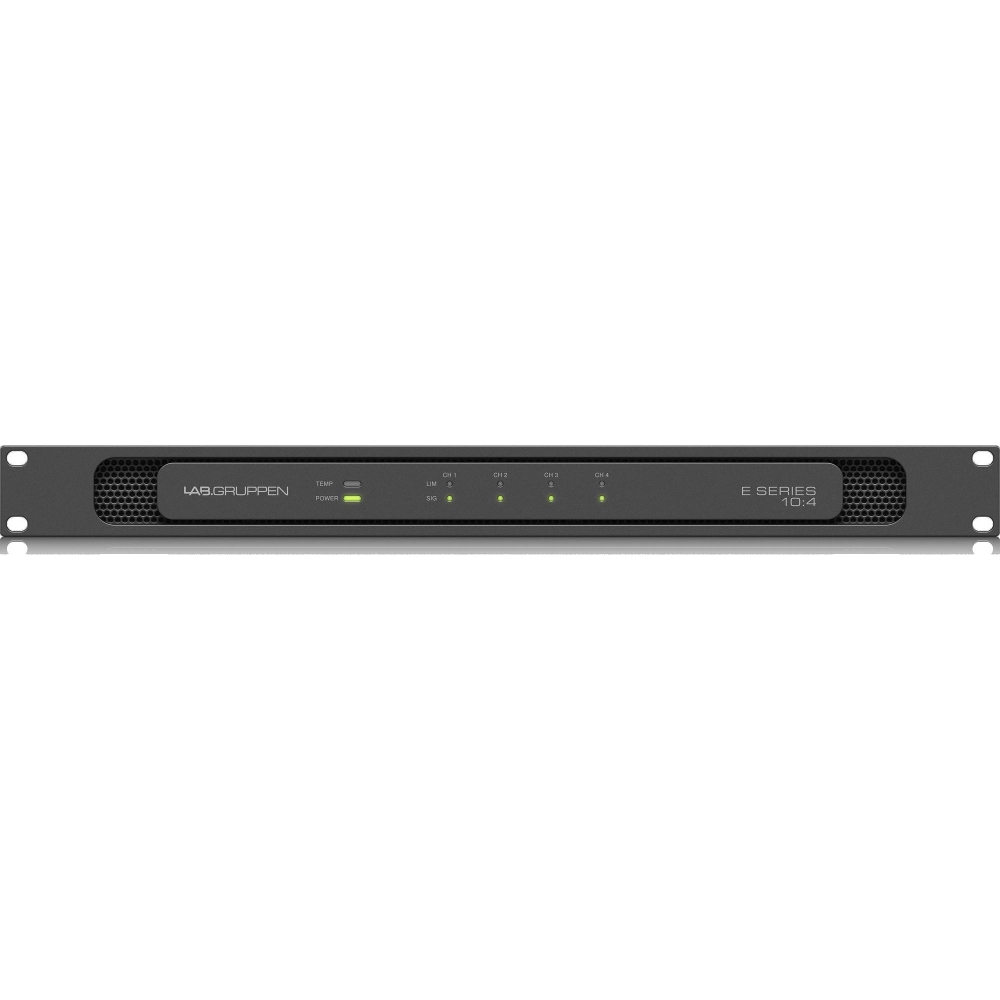

Lab.Gruppen E10:4 - Class D 4 channels 1000 Watt

The E 10:4 has Smart Green Credentials delivering low lifetime cost of ownership. Small in Size, Huge in Benefits Building on Lab Gruppen’s touring reputation for sonic excellence and rock-solid durability, E Series brings a competitive edge to the installation market by adding ultra-compact size, high operating efficiency, output configuration flexibility, and an unprecedented cost-benefit ratio. At the heart of E Series is Lab Gruppen’s IDEEA (IntelliDrive Energy Efficient Amplifier) technology. Based around a patented Class D variant output stage, IDEEA produces high power levels with very low distortion while drawing minimal mains current. Find the CA602 at Sadek Music today and enjoy unbeatable performance and savings. Lab Gruppen’s proprietary Rail Sensing Limiter (RSL™), also exclusive to E Series, greatly reduces signal clipping to ensure high quality audio output at all times. User configurable for Hi-Z (70 V) or Lo-Z, RSL senses rail voltages and optimizes each output for instantaneous load conditions. RSL settings also facilitate asymmetric loading of the channels to optimize performance and efficiency. Total available output power can be allocated among the channels as required by the application. This makes it possible, for example, to drive a small sub on one channel, a number of 70 V ceiling loudspeakers on the second channel, and a pair of full-range low impedance loudspeakers on the two remaining channels. Lab Gruppen Performance with Energy Star Compliance Sadek Music today and experience the ultimate in audio performance, energy savings, and seamless operation. By maintaining very low current draw during operating cycles even at high output levels, and reduced power consumption during non-operational cycles, our Energy Star qualified products harness impeccable Lab Gruppen sonic performance and robust power output while meeting the rigorous efficiency requirements of current Energy Star certification standards. Lab Gruppen’s IDEEA architecture secures full Energy Star compliance by combining net operating efficiency of greater than 80% with an auto-power-down feature. After 20 minutes with no input signal, the amplifier automatically switches to standby mode – with consumption of less than 1 W – and switches back on when an input signal returns. GPIO facilities enable third-party systems to remotely control and monitor power state via contact closure. Smart Green Credentials with Our IDEEA Platform The now proven IntelliDrive Energy Efficient Amplifier (IDEEA) platform represents the latest evolution of our amplifier design philosophies, drawing from technologies in our flagship PLM Series, to create ingenious contractor solutions with supreme green credentials. Flexible Asymmetric Loading Sadek Music, the CA602 2 x 60-Watt Commercial Amplifier offers high-quality audio performance with an advanced, energy-efficient design perfect for commercial and industrial applications. Optimize performance and efficiency from each individual unit - allowing the total available output power to be utilized unequally between the channels, or for mono use with all power on a single channel. Enabling you to drive a small sub on one channel and a number of 70 V distributed ceiling loudspeakers on the other.
