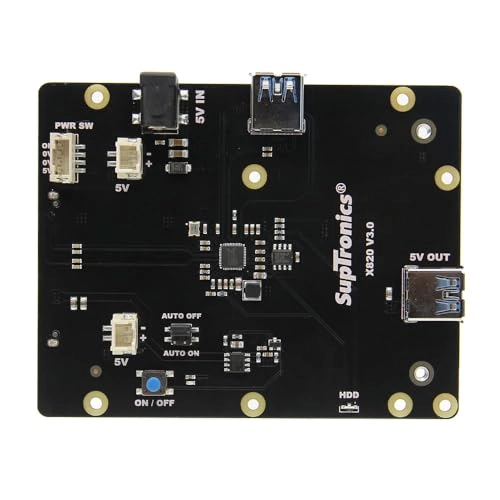

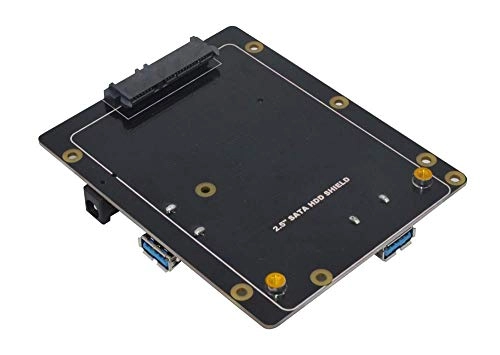

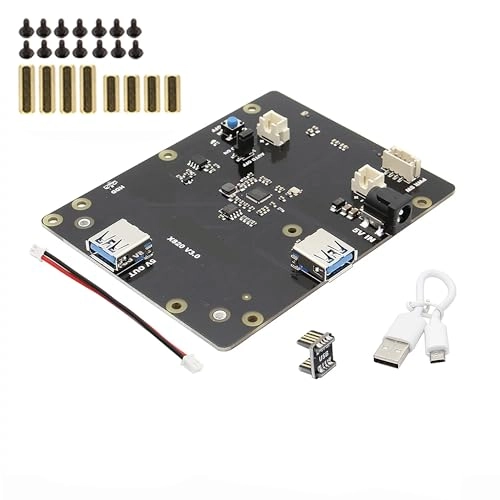

DollaTek X820 V3.0 - USB 3.0 SATA 6.0 Gb/s 2.5-inch

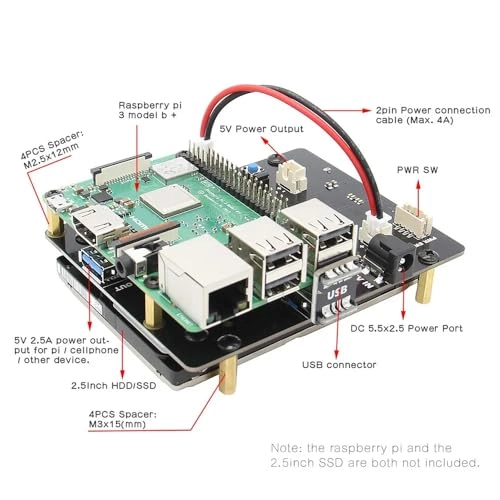

For Use With Raspberry Pi 1 Model B+/ 2 Model B / 3 Model B / 3 Model B+ Operating System All Raspberry Pi operating systems Power Supply Unit (Optional Accessories) AC 100 - 240V input ~50 / 60Hz, 5Vdc 4A output With 2 snap-in plugs for North America (US) and Europe (EU) DC Power Plug Size : 5.5*2.5mm Key Features Supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD) Supports USB booting from your HDD/SSD On-board push button to control power on /off (Press-ON, Hold the button pressed at least 2s -OFF) Powers the Raspberry Pi via Pi's 40-pin header or Micro USB socket On-board XH2.54 connector and USB power socket to power other devices Ideal storage solution for Raspberry Pi USB 3.1 Gen1 to SATA 6Gb/s bridge controller USB 2.0 connectivity offers plug-and-play functionality on your Raspberry Pi Quick file transfer with high-speed USB 3.0 connectivity from a PC or a Mac External Self-Powered or USB bus-powered LED red indicator indicates powered status and blue indicator indicates drive status Easy DIY with Raspberry Pi Specification Power supply: 5Vdc +/-5% , 4A Ports & Connectors: DC jack - 5.5 x2.5mm, USB socket - USB 3.0 type A, Power output connector - XH2.54 2-pin Power switch connector -PH2.0 4-pin PCB Size 107.5mm x 85mm"" Packing List 1 x X820 V3.0 HDD expansion board 1 x USB Jumper 1 x USB 3.0 A-Male to A-Male Data cable 1 x 2-Pin Power Connection Wire 1 x USB 2.0 A-Male to Micro B Power Cable 4 x Spacer M2.5 x 12mm 8 x Screw M2.5 x 6mm 6 x Screw M3 x 6mm 4 x Spacer M3 x 15mm
