ASSMANN Electronic GmbH PES - BO DE DN-651112 - 48 ~ 55 volts 60 watts Two RJ45 sockets IEEE802.3at 1 Gbit/s

DIGITUS PoE+ injector - IEEE802.3at - Gigabit Ethernet - DIN hat rail - DC terminal block - PoE mode A & mode B With the help of the DIGITUS PoE injector you minimise your cabling effort when installing PoE-enabled devices such as IP network cameras. The data and the power supply for the devices are only supplied via an Ethernet line. This eliminates the need to lay a separate power line and you are able to extend your network even where there are no sockets or power lines. The injector is fully compliant with the IEEE 802.3at Ultra PoE standard and delivers an output power of 60 watts. Features:

• High output power with 60 watts
• Industrial Gigabit PoE+ Injector 802.3 af/at
• Complies with 802.3af/at PoE standard
• 48 ~ 55 volts output voltage, 60 watts.

• Complies with 802.3af/at PoE standard
• 48 ~ 55 volts output voltage, 60 watts.
• RJ45 LAN input
• LAN (RJ45) output, power supply via pin: 4/5(+),7/8(-) and 3/6(+),1/2(-)
• Cable connection: 10/100/1000 Mbps.
• The output has a current limitation, short circuit protection as well as automatic terminal device detection and classification.
• Own consumption: 3 W max.
• Operating temperature: -40°C to 75°C.
• Less than 0.3 W idle power consumption.
• Compact, robust metal housing
• Excellent protection against short circuits
• Lightning protection and surge protection.

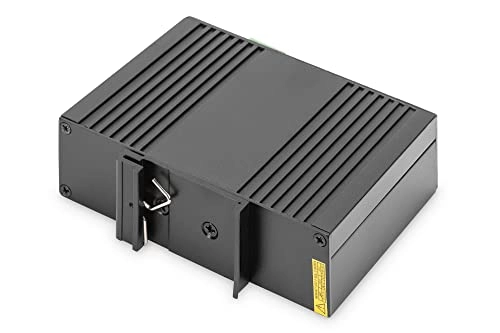

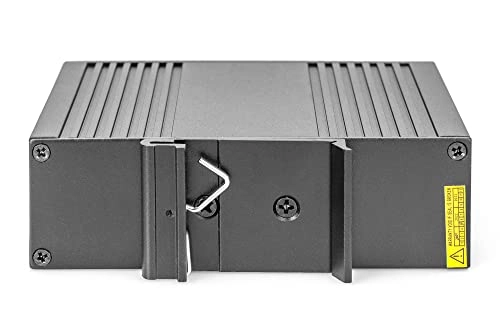

• DIN rail (DIN rail) and wall mounting possible.

• Industrial Gigabit PoE+ Injector 802.3 af/at
• Quick start guide.
