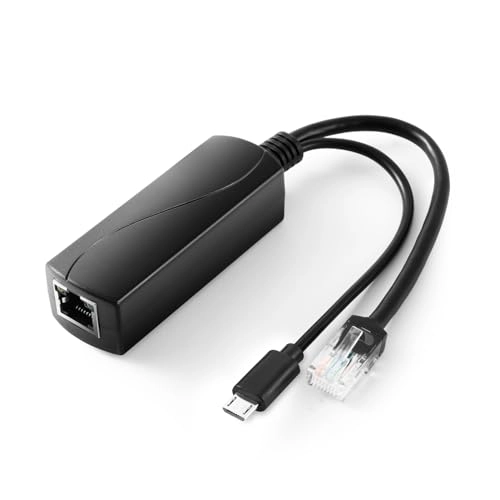

REVODATA Micro USB Port PoE Splitter - 48V 5V/3A 1 IEEE802.3 af/at 10/100/1000Mbps

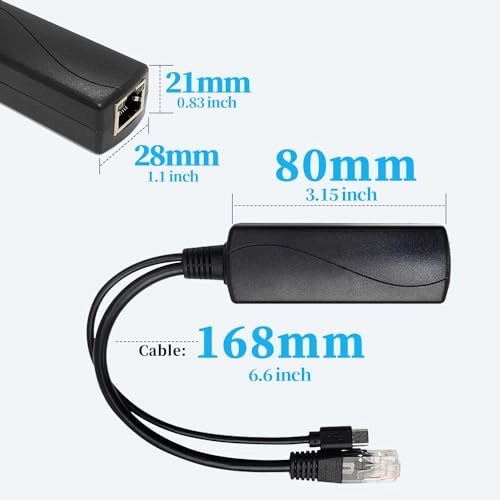

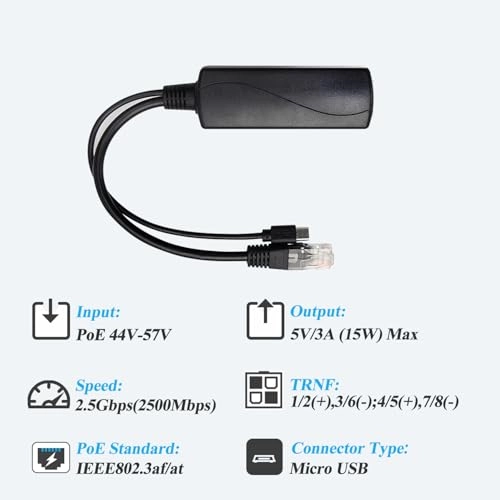

Specifications: - Supports international standard IEEE802.3 af/at; - POE port supports 10/100/1000M data transmission - PD supports 44V-57V voltage transmission, automatically detects PSE power module power supply - 5V/3A power output by Micro USB, the Micro USB port is only for charging the power supply. - Supports insulation circuit protection, which can effectively protect electrical equipment. - Short circuit and surge protection - 1500V high voltage insulation Model: USB0503G-X Transfer rate: 10/100/1000Mbps Power supply: 48V DC /0.6A input, output 5V/3A. Standard: IEEE802.3 af/at TRNF: 1/2(+),3/6(-);4/5(+),7/8(-) Interface Type: 1 x RJ45 input port, 1 x RJ45 output port, 1 x DC output (Micro USB) Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE 802.3 at LED: Yellow PoE indicator Temperature: Work between -20~50°, Storage between -30~60°. Humidity: Working: 10%~90% (non-condensing), Storage: 5%~95% (non-condensing) Dimensions: 27.5 x 2.8 x 2.2 cm. Weight: 0.05 kg Package includes: 1 x Gigabit POE Splitter (USB0503G-X)
