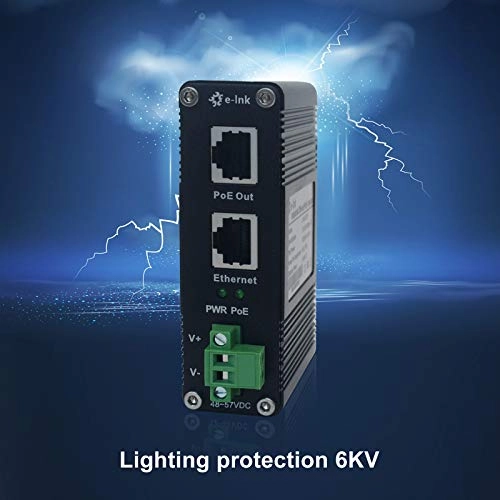

E-link LNK-INJ-48-95W - 48~57VDC 95W

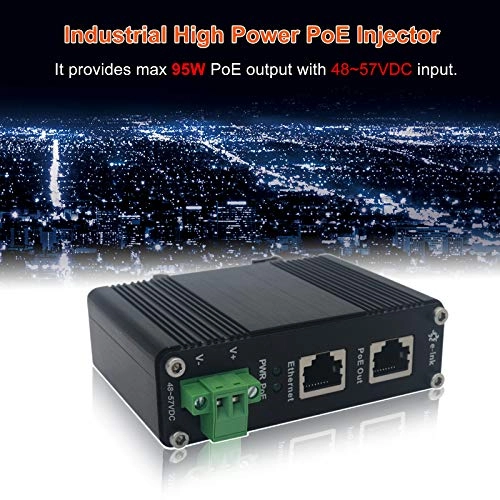

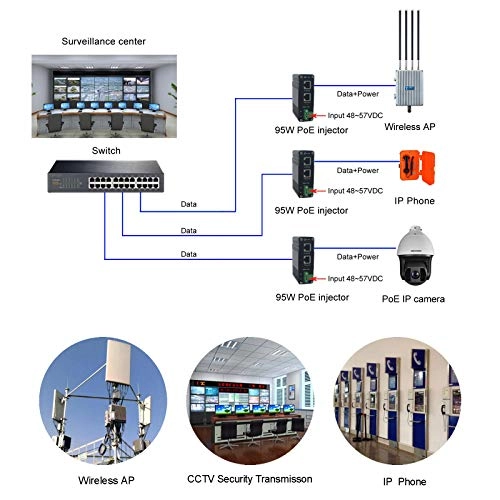

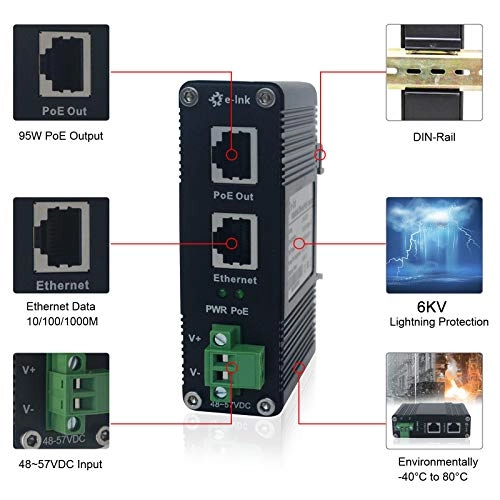

The LNK-INJ-48-95W product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3at / LTPoE++ 95W 10/100/1000Base-TX PoE Injector. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-Tand are compliant with IEEE 802.3ab. It provides 95W PoE output. The LNK-INJ-48-95W product is an Hardened PoE Injector which provides 2 port 10/100/1000Base-TX, 1 ports supports LTPoE++ 95W PSE(Power Sourcing Equipment) and compliant with IEEE 802.3at Features 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power) Support 95W LTPoE++Power Sourcing Equipment Compatible IEEE802.3at PoE+ Support 10/100/1000Base-TX Extensive LED indicators for PoE diagnostics 48~57VDCTerminal Block Power inputs Supports DIN-Rail and Wall-mount installation Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature Way To Set Up: a)Connect the LNK-INJ-48-95W to the power supply. Ensure the power supply in connected to a power source and the PWR indicator is ON. If not, pls ensure that the power cable is connected properly and the power supply is functioning normally. b)Connect the Ethernet Port to the network equipment (Switch or PC), Connect the PoE Out Port to the Power Device (PoE IP-CAM). c)After all cables are correctly connected, the indicators will be lit as per port status LEDs Package Content: 1 * 95W PoE Injector 1 * Quick Start Guide
