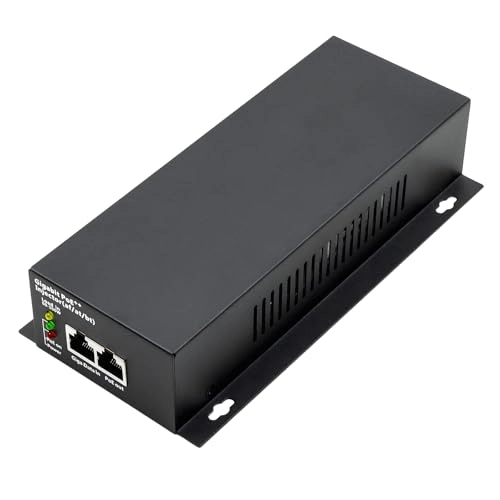

ThePoEstore M931-90W - 50VDC 90W 1 PoE port IEEE 802.3af/802.3at/802.3bt 10/100/1000Mbps

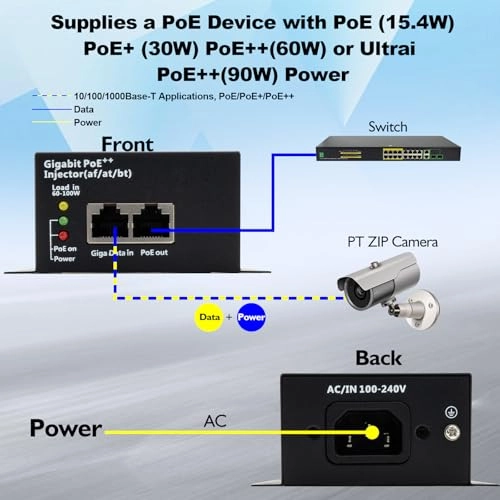

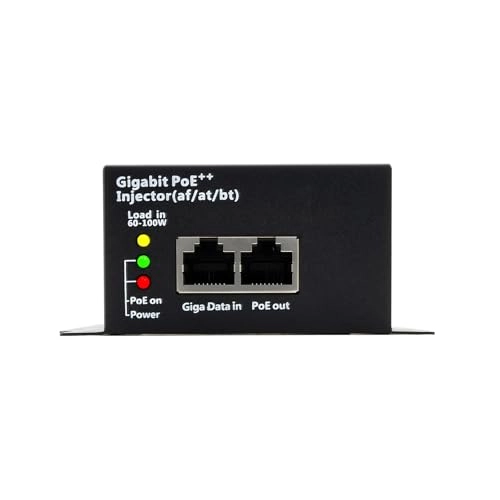

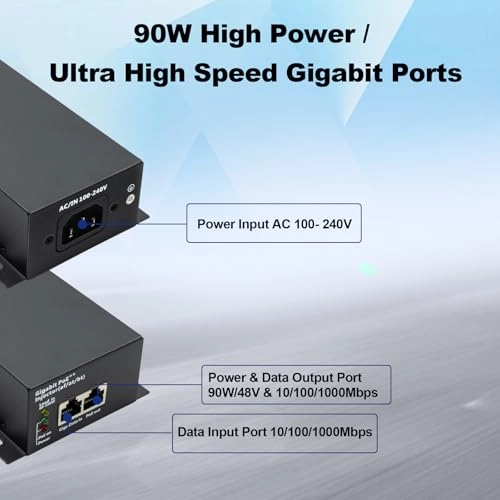

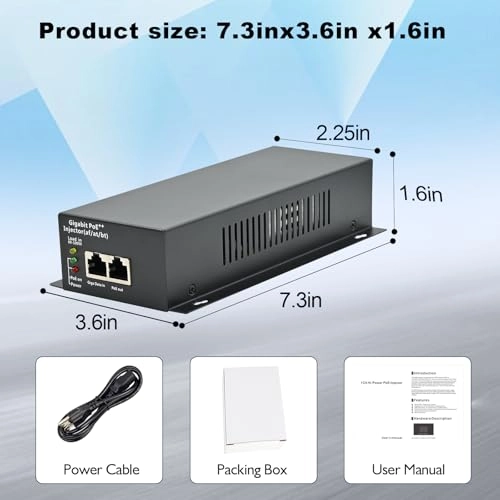

ThePoEstore 90W Gigabit PoE++ Injector, Full Duplex Gigabit Speeds Description: 100 M Network Range, Supports IEEE 802.3af/802.at/PoE, Plug & Play(90W) Pass Through Data Rates: 10/100/1000Mbps Output Power Voltage: 50VDC Use Port Power: 30W/60W/90W AC Input Voltage: 100 to 240VAC AC Input Current: 0.5A 100-240VAC AC frequency: 50 to 60 Hz Dimensions:178mm x 80mm x 4.4mm System Indicator：AC power Connectors: shielded RJ-45,EIA 568A and 568B Operating Ambient Temperature: 0℃ to 40℃ Storage Temperature: -10℃ to 50℃ Regulatory Compliance: IEEE 802.3af (15.4W)/IEEE 802.3at (30W)/IEEE802.3bt 4Pairs(60W) IEEE802.3bt (90W) Steps: 1.use a CAT5 or CAT6 UTP cable to connect port of Ethernet device to the DATA IN port 2.Connect AC cable with injector and socket 3.Connect the POE out port to a PD with CAT5 or CAT6 UTP cable.
