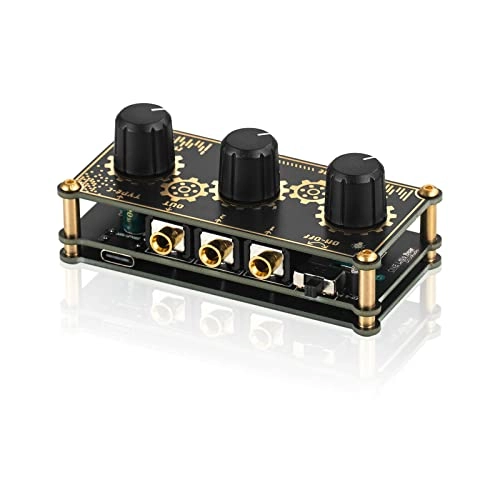

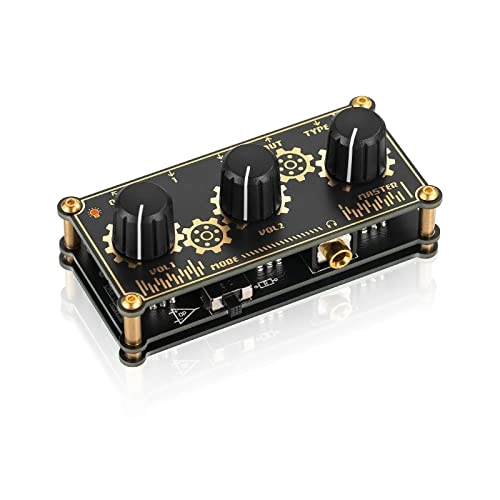

Douk Audio MX3 - 2 channels

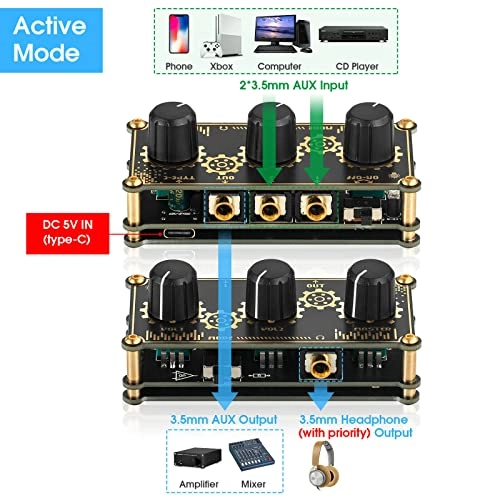

Warm Tips 1. In active mode, please use independent USB power supply to power MX3, cannot share the same power supply with audio device, or else common ground noise will be caused. 2. The 3.5mm headphone jack output is prior, 3.5mm AUX output on the back panel will auto disconnect if headphone is inserted. 3. Recommend to use active mode if want to connect headphone for monitoring, or else the output sound will be very small. 4. Please keep wireless device such as WIFI or phone away from MX3, or else noise may be caused. 5. MX3 only supports standard audio signal such as CD / DVD / phone, cannot connect phono turntables or MIC directly. Parameters Audio input: 2 groups of 3.5mm AUX Audio output: 1× 3.5mm AUX / 1× 3.5mm headphone jack (cannot output at the same time) Passive mode: No power required, passive control. Input impedance: 50KΩ Output impedance: 4.7KΩ Active mode: Working voltage: DC 5V (≥0.5A) Power interface: Type-C USB Output impedance: 3Ω Dimensions(W*D*H): 84*43*22mm / 3.31*1.69*0.87in Net weight: 69g / 0.15lb Package weight: 200g / 0.44lb Packing List 1× MX3 Line Mixer 1×Type-C USB Cable
