PT Enterprise Wire Tracer & Circuit Tester - 9 Volts RJ-11 Plug

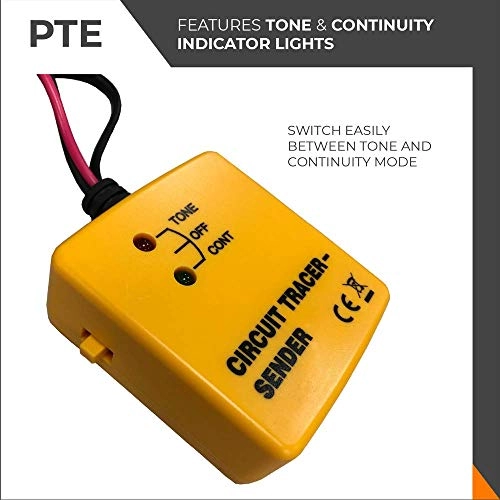

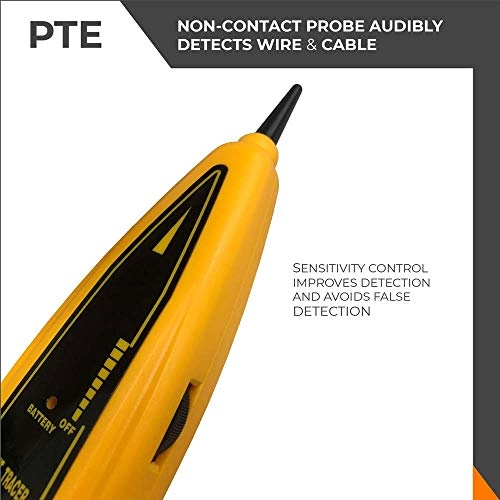

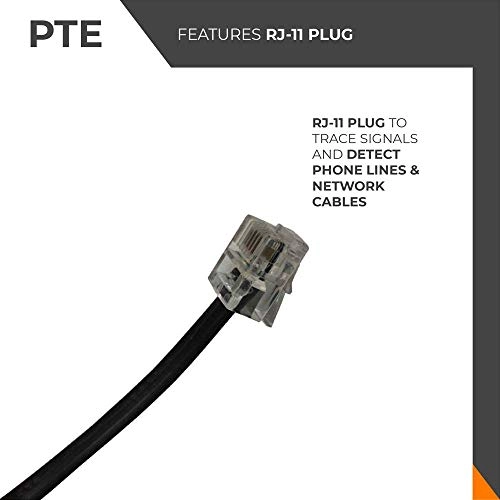

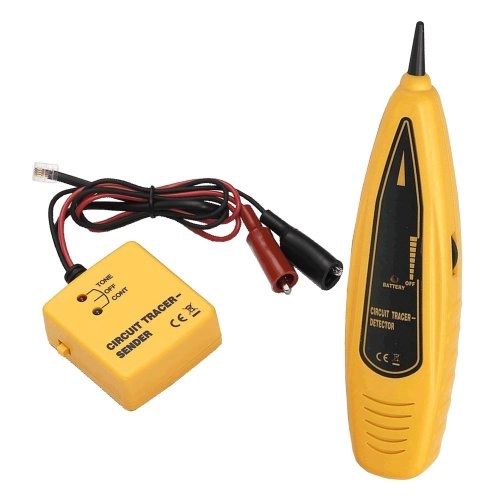

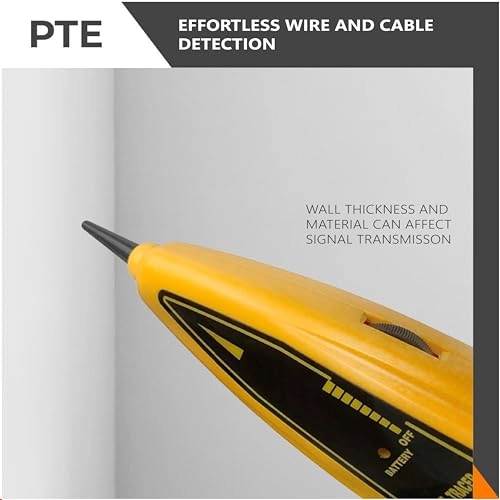

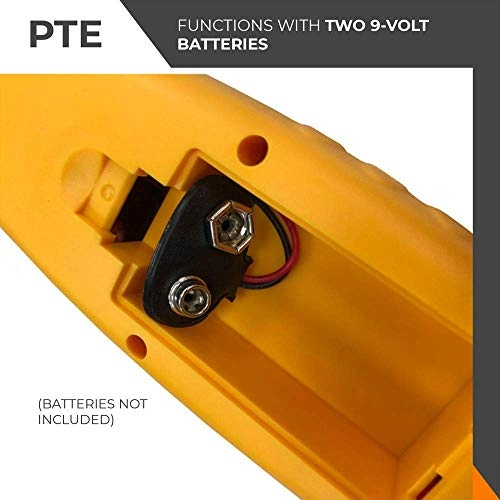

This Wire Tracer and Circuit Tester - including a sender/tone generator and a detector - is designed to identify and trace wires or cables without damaging the insulation. Note: Requires 2 9V batteries (not included) Use as a Wire Tracer Connect only one of the alligator clips of the tone generator to your wire and use the probe to follow the wire along, or ID it at the other end. Use the probe’s volume control to adjust sensitivity. The audible tone will increase in volume as the probe gets closer to the wire. You can even use it to trace a single wire. Find broken wires buried in the ground or in walls. (Detection limit will vary depending on material between wire and probe. Swap tone generator for a more powerful signal source as needed.) Use as Circuit Tester Connect two alligator clips to the ends of the wire to check if resistance exists. If yes, the wire could be a short or open circuit. You can then use the Wire Tracer function to locate the problem. Telephone line maintenance For telephone lines, the Wire Tracer and Circuit Tester can identify Tip and Ring lines and determine the status of the line - clear, busy, or ringing - making it more convenient to maintain telephone lines. Specifications - Maximum length of cable tested: Allows for sending tone up to 328 feet / 100 m - Frequency: 1.1 to 1.4 kHz output for Sender; detects above 30 Hz for Detector - Power: 2 x 9V batteries (not included) - Dimensions and Weight: Sender: 2.8 x 2.6 x 1.2 inch / 7 x 6.5 x 3 cm ; 3 oz / 85g; Detector: 8.5 x 2 x 1.4 inch / 21.5 x 5 x 3.5 cm; 3.3 oz / 95g Note: Do NOT connect to a live circuit. Detector probe can be used with live circuits but should NOT be allowed to touch a live wire in any circumstance. Packaging Contents Detector, sender with RJ-11 plug and 2 alligator clips, manual (batteries not included)
