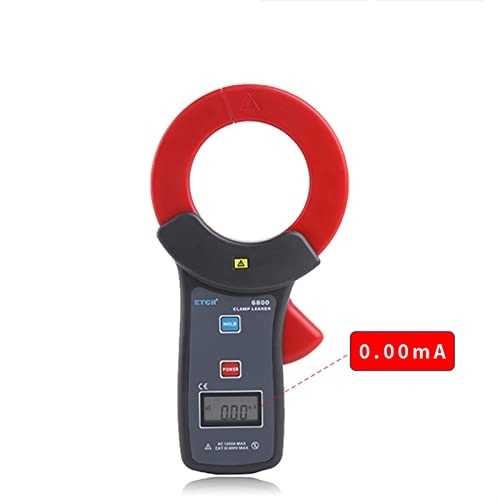

The ETCR6800 clamp-on leakage current meter is specially designed and manufactured for measuring AC leakage current. It adopts CT technology and digital integration technology. It has the characteristics of small size, large jaw, high precision and perfect function. It is widely used in electric power, communications, meteorology, railways, oil fields, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. The sensor core is made of special alloys and magnetic shielding technology, which is almost unaffected by the external magnetic field, ensuring high precision, high stability and high reliability for year-round uninterrupted measurement.
The instrument has a USB interface, and its software can be online real-time monitoring and historical query, dynamic display, with maximum, minimum, average value indication, alarm value setting and alarm indication function, historical data reading, saving, printing and other functions .
The meter can be used for AC line current measurement below AC600V, on-line current measurement, and also has functions such as peak value hold, data hold, data storage, etc. It is easy to use and is a necessary tool for electrician safety inspection.
Specification:
Function: AC leakage current measurement, AC current measurement, online AC current measurement
Power source: Alkaline dry battery 6LR61 9V, can work continuously for about 80 hours
Measuring range: 0.00mA～1200A
Resolution: 0.01mA
Measurement accuracy: (23℃±3℃, below 70%RH)
0.00mA～59.9A: ±1.5%±5dgt
60.0A～199A: ±2%±5dgt
200A～599A: ±3%±5dgt
600A～1200A: ±4%±5dgt
Meter quality: 500g (including battery)
Instrument size: height, width and thickness: 224mm×115mm×43mm
Jaw size: φ68mm
LCD size: 35mm×21.5mm; display area: 32mm×15mm
Sampling rate: about 2 times/sec
Display mode: 4-digit LCD display
Test method: Clamp CT, integral method
