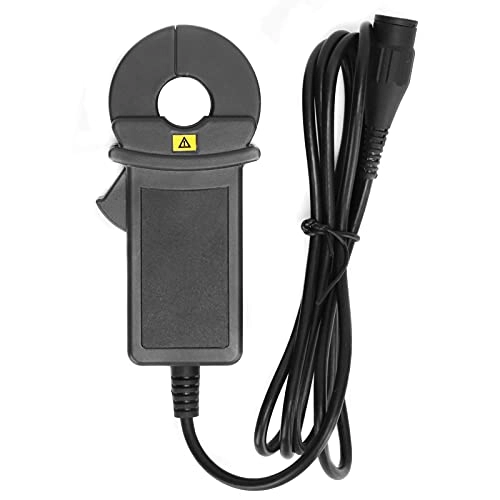

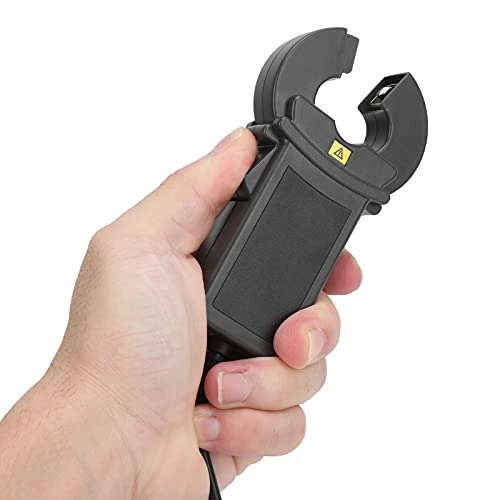

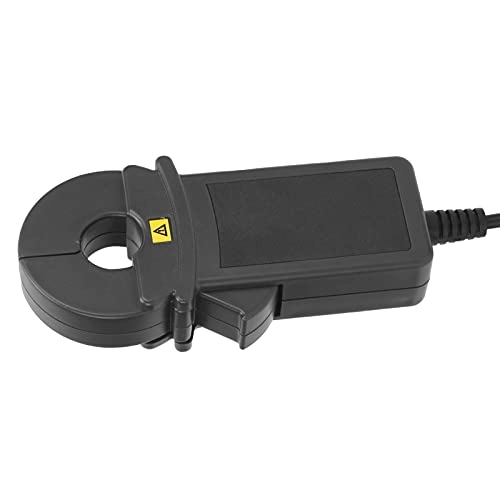

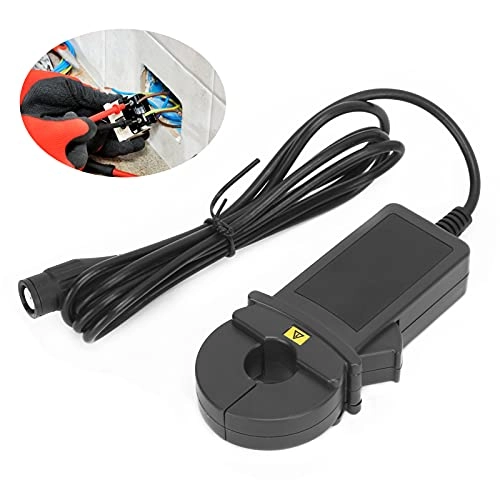

GUESR Clamp Current Sensor

Feature: 1. Clamp leakage current sensor is suitable for high accuracy AC leakage current, high order harmonic current, phase, electric energy, power factor and other detection. 2. Portable clamp design, can be connected to phase detection analyzer, industrial control device, data recorder, oscilloscope, harmonic analyzer, power quality analyzer, multimeter, etc. 3. Using CT technology, no need to disconnect the tested circuit, non contact measurement, safe and fast. 4. Adopting double layer shielding technology, the influence of external magnetic field is very small, which ensures the high accuracy, high stability and high reliability of the measurement. 5. The iron core is made of permalloy, which is widely used in many situations, such as power, communication, construction and other places. How to Use: 1. Multimeter (mA level current gear): You can directly view the current value after the transformer ratio is passed, and the standard configuration is 2500:1 2. Oscilloscope: For the measurement of DC current or AC current, the indirect method is generally used. First, change the amount of current to a proportional amount of voltage. Then observe with an oscilloscope. The general test method is to connect a non inductive resistor with high accuracy and small resistance in series in the circuit under test, and then use the oscilloscope to measure the voltage, measure&nb
