NATIKA LLC WD-779 - starlight night vision wired 720P

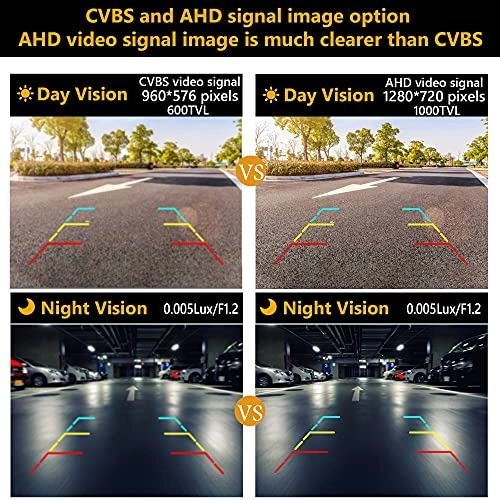

This car backup camera with 3 useful wire loops: To use as a Forward Camera, please cut the WHITE wire loop; *Cut the GREEN wire loop to remove the distance guidelines; *Cut the PURPLE wire loop to choose AHD (720P, 30fps) signal output. Please power on again after you cut any color wire loops, then the image should be correct. *Note: this rear view camera with the guidelines and CVBS video signal output as DEFAULT. Notes: *Before you cut this vehicle backup camera’s purple wire loop to choose AHD 720P 30fps video signal output, please make sure your Android stereo support AHD video signal input first. *keep this car front view camera’s wire and 26ft extension wire away from high temperature area, such as engine or exhaust. Also please clean this backup car camera’s lens regularly to free it from dirt, water drops, snow drops etc. *This backup car camera doesn’t fit sucked type dash cam and mirror dash cam, because these dash cam have different connectors and PIN definition, even some of them with same 4 PIN connector. *If connect this licence plate backup camera to a GPS navigator, please separately order one more adapter which with a RCA to 2.5mm connector to complete installation. *If connect this car rear view camera to a FACTORY RADIO, please separately order a suited Harness to complete installation, because different RADIO need different Harness to work together. *This reverse camera is perfect for rear and front view, and working great for most vehicles. *If you use T-taps for connecting this rear camera to power source, please check if they are connected solid. *To adjust this HD backup camera view angle, just move up or down the camera body. *If this universal backup camera is mounted offset, the guidelines on image will be offset. *This rearview camera’s output video signal is NTSC, so your head units or control boxes’ signal input have to be setting up to be NTSC, NOT PAL.
