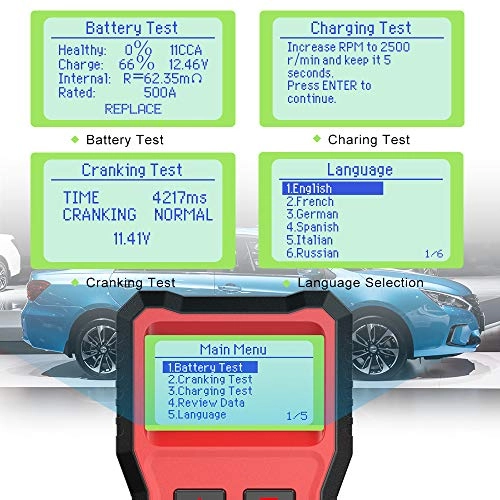

1. Identify the battery in good condition or replace it
2. Check battery capacity - cold start
Ampere (CCA), DIN, EN and IEC information related to battery rating.
3. Check the internal resistance value (ohm)
4. Display battery life in percentage (%)
5. Battery startup test, load test
6. Battery charging test, ripple test
7. Support battery ripple test and view test data
BST100 12V Battery Tester Features

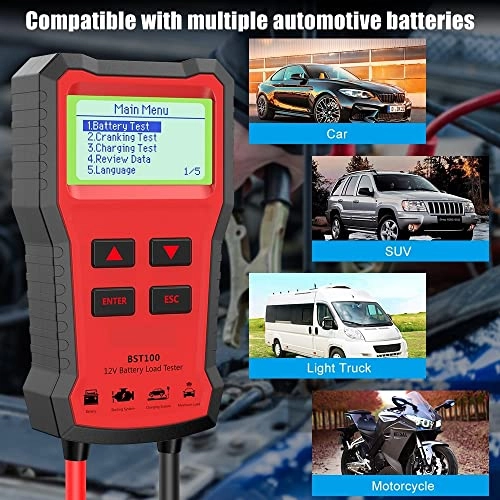

Test all car start lead-acid batteries, including ordinary lead-acid batteries, AGM flat batteries, AGM spiral batteries, gel batteries, etc.
Reverse polarity protection, reverse connection will not damage the tester or affect the vehicle and battery.
Directly test the power-down battery, and it does not need to be fully charged before the test.

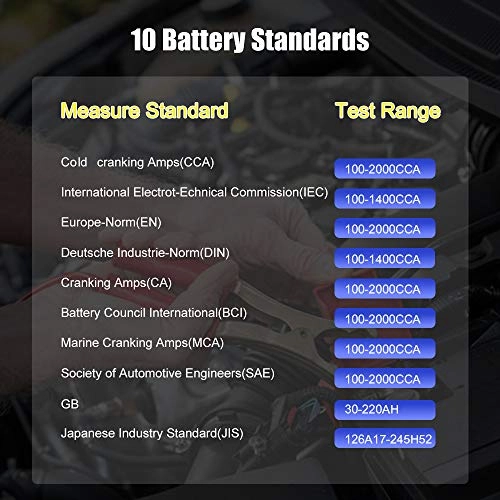

The test standards include most of the battery standards in the world, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
The BST100 is used to test various 12V batteries (starting [SLI], deep cycle and marine) wet (overflow), VRLA or maintenance free (MF), sealed maintenance free (SMF), absorbent glass mat (AGM)) and GEL EPB cells
BST100 12V Battery Tester Details
Advantages of this method:
(1) It can be used for the inspection of almost all batteries, including the internal resistance of low-capacity batteries and notebook batteries.
(2) Using this method will not cause damage to the battery.
FQA 1. What is the measurement principle of this tester?
Batteries age gradually over time. The main reason is that the surface of the battery plate is aging and can no longer produce some effective chemical reactions. The International Institute of Electrical and Electronics Engineers (IEEE) officially adopted the conductivity test as one of the standards for checking lead-acid batteries. It states from IEEE Standard 1118-1996: The conductivity test is used to test the alternating current produced by placing an alternating signal of known frequency and amplitude across the battery. The AC conductivity value is the ratio of the AC current signal in phase with the AC voltage to the AC voltage. The tester is actually designed according to this principle.
FQA 2. Will adding negative current to the vehicle affect the results?
All negative currency affects the result. So please remove negative numbers before checking to get accurate data.
