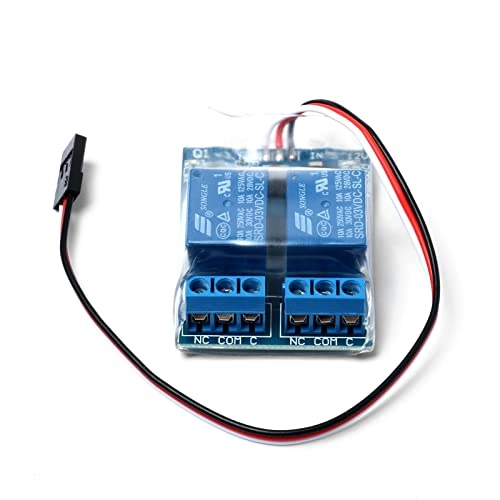

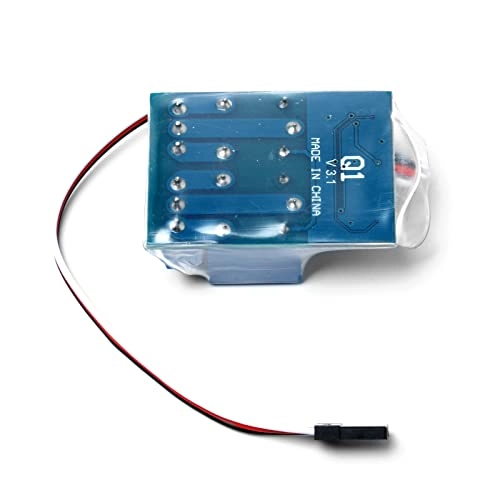

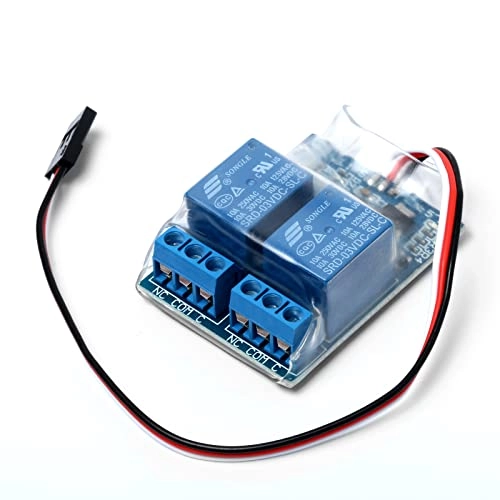

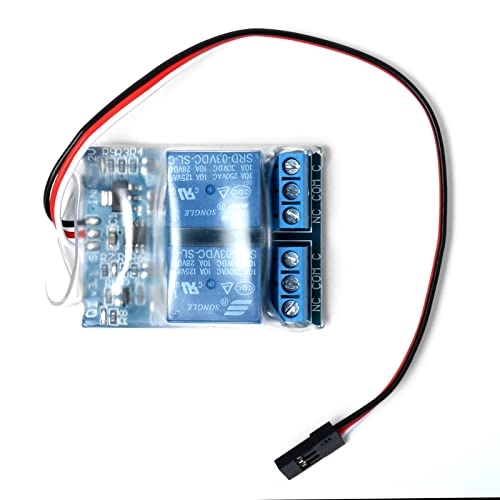

Huayu Q1 - RC Relay Switch PWM 2-In-1

Application: 1. Connect: Plug the signal input cable into an idle receiver channel that corresponds to a switch on the remote. The power indicator will be illuminated when connected to the receiver. The work indicator lights up when the switch channel is open and vice versa. 2. Working mode: The red LED light indicates the power indicator. The blue LED indicates the relay's operating status. 3. Trigger: Example: throttle passage Turn the throttle lever on the remote control to the full throttle, and a relay is closed (the common terminal and the normally open terminal are connected, and the common terminal and the normally closed terminal are disconnected). Turn the throttle lever on the remote control to the half throttle, and the two relays are not closed (the common terminal and the normally open terminal are disconnected, and the common terminal and the normally closed terminal are connected). Turn the throttle lever on the remote control to the minimum throttle and the other relay to close (the common and normally open terminals are connected, and the common and normally closed ends are disconnected). Example: three-stage switch channel Turn the three-segment switch on the remote control to the high position, and one relay is closed (the common terminal and the normally open terminal are connected, and the common terminal and the normally closed terminal are disconnected). Turn the three-segment switch on the remote control to the neutral position, and the two relays will not operate (the common terminal and the normally open terminal are disconnected, and the common terminal and the normally closed terminal are connected). Turn the three-stage switch on the remote control to the low position, and the other relay is closed (the common terminal and the normally open terminal are connected, and the common terminal and the normally closed terminal are disconnected).
