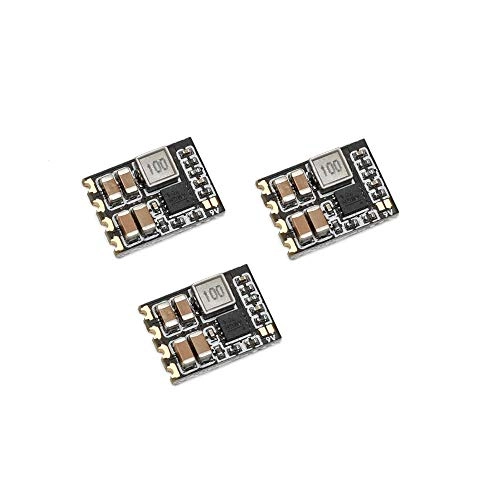

Matek Micro BEC - 6-30V 5V/9V Adjustable

usmile Matek Micro BEC - 6-30V 5V/9V Adjustable

Name: usmile Matek Micro BEC - 6-30V 5V/9V Adjustable
Brand: usmile
SKU: 408975
Availability: InStock

Best offer

AED

123³⁷

Key Features

Weight: 18g
Batteries included: No
Material: Down feather
Batteries required: Yes
Compatibility: QAV210, QAV250, X210, suitable for 2s-6s lipo battery, suitable for 4/5 inch Carbon Fiber FPV Racing Quad Frame X Quadcopter Frame like Martian II 220

Specifications

Features

Compatibility

QAV210, QAV250, X210, suitable for 2s-6s lipo battery, suitable for 4/5 inch Carbon Fiber FPV Racing Quad Frame X Quadcopter Frame like Martian II 220

Material

Down feather

Weight & dimensions

Weight

18 g

Power

Batteries required

✓

Packaging content

Batteries included

✗

Product Details

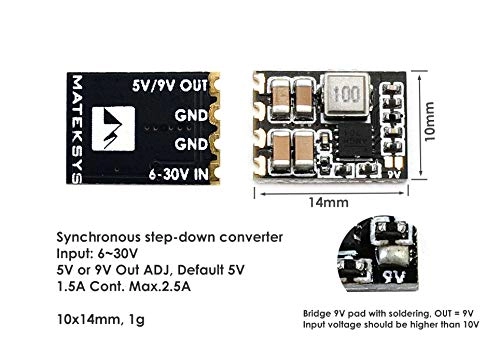

High Efficiency Synchronous Step-down regulator Wide 6V to 30V Operating Input Range Continuous load current: 1.5 Amps (Max.2.5A 5s/minute) VOut 5V or 9V Adj. Default is 5V. VOut Load Regulation: 2% Standby current: <5mA Maximum Duty Cycle: 95% OCP Protection and Hiccup Thermal Shutdown Output Short-circuit tolerant (5 seconds/minute) Pins distance: 2.54mm Size & Weight: 10x14x3mm, 1g Packing: 3pcs/unit
