EXVIST ZFD3PSH16F

Basics

Default: User: admin; Password: 12345; IP: 192.168.120;

Model: ZFD3PSH16F

Sensor: 1/2.8" Progressive Scan CMOS Sensor

Mode: Full Color at Night with Warm Light

Lens: 3.5mm(Distortionless)

WDR: 80dB

Electric Shutter: Adaptive, 1/2s-1/1,000s

Video & Audio Encoding

Video Encoding: H.265/H.264 Video Encoding

Audio Encoding: AAC/G.711U/G.711A/G726 Audio Encoding; Audio Sampling up to 16K

Bit Rate: CBR & VBR; 256kbps~8Mbps [Adjustable]

Frame Rate: 50Hz: 1-25fps; 60Hz: 1-30fps [Adjustable]

Main Sream: 2304*1296, 1920*1080, 1280*960, 1280*720

Sub Stream: 704*576, 640*360, 640*480, 352*288

RTSP(Main Stream): rtsp://192.168.1.120:554/live/0

RTSP(Sub Stream): rtsp://192.168.1.120:554/live/1

Protocol

Network Protocol: IPv4/IPv6, TCP/IP, DHCP, HTTP, UDP, RTP, PPPOE, SMTP, UPNP, VOIP

Video Protocol: CGI, RTSP, RTMP, ONVIF, HTTP, SIP, 802.1x

Wireless Protocol: Not Available by Default

Interfaces

Network Interface: 1ch RJ45 10M/100M Self Adaptive Ethernet Port

Audio Interface: Built-in Audio

Others

Working Environment: Temparature：-30°C~60°C (-22°F~140°F); Humidity: ≤95% (Non-Condensing)

Power Input: Powered by Standard 48V PoE Switch or DC12V 1A or Higher (Included by Default)

Power Consumption: ≤5W

Package Contents

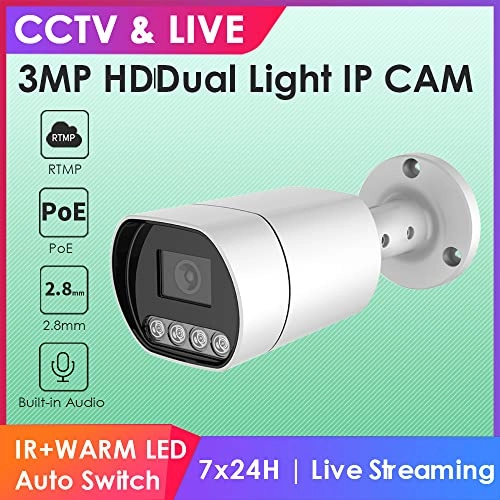

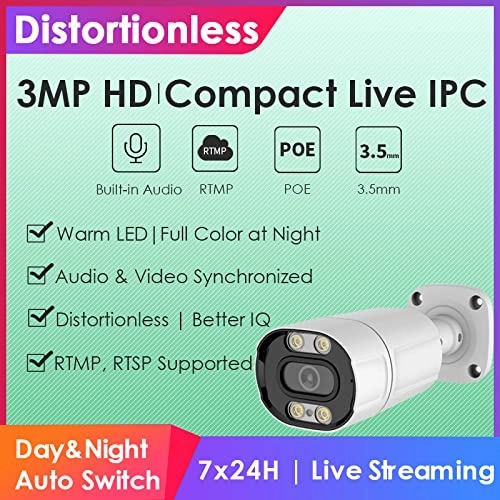

1x 3.0MP PoE Full Color Compact Bullet Live Streaming IP Camera

1x Attached Accessories

NOTE

Audio might not be so good when streaming live video to YouTube.
