Performance parameters
Image sensor: 1/2.8" Progressive Scan
Pixels: 2MP + 2MP + 2MP Resolution:
Main stream resolution: 1920×2160
Sub-stream resolution: 640×720
Frame rate: 15 fps
Shutter speed: 1/3 second ~ 1/100,000 second
Night vision illumination: Color: 0.1 Lux @(F2.0, AGC ON), Infrared: 0 Lux with Light
Lens: Recommended 4.0mm F1.6 lens Video compression
H.265
Image enhancement: Supports 3D digital noise reduction, strong light suppression, and digital wide dynamic range
Network connection
Wired network: 1 RJ45 Ethernet interface (10/100M auto-sensing)
Wireless network: Supports IEEE802.11b/g/n, 2.4GHz and 2.4GHz + 5.8GHz
LTE 4G network:
SIM card support for LTE-FDD: B1/3/5/8
LTE-TDD: B34/38/39/40/41 Storage
Local storage: Supports Micro SD card (maximum 128G not included), enabling secure storage of video footage.
Video format: H.265 compression format, saving storage space. Functional Features
Intelligent detection, mobile detection, mobile tracking, humanoid detection, filtering of false alarms

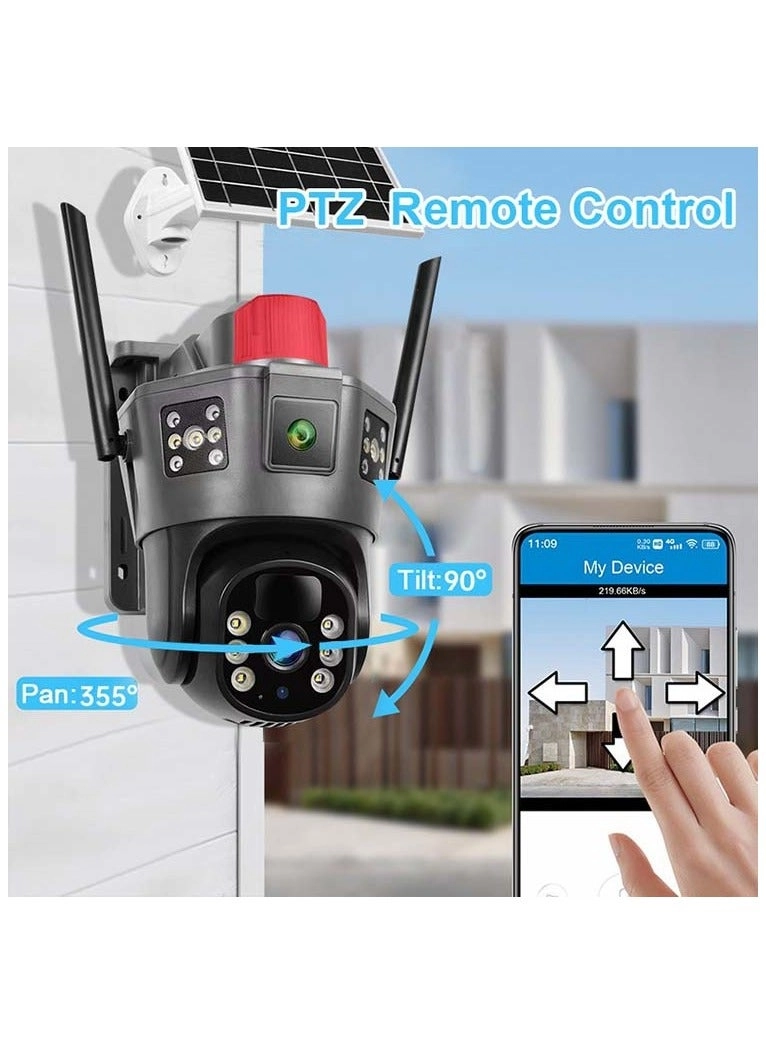

Pan-tilt control: Supports up-down-left-right control, mobile tracking and preset position functions.
Remote access: Supports remote monitoring via mobile APP, allowing real-time viewing of the scene anytime and anywhere.
Power supply and battery life
Power supply:
Solar panel power supply: DC 5V/2A (maximum power consumption ≤ 5W)
Recommended solar panel: 7W
Battery life: Automatically charged by solar panels to ensure charging during the day and extended battery life at night.
Environmental adaptability
Operating temperature: -10℃ ~ +50℃; Operating humidity: Relative humidity ≤ 75%

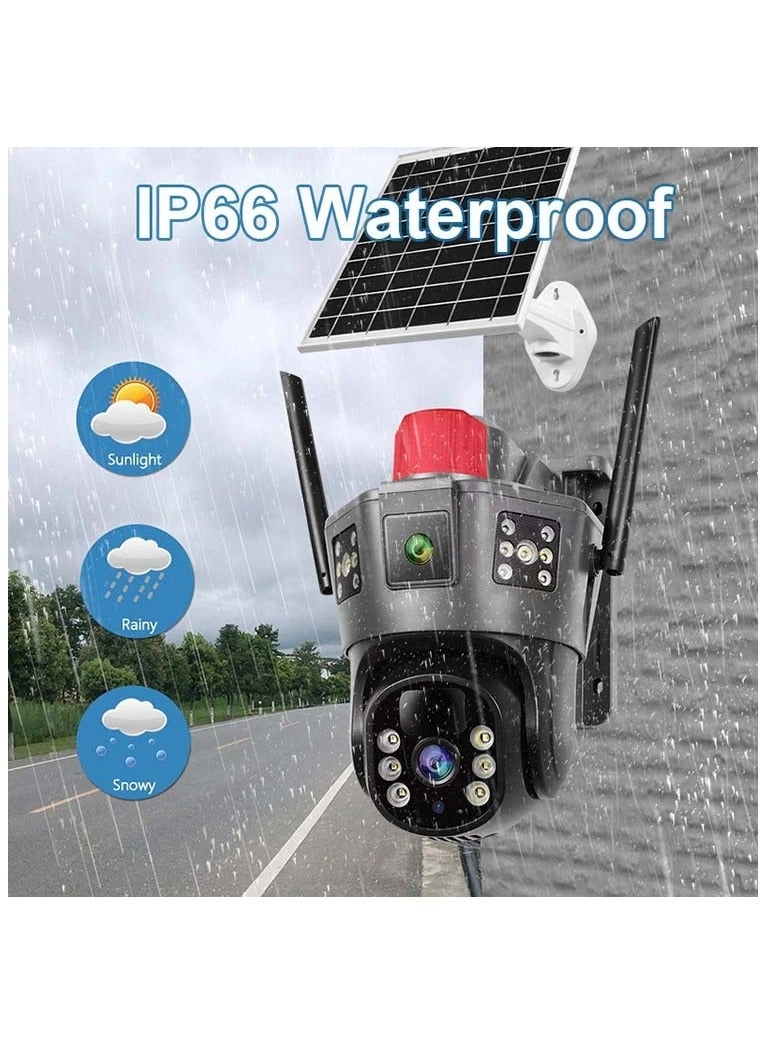

Waterproof rating: IP66, suitable for various outdoor environments to ensure normal operation of the camera in adverse weather conditions.
Night vision performance
Infrared illumination distance: 10m ~ 15m (depending on the specific environment), ensuring clear monitoring at night.
Other functions
Audio interface: Built-in 1 microphone and 1 speaker, supporting two-way audio.
Alarm information push: Automatically pushes alarm information to the mobile phone when an abnormal situation is detected.
Image flipping: Supports horizontal and vertical flipping.
Time watermark: Supports time watermark function, facilitating video recording and traceability.
Other technical parameters

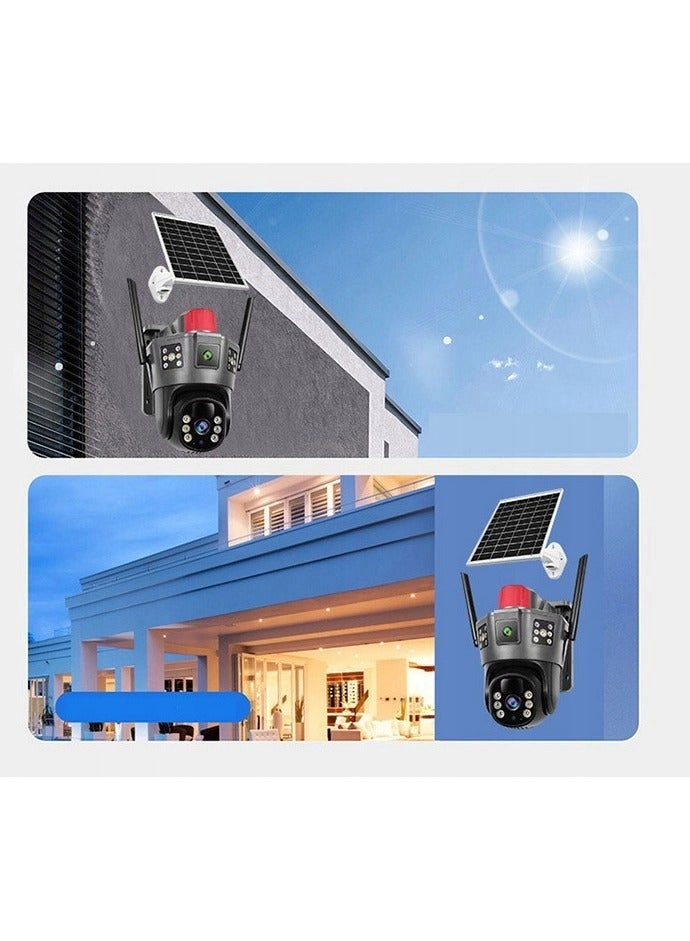

Installation method: Wall-mounted, ceiling-mounted or column-mounted installation, suitable for various environments.
User management: Supports multi-user management, setting different permissions to ensure security.
Compatibility: Supports ONVIF protocol, compatible with various monitoring platforms and software. Packaging List
Camera body: 1 unit, accessories included: screws, expansion bolts, etc., power adapter: 1 unit, manual: 1 copy (user manual and installation guide for the product) Applicable scenarios
Home Monitoring: Suitable for home security monitoring, allowing real-time viewing through the APP.
Commercial Monitoring: Applicable to stores, warehouses, offices, etc., providing comprehensive security protection.
Public Places: Can be used for safety monitoring in public areas such as schools, parks, and parking lots. Notes for Attention
Installation location: It is recommended to install it in an open area to avoid obstructions.
Power connection: Ensure a stable power connection to prevent equipment failure due to power issues.
Regular maintenance: Regularly check the cleanliness and working condition of the camera to ensure normal operation.
