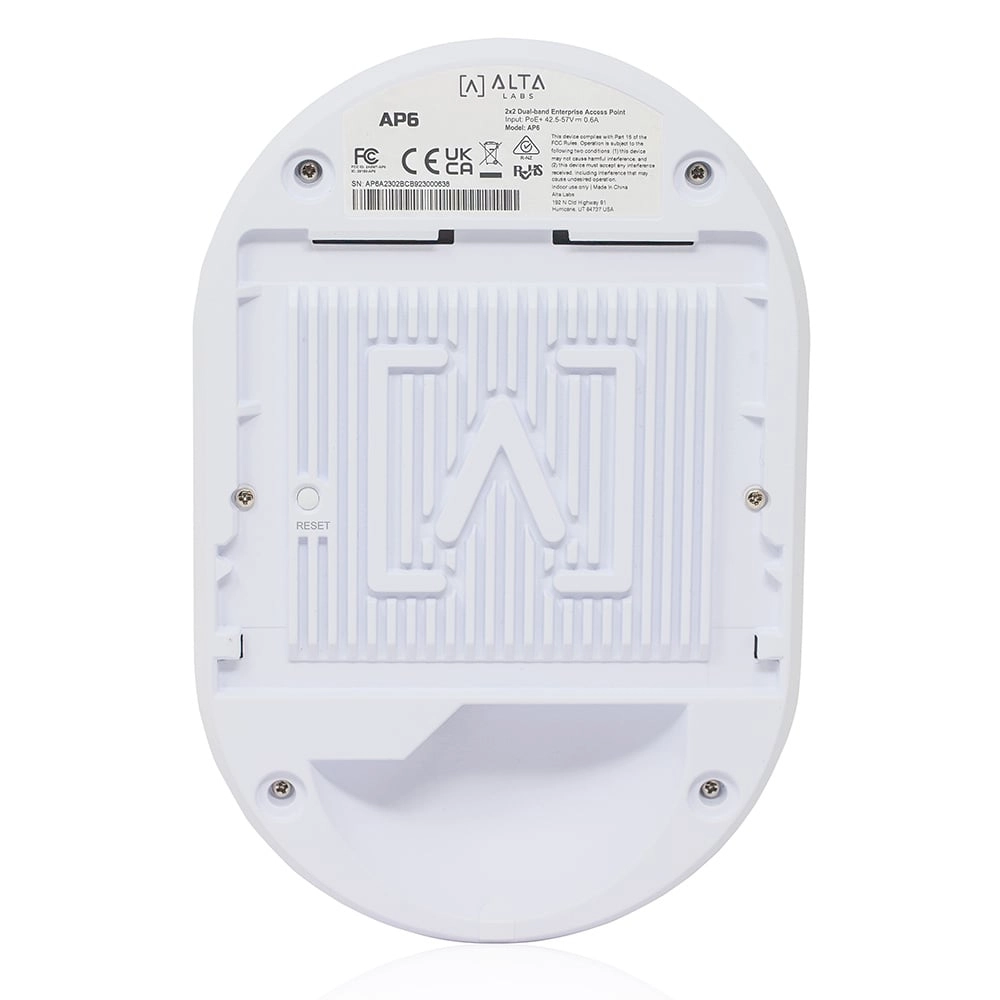

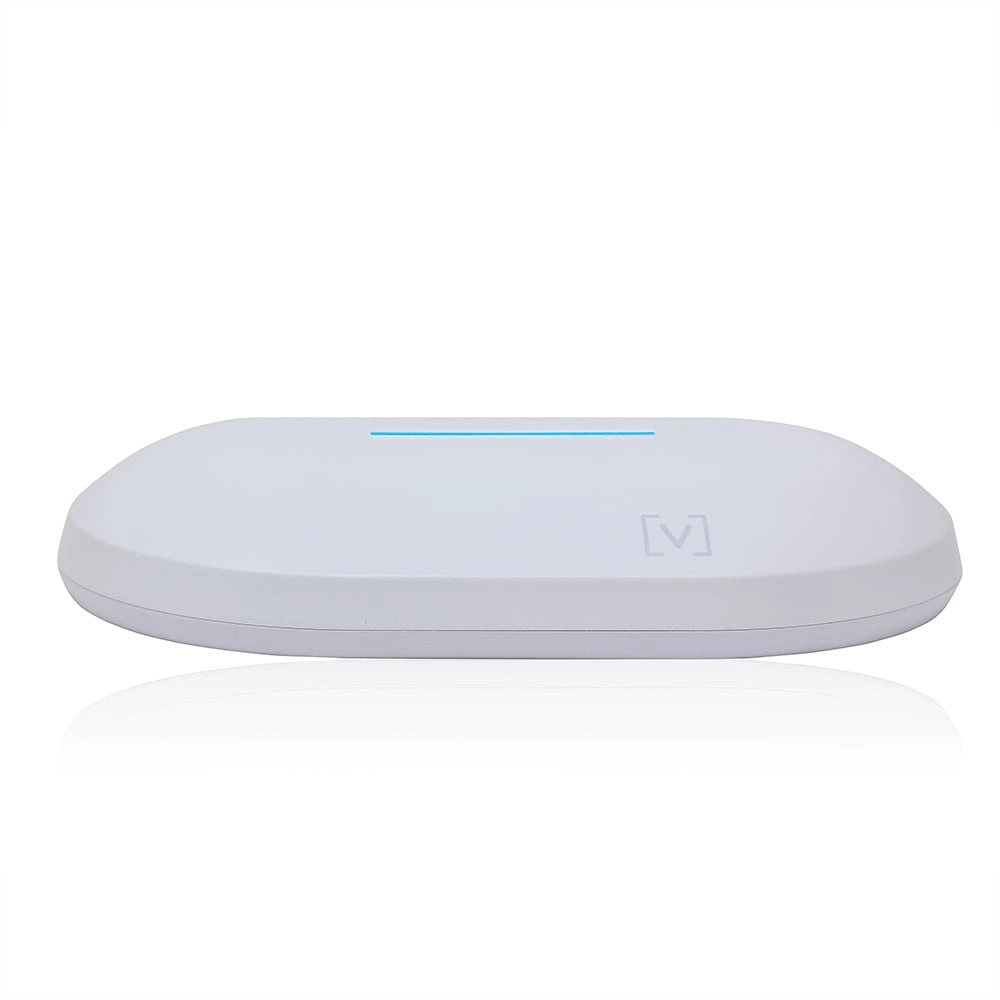

Alta Labs AP6-PRO

Name: Alta Labs AP6-PRO
Brand: Alta Labs
SKU: 348158
Availability: InStock

Best offer

AED

707⁵²

Key Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: No
Maximum data transfer rate (2.4 GHz): 573Mbit/s
Maximum data transfer rate (5 GHz): 5800Mbit/s
Command-line interface (CLI): No
Fit AP mode features: 802.11k & 802.11v smart roaming
Fast roaming: Yes
Internal RJ-45 ports quantity: 1
Antenna direction type: Omni-directional
PoE adapter included: No
Service Set Identifier (SSID) features: Multiple SSIDs, SSID Broadcast
Antenna gain level (max): 4.3dBi
Maximum data transfer rate: 6300Mbit/s
Placement: Ceiling, Wall

Specifications

Features

Quality of Service (QoS) support

✓

BeamForming

✓

Security algorithms

WPA-Enterprise, WPA2-PSK, WPA3-PSK

MIMO

✓

Product colour

White

Antenna gain level (max)

4.30 dBi

Maximum data transfer rate

6300 Mbit/s

Placement

Ceiling, Wall

DC voltage range

42.5 - 57 V

Fast roaming

✓

Fit AP mode features

802.11k & 802.11v smart roaming

Maximum data transfer rate (5 GHz)

5800 Mbit/s

Maximum data transfer rate (2.4 GHz)

573 Mbit/s

5 GHz

✓

6 GHz

✗

2.4 GHz

✓

Weight & dimensions

Weight

400 g

Height

32 mm

Depth

190 mm

Width

125 mm

Management features

Command-line interface (CLI)

✗

Power

Power consumption (max)

25 W

Power over Ethernet (PoE)

✓

Performance

Wi-Fi roaming

✓

Design

International Protection (IP) code

IP54

Housing material

Polycarbonate (PC)

Reset button

✓

LED indicators

Yes

Antenna direction type

Omni-directional

Computer system

Built-in processor

✓

Antenna type

Internal

Packaging content

Mounting kit

✓

PoE adapter included

✗

Network

Bluetooth

✓

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q

VLAN support

✓

Cabling technology

10/100/1000Base-T(X)

MIMO type

Multi User MIMO

Ethernet LAN data rates

100

Ports & interfaces

Ethernet LAN (RJ-45) ports

WAN connection

Ethernet (RJ-45)

Internal RJ-45 ports quantity

Operational conditions

Operating relative humidity (H-H)

5 - 95 %

Technical details

Sustainability compliance

✓

Spread spectrum method

OFDMA

Compliance certificates

CE, Federal Communications Commission (FCC)

Security

Service Set Identifier (SSID) features

Multiple SSIDs, SSID Broadcast

Product Details

AP6 Professional and AP6 Alta Labs creates revolutionary networking technology that is driven by our proprietary software and hardware designs. Built with Qualcomm WiFi 6 Networking Platform High-Performance WiFi 6 delivering corner-to-corner Gigabit class connectivity. Mobile App Monitor and manage your networks from the convenience of your mobile device. Seamless Roaming • Fully Automatic, 802.11k/v • With Optional 11r Versatile Mount • Quick Mount™ Technology for Simple Mounting • Ceiling or Wall-Mountable • Compatible with Drop-Ceilings 4096 QAM WiFi 6 with WiFi 7 Benefits 6.3 Gbps combined WiFi Capacity

Files

Product Brochure

mmo_113171938_1689001359_2985_11268.pdf

PDF• 8 MB

Quick Start Guide

mmo_113171938_1689001414_3265_24339.pdf

PDF• 11.2 MB
