AC-TOP
AC-TOP
AC-TOP

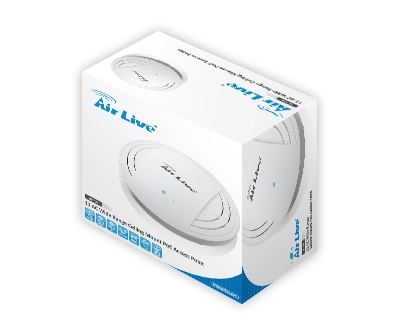

AirLive AC-TOP

Best offer
AED
32000

Key Features

  • 2.4 GHz: Yes
  • 5 GHz: Yes
  • Number of SSID supported: 32
  • Service Set Identifier (SSID) features: Multiple SSIDs
  • Antenna gain level (max): 3dBi
  • Maximum data transfer rate: 1200Mbit/s
  • Placement: Ceiling
  • Wi-Fi Multimedia (WMM)/(WME): Yes
  • Antenna type: Internal
  • Cabling technology: 10/100/1000Base-T(X)
  • Auto MDI/MDI-X: Yes
  • Ethernet LAN data rates: 10, 100Mbit/s
  • Wireless isolation: Yes
  • Product colour: White
  • Flash memory: 16MB
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Antennas quantity
4
Internal memory
64 MB
Security algorithms
802.1x RADIUS, EAP, WEP, WPA-PSK, WPA-RADIUS, WPA2-PSK
MIMO
✓
Transmitting power (FCC)
26 dBm
Product colour
White
Antenna gain level (max)
3 dBi
Maximum data transfer rate
1200 Mbit/s
Placement
Ceiling
5 GHz
✓
2.4 GHz
✓

Packaging data

Package type
Box
Package weight
740 g
Package height
67 mm
Package depth
216 mm
Package width
290 mm

Weight & dimensions

Weight
306 g
Height
30 mm
Depth
176 mm
Width
176 mm

Management features

Web-based management
✓

Power

AC input voltage
12 V
Input current
1 A
Power over Ethernet (PoE)
✓

Wireless LAN features

Wi-Fi Multimedia (WMM)/(WME)
✓

Computer system

Processor model
MT7620A
Built-in processor
✓
Antenna type
Internal

Packaging content

Quick start guide
✓

Network

Networking standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Management protocols
SNMP v1/v2c
VLAN support
✓
Cabling technology
10/100/1000Base-T(X)
Auto MDI/MDI-X
✓
Ethernet LAN data rates
10, 100
Wireless isolation
✓

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90 %
Storage relative humidity (H-H)
0 - 95 %

Technical details

Certification
CE, FCC

Memory

Flash memory
16 MB

Security

MAC address filtering
✓
Auto Wireless Distribution System (WDS)
✓
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
32

Logistics data

Master (outer) case gross weight
8230 g
Master (outer) case height
310 mm
Master (outer) case length
365 mm
Master (outer) case width
450 mm

Product Details

Ceiling Mount Dual Band PoE AP The AC-TOP is a ceiling mount AP with 1200Mbps 11AC MIMO that operates in both 2.4GHz and 5GHz spectrum. It is designed for hotels, offices, and villa. It is PoE powered which makes installation much easier. Double the Wireless Distance Combing hi-power with 4 MIMO antennas, the AC.TOP has twice the coverage of average 11AC AP. This allows you to get wider coverage and reduce the number of AP necessary. Central Wireless Management The AC.TOP can work with our AirLive Central software. So you can perform wireless configurations and firmware upgrade over a group of AP at the same time. Best of all, the software is free. Built-in Radius Server The AP has built-in Radius authentication server for up to 256 users. That means each person in the company can have separate WiFi password. This makes your network much more secure. Wireless Repeater The AC.TOP is equipped with both AP and WDS repeater mode. You can use it to extend the wireless coverage over the air. Up to 100 users The AC.TOP has concurrent dual band radios which can accommodate up to 100 wireless user at the same time. Comprehensive Wireless Function The AC.TOP’s firmware is loaded with many useful features such as multiple SSID(up to 32), VLAN, MAC access control, wireless scheduling, and setup wizard.

Files

Product Brochure

mmo_29728426_1591770154_3518_28717.pdf

PDF• 4 MB

User manual

mmo_29728426_1591770163_7876_27359.pdf

PDF• 5.1 MB
