Cisco SG350XG-2F10-K9-EU 12-ports

Name: Cisco SG350XG-2F10-K9-EU 12-ports
Brand: Cisco
SKU: 347751
Availability: InStock

Best offer

AED

15 491¹⁷

Key Features

Switch layer: L2/L3
Basic switching RJ-45 Ethernet ports quantity: 12
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
Number of queues: 8
Static route: Yes
Port mirroring: Yes
Power over Ethernet plus (PoE+) ports quantity: 12
Jumbo frames: 9000
SFP+ module slots quantity: 2
Switching capacity: 200Gbit/s
MAC address table: 32000entries
Access Control List (ACL): Yes
Jumbo frames support: Yes
Forwarding rate: 178.56Mpps

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

341232 h

Quality of Service (QoS) support

✓

Noise level

52.20 dB

Security algorithms

802.1x RADIUS

Rack mounting

✓

Stackable

✓

Virtual LAN features

Multicast VLAN, Port-based VLAN, Private VLAN, VLAN mapping, Voice VLAN

Product colour

Black

Packet buffer memory

3 MB

SFP+ module slots quantity

Switching capacity

200 Gbit/s

MAC address table

32000 entries

Access Control List (ACL)

✓

Jumbo frames support

✓

Forwarding rate

178.56 Mpps

Multicast support

✓

Static route

✓

Switch layer

L2/L3

Packaging data

Package weight

5410 g

Package height

108 mm

Package depth

545.10 mm

Package width

320.30 mm

Weight & dimensions

Weight

2930 g

Height

44 mm

Depth

440 mm

Width

202.50 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

ARP inspection

✓

Power

Power plug type

Type C

AC input voltage

100 - 240 V

AC input frequency

50 Hz

Power consumption (max)

494.50 W

Power over Ethernet (PoE)

✗

Total Power over Ethernet (PoE) budget

375 W

Design

Stacking

✓

Reset button

✓

LED indicators

Yes

Form factor

Computer system

Built-in processor

✓

Packaging content

Rubber feet

Power supply included

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

VLAN support

✓

Number of VLANs

4094

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

Rate limiting

✓

Cable length detection

✓

10G support

✓

Link aggregation

✓

Flow control support

✓

Jumbo frames

9000

Port mirroring

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

Console port

RJ-45

USB 2.0 ports quantity

Combo SFP ports quantity

Power over Ethernet plus (PoE+) ports quantity

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

218.70 BTU/h

Technical details

Certification

CE, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, UL (UL 60950)

Switch type

Managed

Memory

Flash memory

256 MB

Protocols

IPv4 & IPv6 features

IPv6 First Hop Security (FHS)

GARP VLAN Registration Protocol (GVRP)

✓

Data transmission

Number of queues

Security

IP Source Guard (IPSG)

✓

SSH/SSL support

✓

Broadcast storm control

✓

IP-MAC-Port binding

✓

Authentication

Guest VLAN, Web-based authentication

DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping

Logistics data

Harmonized System (HS) code

85176990

Product Details

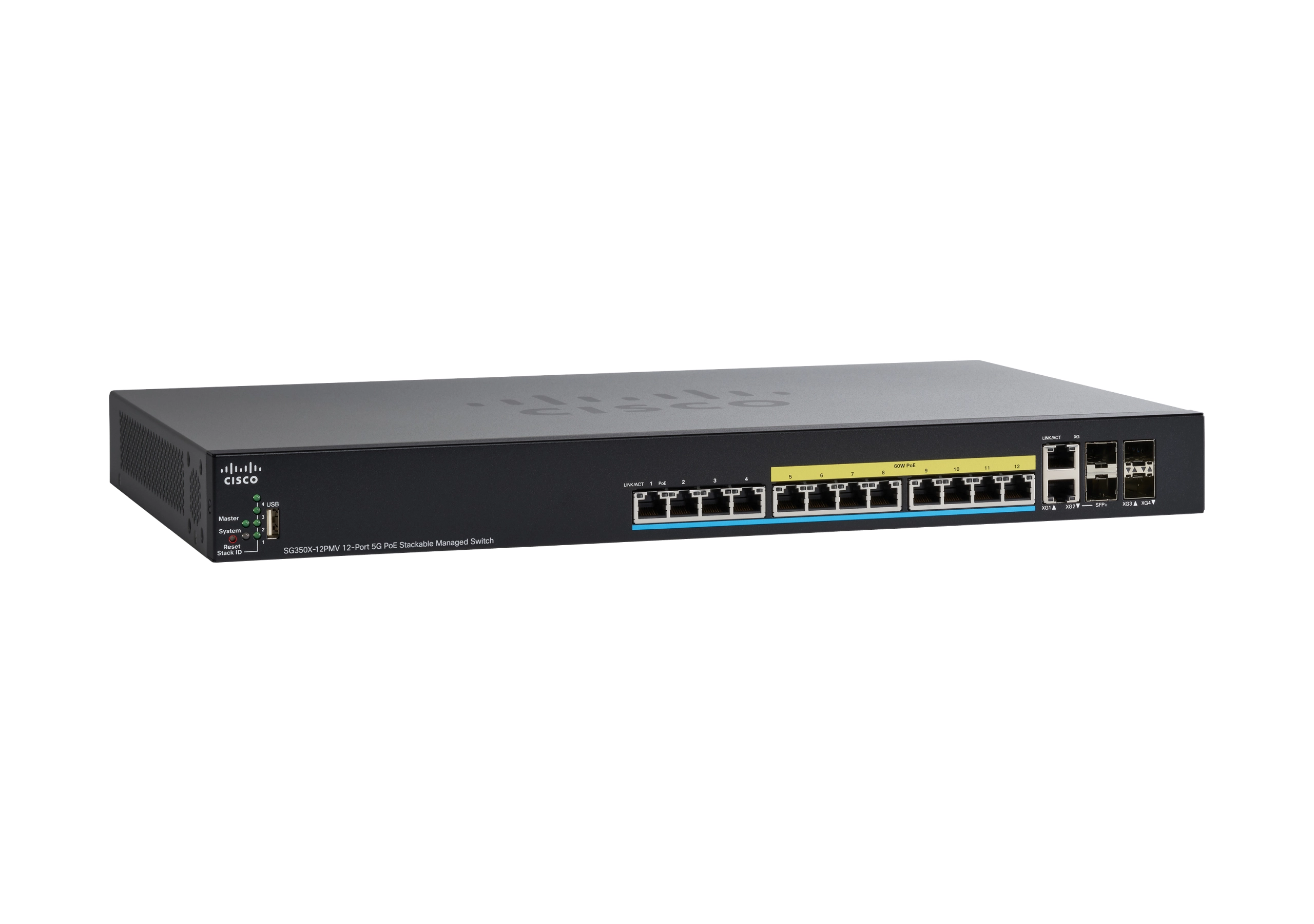

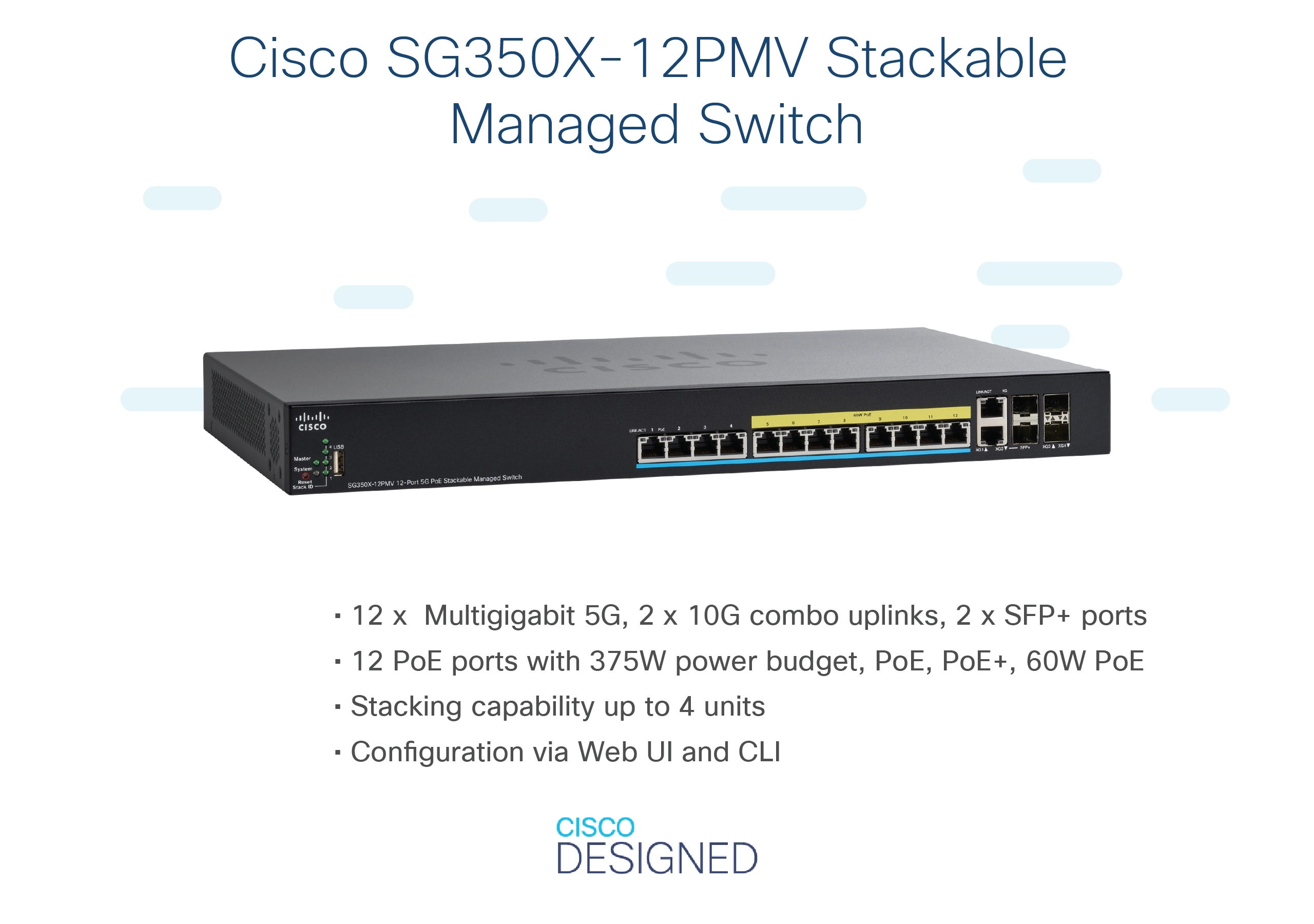

The Cisco SG350X-12PMV Switch helps you affordably deploy the high-bandwidth applications and technologies essential to competing in today’s fast-paced, connected world. This next-generation switch is built on Gigabit and 10 Gigabit Ethernet connectivity to give you the highest level of performance. Copper and fiber connection options provide the flexibility to configure your network to handle current applications while also planning for future growth. At the same time, these switches are easy to deploy and manage.
