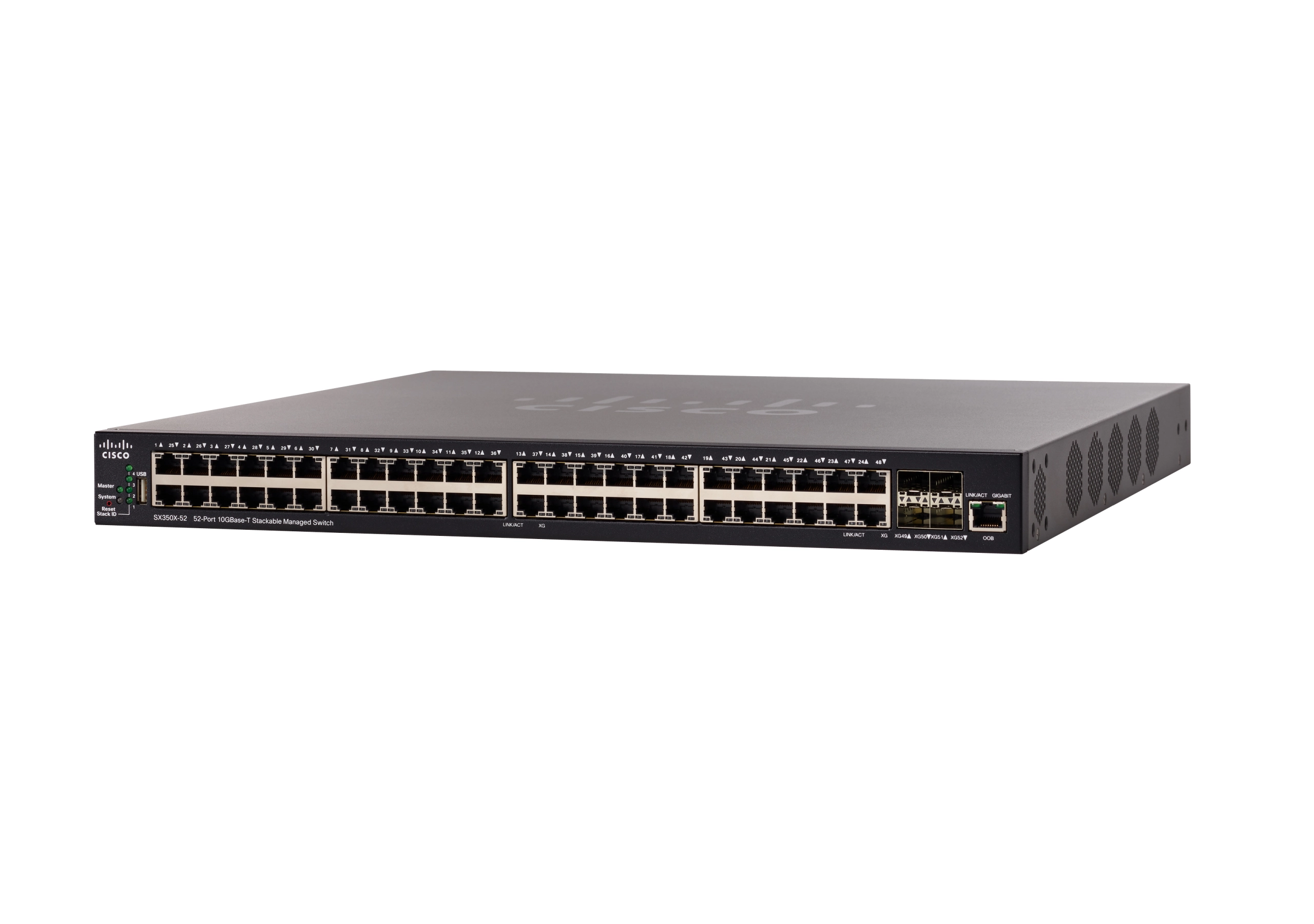

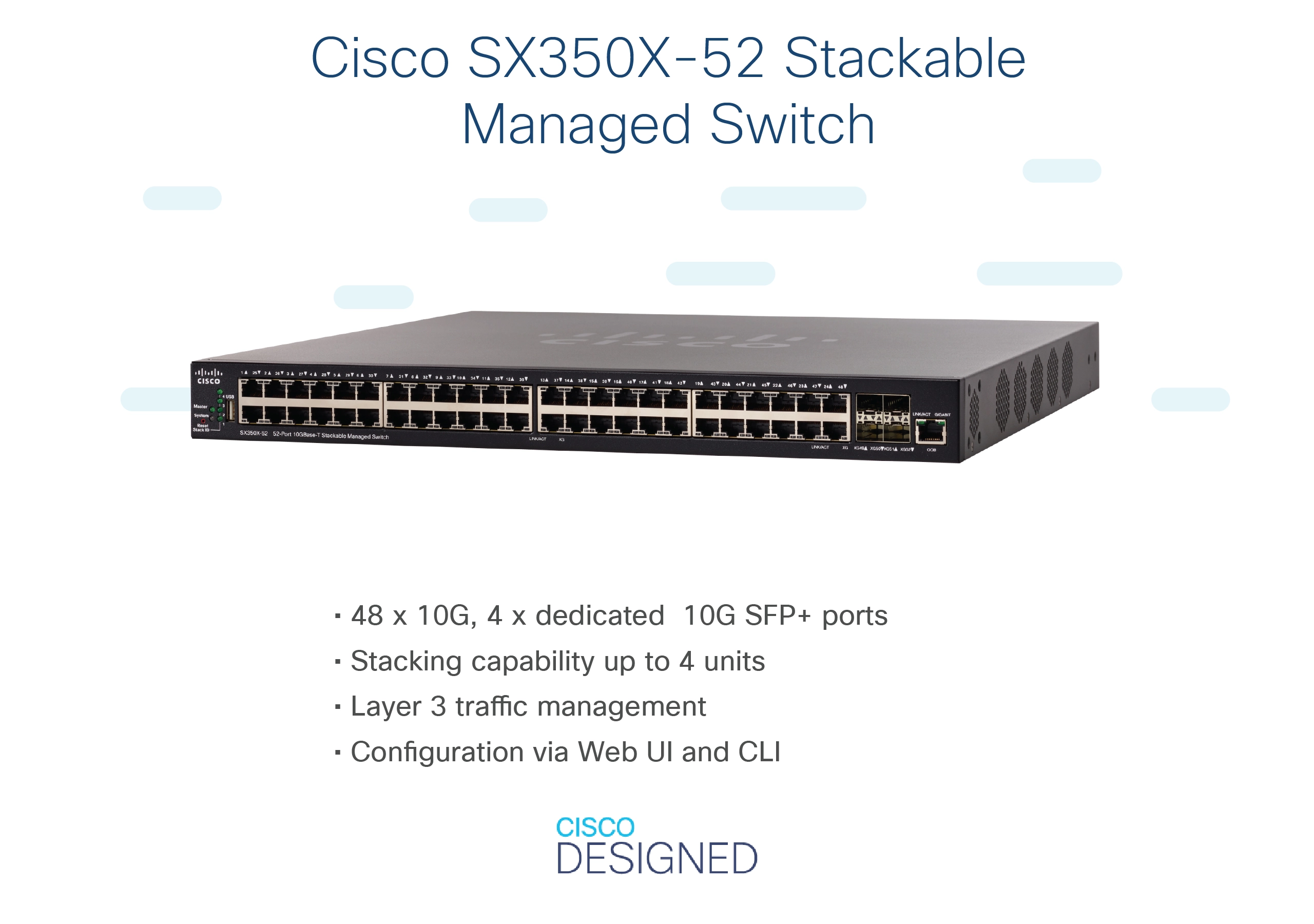

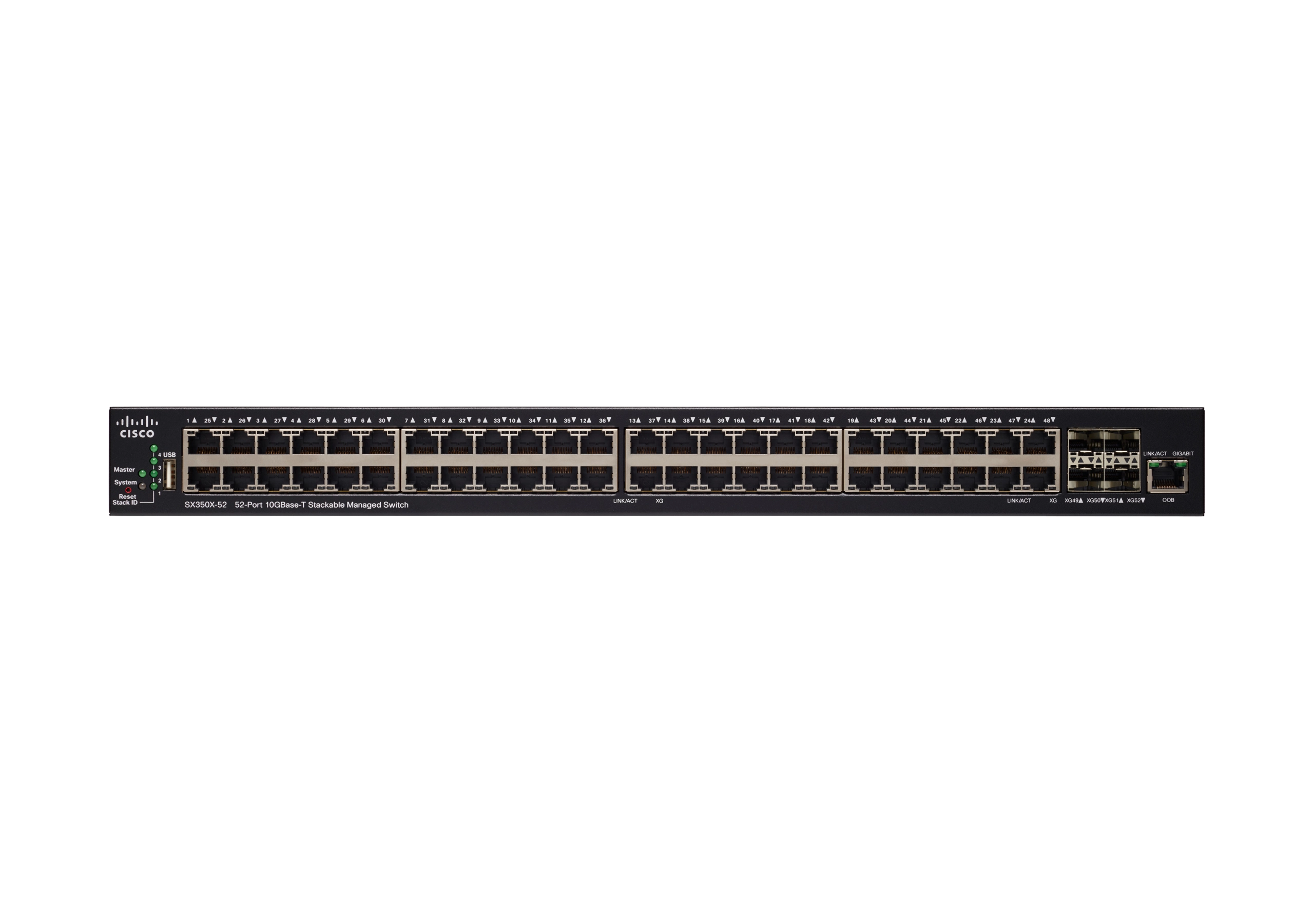

Cisco SG350X48PK9NA 48-Ports

Key Features

Switch layer: L2/L3
Physical stacking (units): 4
Basic switching RJ-45 Ethernet ports quantity: 48
2.5G Ethernet (copper) ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Throughput: 130.94Mpps
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping
Uplink ports quantity: 4
Number of queues: 8
Number of static routes: 8000
Number of IP interfaces: 256
Static route: Yes
Number of multicast groups filtered: 4000
Gigabit Ethernet (copper) ports quantity: 48
Port mirroring: Yes

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

195746 h

Compatible operating systems

Linux, Mac OS X, Microsoft Windows

Internal memory

512 MB

Processor frequency

800 MHz

Quality of Service (QoS) support

✓

Security algorithms

802.1x RADIUS

Rack mounting

✓

Noise level

54.20 dB

Stackable

✓

Virtual LAN features

IP subnet–based VLAN, MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, VLAN mapping, Voice VLAN

Product colour

Black

Packet buffer memory

24 MB

Queue scheduling algorithms

SP, WRR+SP, Weighted Round Robin (WRR)

SFP+ module slots quantity

Telnet

✓

Access Control List (ACL)

✓

Access Control List (ACL) rules

512

Switching capacity

176 Gbit/s

MAC address table

32000 entries

Authentication type

IEEE 802.1x, RADIUS

Jumbo frames support

✓

Forwarding rate

755.81 Mpps

Multicast support

✓

Static route

✓

Switch layer

L2/L3

Packaging data

Package weight

7150 g

Package height

108 mm

Package depth

545.10 mm

Package width

476 mm

Weight & dimensions

Weight

7300 g

Height

44 mm

Depth

440 mm

Width

350 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

System event log

✓

ARP inspection

✓

Number of multicast groups filtered

4000

Power

Power plug type

Type C

AC input voltage

100 - 240 V

AC input frequency

50 Hz

Power consumption (max)

234.40 W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

60 W

Total Power over Ethernet (PoE) budget

740 W

Power saving mode (EEE)

✓

Number of power supply units

Performance

sFlow

✓

Physical stacking (units)

Wireless LAN features

IGMP snooping

✓

Design

Stacking

✓

Reset button

✓

LED indicators

Yes

Form factor

Computer system

Built-in processor

✓

Packaging content

Rubber feet

Quick start guide

✓

Resource CD

✓

Cables included

AC, Serial

Power supply included

✓

Rack mount kit

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Management protocols

2, 3, CLI, HTTP, HTTPS, RMON1, RMON2, RMON3, RMON9, SNMP v1, SNMP1, SNMPv2c, SNMPv3, SSH, Telnet

VLAN support

✓

Number of VLANs

4094

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

Rate limiting

✓

Active link detection

✓

Cable length detection

✓

Flow control support

✓

Copper ethernet cabling technology

1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T

10G support

✓

Link aggregation

✓

Jumbo frames

9000

Port mirroring

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

Fiber optic connector

SFP

SFP module slots quantity

Cable types supported

Cat5, Cat5e, Cat6, Cat6a, Cat7

Console port

RJ-45

USB 2.0 ports quantity

Combo SFP ports quantity

Power over Ethernet plus (PoE+) ports quantity

Gigabit Ethernet (copper) ports quantity

Uplink ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

2.5G Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

1429.40 BTU/h

Technical details

Certification

CE, CE mark, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, UL (UL 60950)

Switch type

Managed

Memory

Flash memory

256 MB

Protocols

IPv4 & IPv6 features

IPv6 First Hop Security (FHS)

GARP VLAN Registration Protocol (GVRP)

✓

Intra-Site Automatic Tunnel Addressing Protocol (ISATAP)

✓

Data transmission

Number of IP interfaces

256

Number of static routes

8000

Number of queues

Throughput

130.94 Mpps

Security

MAC address filtering

✓

IP Source Guard (IPSG)

✓

SSH/SSL support

✓

Broadcast storm control

✓

Static port security

✓

Loop protection

✓

BPDU filtering/protection

✓

DoS attack prevention

✓

IP-MAC-Port binding

✓

Authentication

Guest VLAN, Web-based authentication

Root protection

✓

DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping

Ethernet LAN features

IP routing

✓

Logistics data

Harmonized System (HS) code

85176990

Product Details

The Cisco SG350X-48PV Switch helps you affordably deploy the high-bandwidth applications and technologies essential to competing in today’s fast-paced, connected world. This next-generation switch is built on Gigabit and 10 Gigabit Ethernet connectivity to give you the highest level of performance. Copper and fiber connection options provide the flexibility to configure your network to handle current applications while also planning for future growth. At the same time, these switches are easy to deploy and manage.

Files

Product Brochure

mmo_34353778_1515587575_4474_26591.pdf

PDF• 714.7 KB

User manual

mmo_34353778_1515587585_7685_32162.pdf

PDF• 911.2 KB

Videos

Portfolio Overview Video

MP4• 8.8 MB
