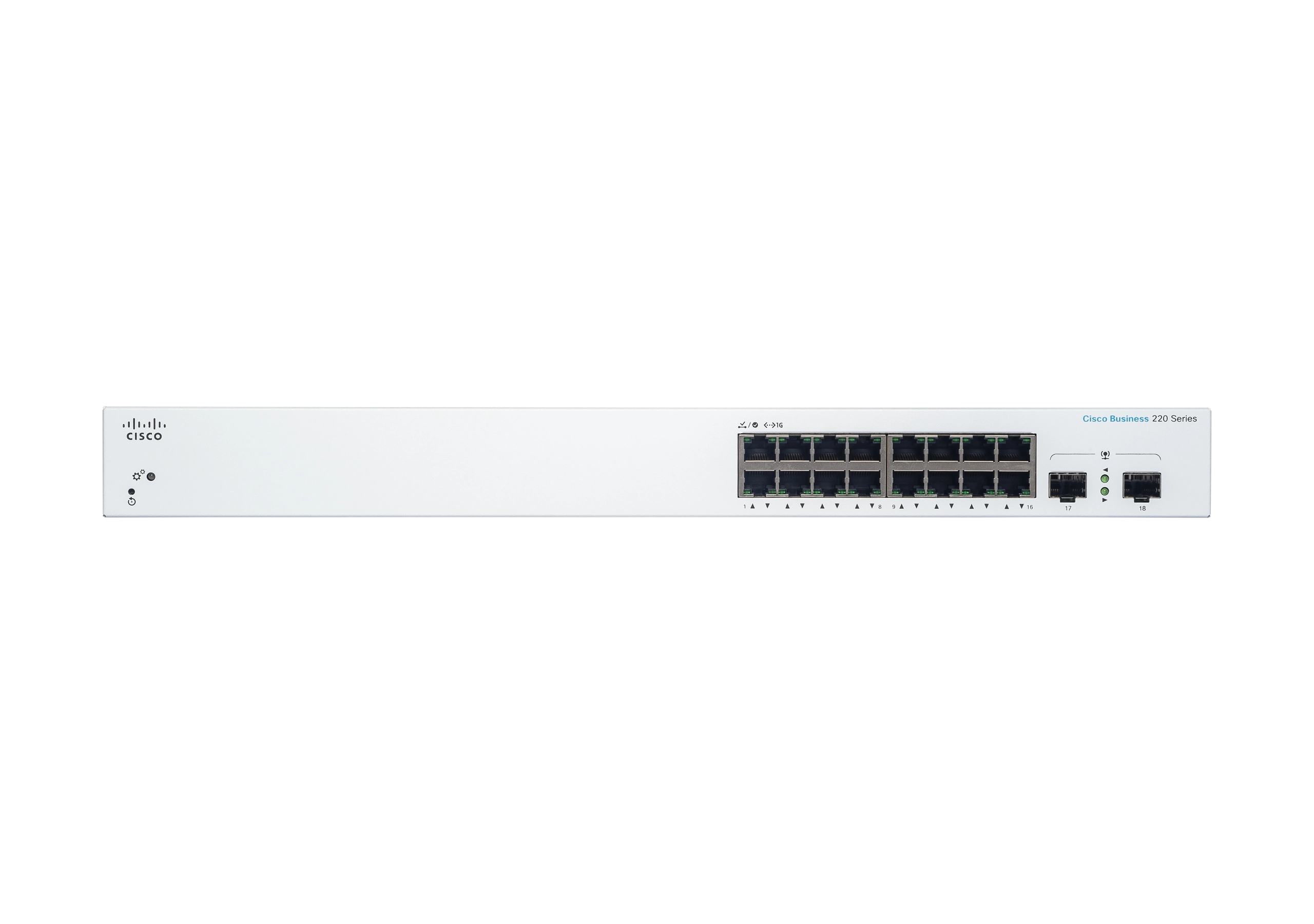

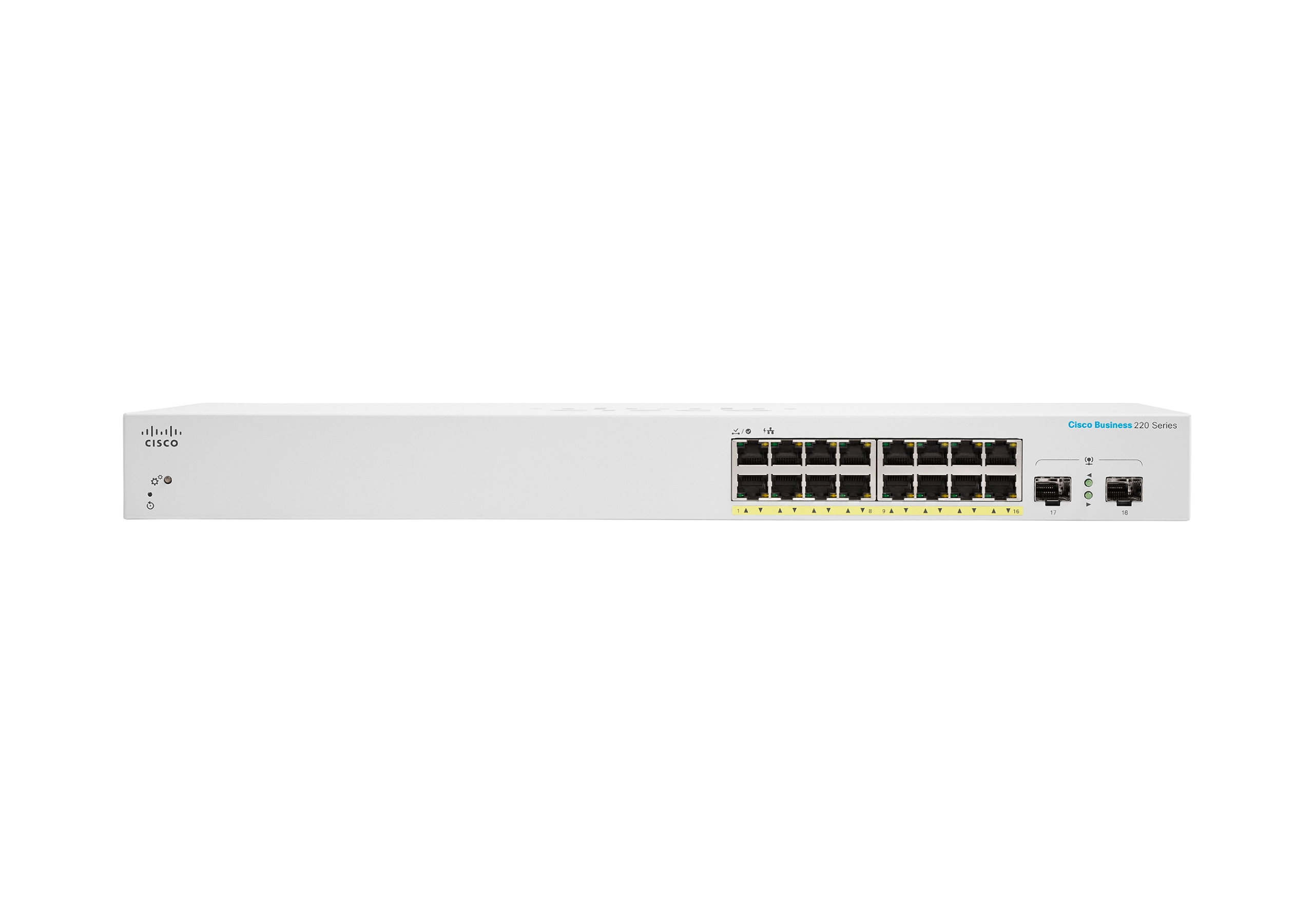

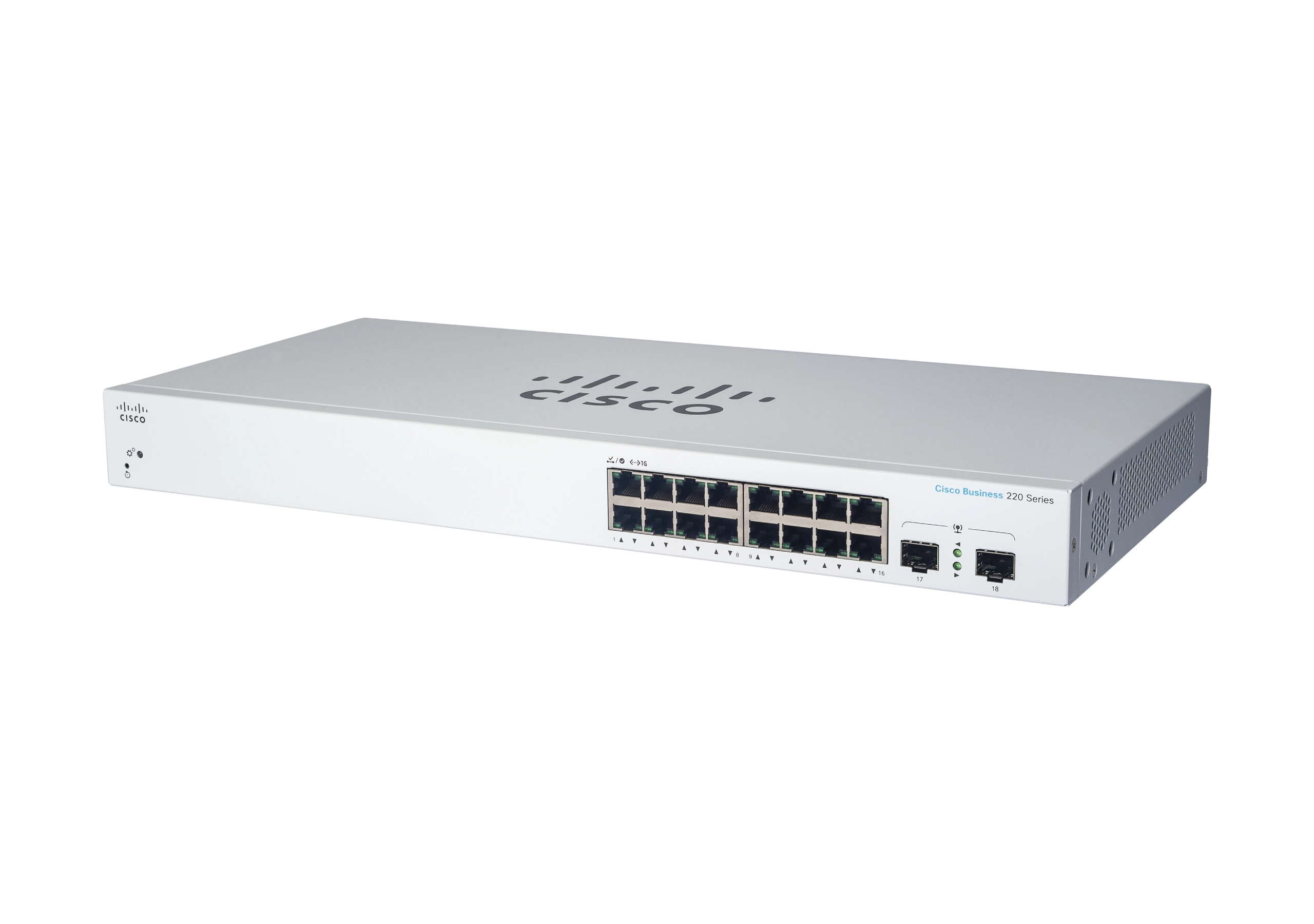

Cisco CBS220-16P-2G - 16-ports

Name: Cisco CBS220-16P-2G - 16-ports
Brand: Cisco
SKU: 641970
Availability: InStock

Best offer

AED

1 355⁶⁷

Key Features

Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
DHCP features: DHCP client
Number of multicast groups filtered: 256
Port mirroring: Yes
Jumbo frames: 9216
IGMP entries: 256
Switching capacity: 36Gbit/s
MAC address table: 8192entries
Access Control List (ACL): Yes
Access Control List (ACL) rules: 512
Configuring Location Settings (CLI): Yes
Jumbo frames support: Yes
Multicast support: Yes

Specifications

Features

Country of origin

China

Market segment

Business

MIB support

Quality of Service (QoS) support

✓

Security algorithms

SSL/TLS

Rack mounting

✓

Product colour

White

Switching capacity

36 Gbit/s

MAC address table

8192 entries

Access Control List (ACL)

✓

Access Control List (ACL) rules

512

Configuring Location Settings (CLI)

✓

Jumbo frames support

✓

Multicast support

✓

Switch layer

Packaging data

Package weight

3950 g

Package height

106.70 mm

Package depth

535.90 mm

Package width

342.90 mm

Weight & dimensions

Weight

3030 g

Height

43.90 mm

Depth

439.90 mm

Width

202.40 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

System event log

✓

Number of multicast groups filtered

256

Power

Power plug type

Type C

AC input frequency

50 - 60 Hz

Power over Ethernet (PoE)

✗

Total Power over Ethernet (PoE) budget

130 W

Wireless LAN features

IGMP snooping

✓

Design

Reset button

✓

LED indicators

Yes

Packaging content

Switch

Network

Networking standards

IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Management protocols

SNMP

VLAN support

✓

Number of VLANs

256

Auto MDI/MDI-X

✓

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

10G support

✗

Link aggregation

✓

Flow control support

✓

Jumbo frames

9216

Port mirroring

✓

Ports & interfaces

SFP module slots quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

38.90 BTU/h

Technical details

Switch type

Managed

Protocols

GARP VLAN Registration Protocol (GVRP)

✓

Security

MAC address filtering

✓

SSH/SSL support

✓

Broadcast storm control

✓

Loop protection

✓

BPDU filtering/protection

✓

IGMP entries

256

DHCP features

DHCP client

Logistics data

Harmonized System (HS) code

85176990

Product Details

The Cisco Business CBS220-16P-2G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
