Cisco SG550XG-8F8T 16-ports

Name: Cisco SG550XG-8F8T 16-ports
Brand: Cisco
SKU: 347661
Availability: InStock

Best offer

AED

13 234³¹

Key Features

Switch layer: L2/L3
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
DHCP features: DHCP option 82, DHCP relay, DHCP server
Access Control List (ACL) IPv4 entries: 2000
Access Control List (ACL) IPv6 entries: 2000
Number of queues: 8
Number of static routes: 7168
Multicast Listener Discovery (MLD) snooping: v2
Static route: Yes
Port mirroring: Yes
Policy-based routing: Yes
IP routing: Yes
Jumbo frames: 9000
Queue scheduling algorithms: Weighted Round Robin (WRR)

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

412309 h

Internal memory

512 MB

Processor frequency

1300 MHz

MIB support

CISCOSB-mcmngr-MIB

Quality of Service (QoS) support

✓

Noise level

49.90 dB

Security algorithms

802.1x RADIUS, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS

Stackable

✓

Virtual LAN features

IP subnet–based VLAN, MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, VLAN mapping, Voice VLAN

Product colour

Black

Packet buffer memory

3 MB

Queue scheduling algorithms

Weighted Round Robin (WRR)

SFP+ module slots quantity

Switching capacity

320 Gbit/s

MAC address table

32000 entries

Access Control List (ACL)

✓

Authentication type

HWTACACS+, IEEE 802.1x

Jumbo frames support

✓

Forwarding rate

238.08 Mpps

Static route

✓

Multicast Listener Discovery (MLD) snooping

Switch layer

L2/L3

Packaging data

Package weight

4840 g

Package height

108 mm

Package depth

545.10 mm

Package width

388.10 mm

Weight & dimensions

Weight

3790 g

Height

44 mm

Depth

440 mm

Width

257 mm

Management features

Web-based management

✓

Firmware upgradeable

✓

ARP inspection

✓

Power

Power connector

DC-in jack

Power plug type

Type C

AC input voltage

100 - 240 V

Power consumption (typical)

57.70 W

AC input frequency

50 Hz

Power over Ethernet (PoE)

✗

Number of power supply units

Redundant power supply (RPS) support

✓

Design

Reset button

✓

LED indicators

Yes

Form factor

Computer system

Built-in processor

✓

Packaging content

Rubber feet

Quick start guide

✓

Cables included

Power supply included

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z

Supported network protocols

IPv4, IPv6

VLAN support

✓

Number of VLANs

4094

Spanning tree protocol

✓

Head-of-line (HOL) blocking

✓

Rate limiting

✓

Ethernet LAN data rates

10, 100, 1000

10G support

✓

Link aggregation

✓

Jumbo frames

9000

Policy-based routing

✓

Port mirroring

✓

Ports & interfaces

Console port

RJ-45

USB 2.0 ports quantity

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

196.88 BTU/h

Technical details

Certification

CE, CSA (CSA 22.2), FCC Part 15 (CFR 47), UL (UL 60950)

Switch type

Managed

Memory

Flash memory

256 MB

Protocols

Routing protocols

RIP-2, VRRP

IPv4 & IPv6 features

Dual stack IPv4/IPv6, IPv6 Telnet, IPv6 ping, IPv6 tracert

GARP VLAN Registration Protocol (GVRP)

✓

Data transmission

Number of static routes

7168

Number of queues

Security

Broadcast storm control

✓

Loop protection

✓

BPDU filtering/protection

✓

DoS attack prevention

✓

IP-MAC-Port binding

✓

Authentication

Web-based authentication

Access Control List (ACL) IPv6 entries

2000

Access Control List (ACL) IPv4 entries

2000

DHCP features

DHCP option 82, DHCP relay, DHCP server

Ethernet LAN features

IP routing

✓

Product Details

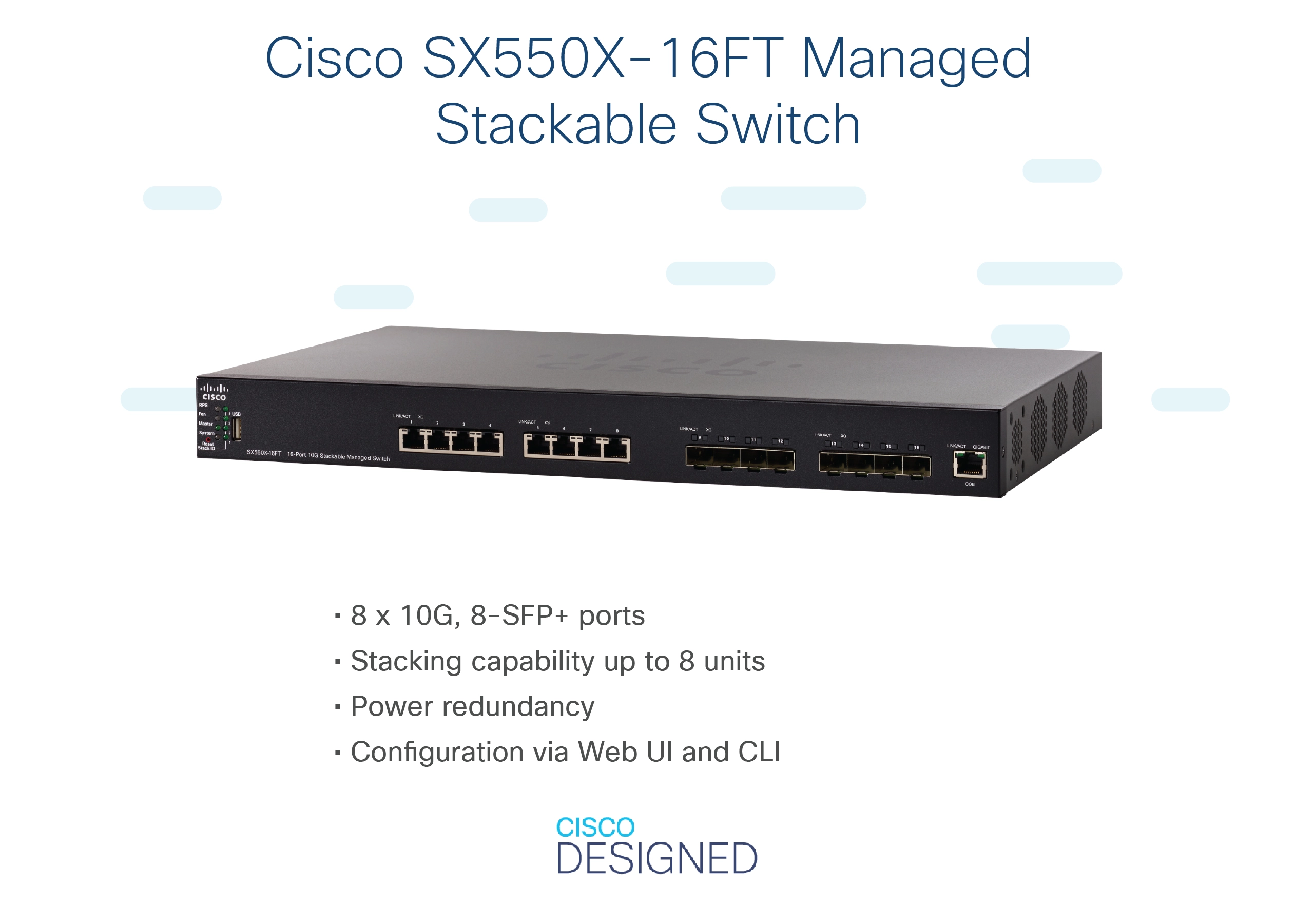

The Cisco SX550X-16FT Switch is a next-generation managed switch that offers excellent performance, rich features, and ease of use. With support for Layer 2 and 3 features, advanced security, routing, and energy-saving technology, it delivers a solid foundation for business applications today and in the future.

Files

Product Brochure

mmo_70332712_1600931326_6658_31054.pdf

PDF• 901.5 KB

Videos

Portfolio Overview Video
