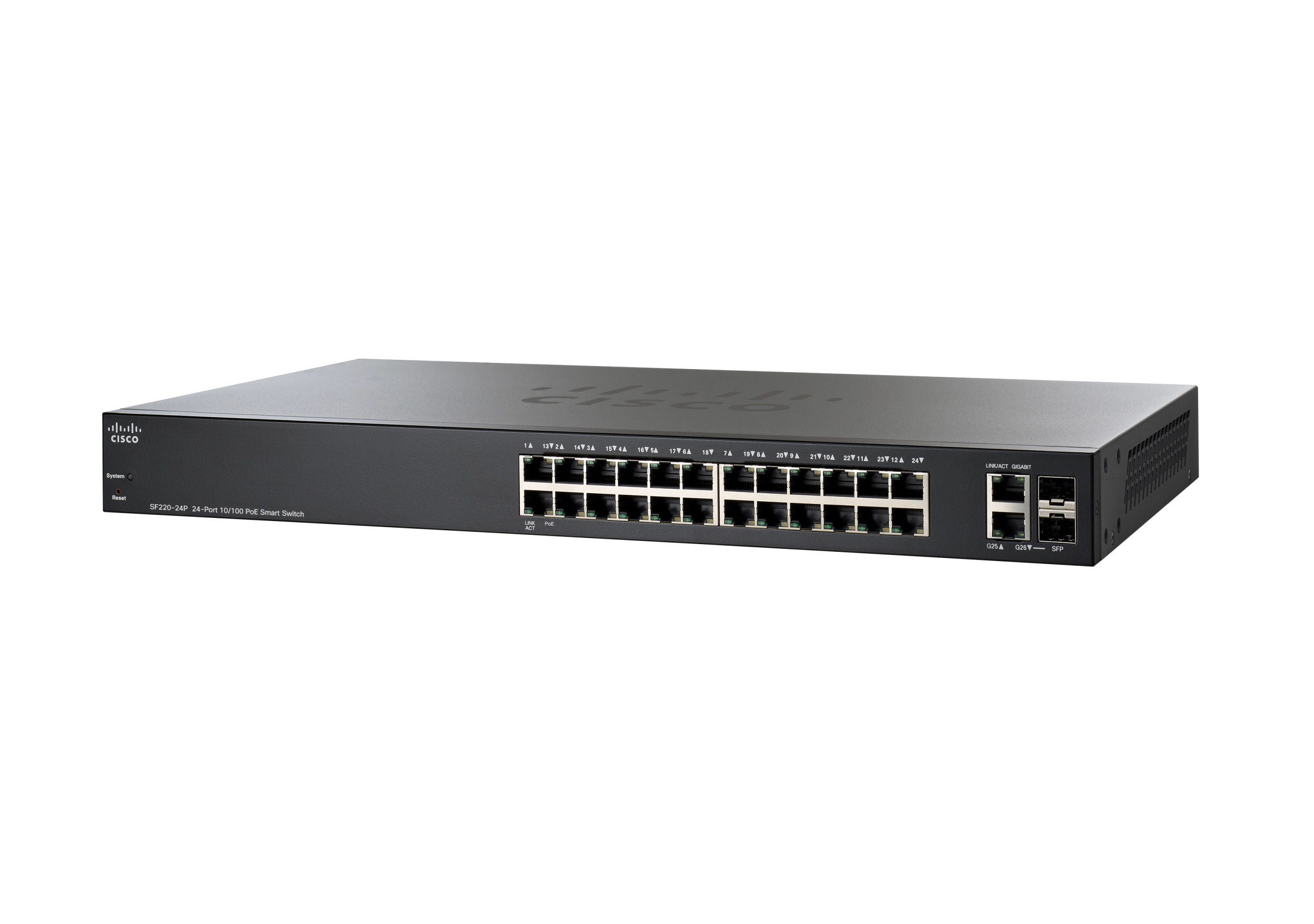

Cisco SF220-24-K9-EU 24-ports

Name: Cisco SF220-24-K9-EU 24-ports
Brand: Cisco
SKU: 347854
Availability: InStock

Best offer

AED

1 687⁹⁷

Key Features

Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
DHCP features: DHCP client, DHCP server
Number of queues: 8
Number of multicast groups filtered: 256
Fast Ethernet (copper) ports quantity: 24
Gigabit Ethernet (copper) ports quantity: 2
Port mirroring: Yes
Switching capacity: 8.8Gbit/s
MAC address table: 8192entries
Access Control List (ACL): Yes
Jumbo frames support: Yes
Multicast support: Yes
Number of power supply units: 1

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

603729 h

Internal memory

128 MB

MIB support

RFC2819

Quality of Service (QoS) support

✓

Noise level

41.90 dB

Product colour

Black

Switching capacity

8.80 Gbit/s

MAC address table

8192 entries

Access Control List (ACL)

✓

Jumbo frames support

✓

Multicast support

✓

Switch layer

Packaging data

Package weight

3800 g

Package height

108 mm

Package depth

545.10 mm

Package width

320.30 mm

Weight & dimensions

Weight

3640 g

Height

44 mm

Depth

440 mm

Width

202.50 mm

Management features

Web-based management

✓

System event log

✓

Number of multicast groups filtered

256

Power

Power plug type

Type C

AC input voltage

100 - 240 V

Power consumption (typical)

9.20 W

AC input frequency

50 Hz

Power over Ethernet (PoE)

✗

Total Power over Ethernet (PoE) budget

180 W

Number of power supply units

Wireless LAN features

IGMP snooping

✓

Design

LED indicators

Yes

Packaging content

Quick Start guide

Quick start guide

✓

Cables included

Power supply included

✓

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x

VLAN support

✓

Number of VLANs

256

Head-of-line (HOL) blocking

✓

Rate limiting

✓

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T

Link aggregation

✓

Flow control support

✓

Port mirroring

✓

Ports & interfaces

Fiber optic connector

SFP

Fiber ports quantity

Combo SFP ports quantity

Fast Ethernet (copper) ports quantity

Gigabit Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90 %

Storage relative humidity (H-H)

10 - 90 %

Heat dissipation

28 BTU/h

Technical details

Certification

C-tick, CE mark, CSA (CSA 22.2), FCC Part 15 (CFR 47) Class A, UL (UL 60950)

Switch type

Managed

Memory

Flash memory

32 MB

Data transmission

Number of queues

Security

SSH/SSL support

✓

Broadcast storm control

✓

DHCP features

DHCP client, DHCP server

Product Details

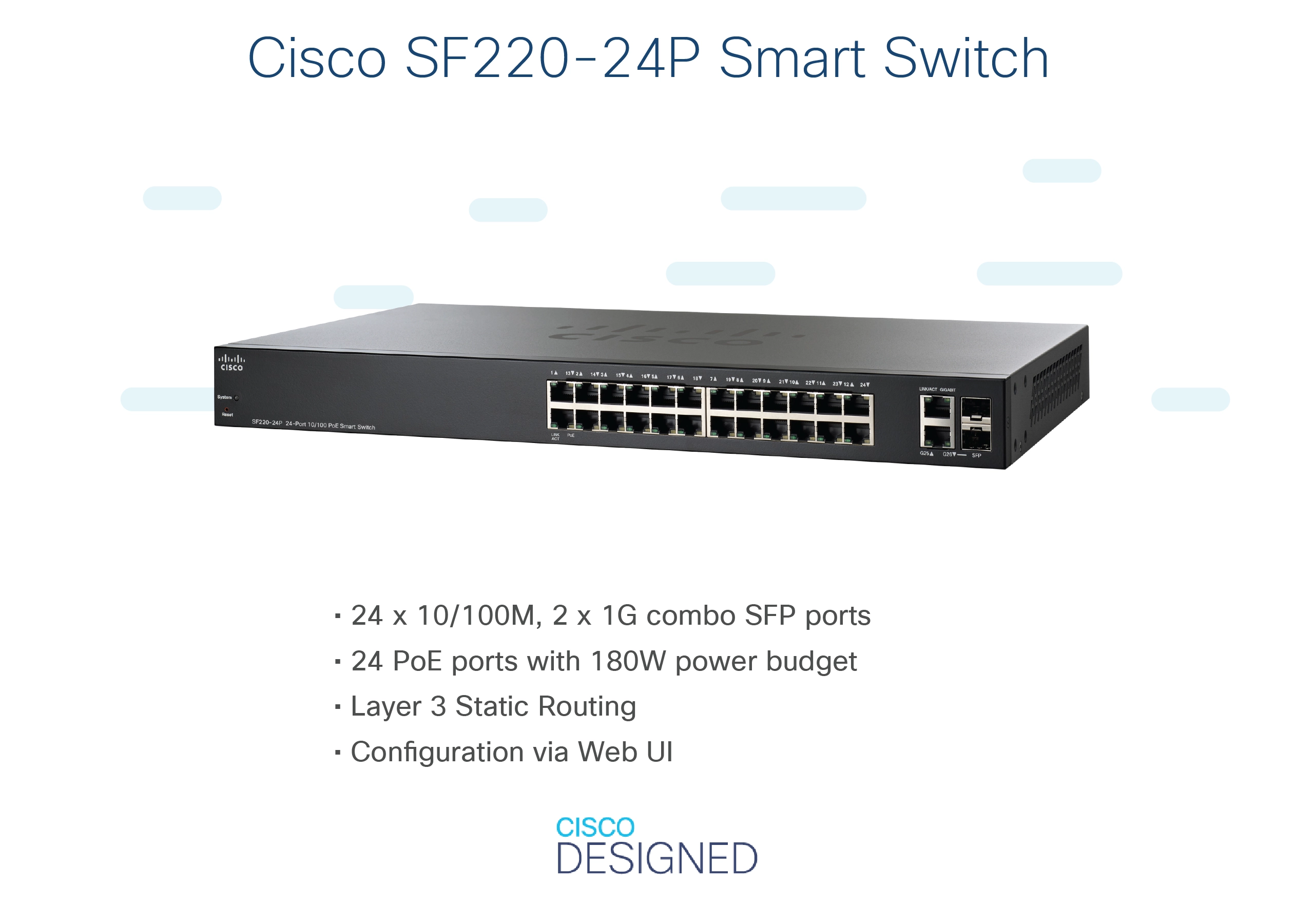

The Cisco SF220-24P Switch is a 24-port Fast Ethernet (10/100) Smart Managed switch with L2 features, Power over Ethernet, powerful performance, and reliability. It offers a suite of features, such as VLANs, QoS, link aggregation, and more to build a solid business network. Setup and configuration are simplified with intuitive, browser-based tools. It delivers outstanding value, providing comprehensive features designed for growing businesses while maintaining the affordability of smart switches. This switch is part of the Cisco small and midsize business portfolio and is an affordable smart switch equipped with security, performance, and ease of use to help build a solid business network.

Videos

Portfolio Overview Video

MP4• 8.8 MB
