Cisco WS-C2960L-16PS-LL 16-ports

Name: Cisco WS-C2960L-16PS-LL 16-ports
Brand: Cisco
SKU: 347307
Availability: InStock

Best offer

AED

950⁰⁰

Key Features

Switch layer: L2
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
DHCP features: DHCP client, DHCP server
Power over Ethernet plus (PoE+) ports quantity: 16
Switching capacity: 36Gbit/s
Full duplex: Yes
MAC address table: 16000entries
Access Control List (ACL): Yes
Jumbo frames support: Yes
Multicast support: Yes
ARP inspection: Yes
IGMP snooping: Yes
Form factor: 1U
Auto MDI/MDI-X: Yes

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

313496 h

Safety

IEC 60950-1 Second Edition

Electromagnetic compatibility

47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, CNS13438 Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, ICES003 Class A, KN22 Class A, VCCI Class A

Market segment

Business

Internal memory

512 MB

Processor frequency

800 MHz

MIB support

Quality of Service (QoS) support

✓

Security algorithms

SNMP, SSH

Rack mounting

✓

Virtual LAN features

Private VLAN

Product colour

Grey

Switching capacity

36 Gbit/s

Full duplex

✓

MAC address table

16000 entries

Access Control List (ACL)

✓

Jumbo frames support

✓

Multicast support

✓

Switch layer

Packaging data

Package weight

3700 g

Package height

160.30 mm

Package depth

349.20 mm

Package width

309.60 mm

Weight & dimensions

Height

44 mm

Depth

240 mm

Width

268 mm

Management features

ARP inspection

✓

Power

Power plug type

Type C

AC input voltage

110 - 240 V

Power consumption (typical)

19.30 W

AC input frequency

50 - 60 Hz

Input current

0.26 A

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

120 W

Wireless LAN features

IGMP snooping

✓

Design

LED indicators

Activity, Link, PoE, Speed, System

Form factor

Computer system

Built-in processor

✓

Packaging content

1 printed document

Network

Networking standards

IEEE 802.1D, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Management protocols

RMON, SNMPv3, Telnet

VLAN support

✓

Number of VLANs

4094

Auto MDI/MDI-X

✓

Spanning tree protocol

✓

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T

Ports & interfaces

SFP module slots quantity

Console port

RJ-45

Power over Ethernet plus (PoE+) ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating altitude (imperial)

0 - 3000 m

Operating relative humidity (H-H)

5 - 90 %

Non-operating altitude

0 - 4500 m

Operating altitude

0 - 3000 m

Storage relative humidity (H-H)

5 - 95 %

Technical details

Switch type

Managed

Memory

Flash memory

256 MB

Security

SSH/SSL support

✓

Broadcast storm control

✓

DHCP features

DHCP client, DHCP server

Logistics data

Harmonized System (HS) code

85176990

Product Details

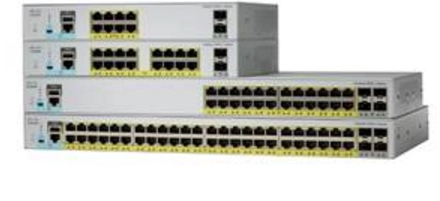

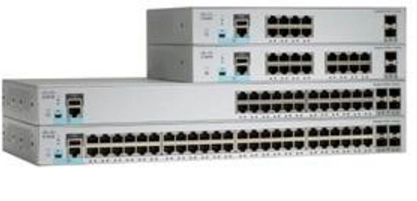

The Catalyst 2960-L Series Switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspaces, and out-of-wiring closet applications. Designed for operational simplicity to lower total cost of ownership, they enable secure, and energy-efficient business operations with a range of Cisco IOS® Software features. - Layer 2 - 2 Gigabit Small Form-Factor Pluggable (SFP) uplinks - Power over Ethernet Plus (PoE+) support with up to 120W - 8, 16, 24, or 48 Gigabit Ethernet ports with line-rate forwarding.
