Hikvision DS-3E0310HP-E 10-ports

Name: Hikvision DS-3E0310HP-E 10-ports
Brand: Hikvision
SKU: 347231
Availability: InStock

Best offer

AED

523⁴⁰

Key Features

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Store-and-forward: Yes
Gigabit Ethernet (copper) ports quantity: 2
Switching capacity: 5.6Gbit/s
Full duplex: Yes
MAC address table: 16000entries
Forwarding rate: 4.17Mpps
Power source: DC
Auto MDI/MDI-X: Yes
10G support: No
Product colour: Blue
Total Power over Ethernet (PoE) budget: 110W
LED indicators: Yes
Power over Ethernet (PoE) ports quantity: 8

Specifications

Features

Product colour

Blue

Switching capacity

5.60 Gbit/s

Full duplex

✓

MAC address table

16000 entries

Forwarding rate

4.17 Mpps

Packaging data

Package weight

1220 g

Weight & dimensions

Weight

550 g

Height

27.80 mm

Depth

103.30 mm

Width

217.60 mm

Power

Power consumption (typical)

10 W

DC input voltage

54 V

Input current

2.5 A

Power consumption (max)

120 W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

90 W

Total Power over Ethernet (PoE) budget

110 W

Power source

Design

Housing material

Metal

LED indicators

Yes

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Auto MDI/MDI-X

✓

10G support

✗

Store-and-forward

✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity

Gigabit Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95 %

Storage relative humidity (H-H)

5 - 95 %

Technical details

Switch type

Unmanaged

Product Details

DS-3E0310HP-E switches are layer 2 100 Mbps long-range PoE switches, providing 1 × 10/100 Mbps Hi-PoE port, 7 × 10/100 Mbps PoE ports, and 2 × 10/100/1000 Mbps RJ45 ports. The switches provide advanced Hi-PoE/PoE technology and supports extend mode with long-range access up to 250 m. Meanwhile, the 2 × 10/100/1000 Mbps RJ45 uplink ports guarantee applications of multiple network solutions.

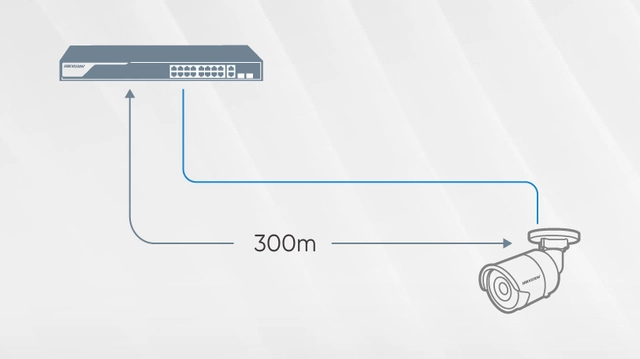

300-Meter Long Distance Transmission

With the Extend Mode on, the transmission distance can be increased to 300 meters. Even when the transmission distance reaches 300 meters, the video is still smooth and stable.

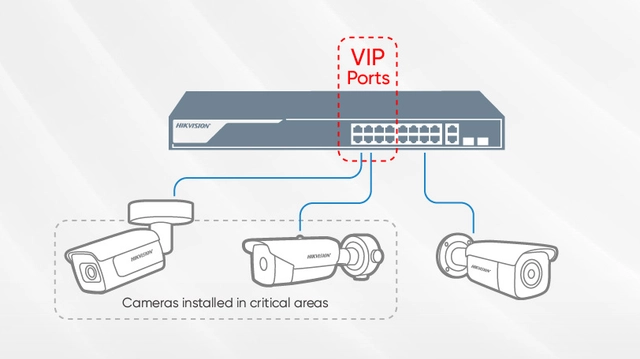

VIP Port Transmission Priority

VIP ports enjoy higher priority and more stable transmission when the switch is overloaded. It' s recommended to connect cameras in critical areas to VIP ports.

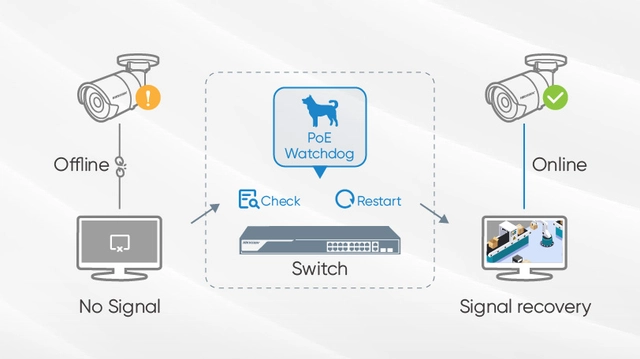

PoE Watchdog

The PoE watchdog can detect the status of the connected devices and restart the offline cameras automatically, saving the cost of manpower maintenance.

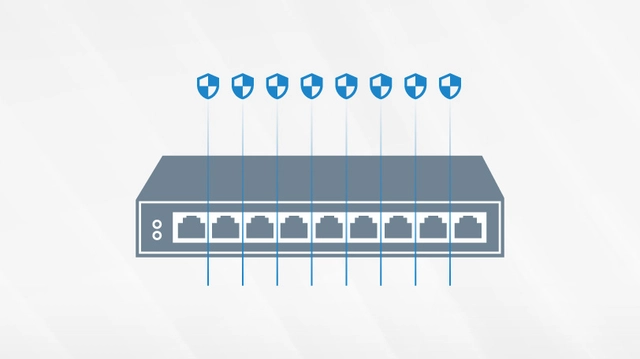

Easy Port Isolation

The port isolation function can virtually isolate the ports with each other, preventing data from leaking among ports, and avoiding broadcasting storm in case of mistaken connection.

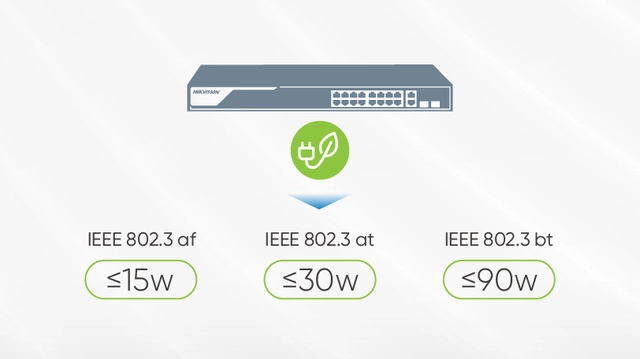

Higher PoE Power Budget

Hikvision PoE switches support IEEE 802.3 af/at/bt PoE standard, and can flexibly match with front-end devices according to their power standard.

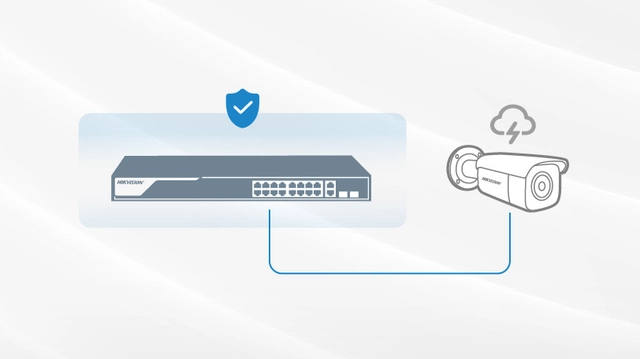

6 KV Surge Protection

Hikvision switches are designed with surge protection function to protect cameras installed outdoors that are vulnerable to lightning strikes.

Files

Product Brochure

mmo_133674911_1756464980_9988_3112949.pdf

PDF• 860.4 KB

Quick Start Guide

mmo_133674911_1756464993_4737_3498497.pdf

PDF• 474.5 KB

User manual

mmo_72533239_1562615880_8521_10528.pdf

PDF• 1.1 MB
