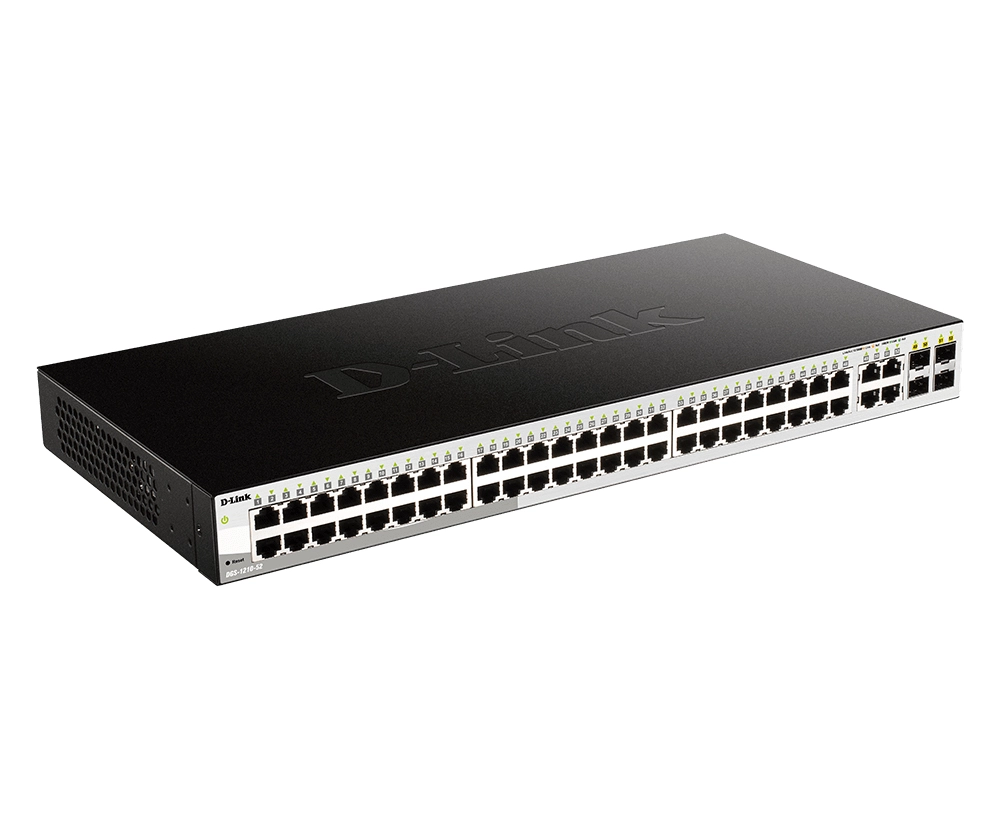

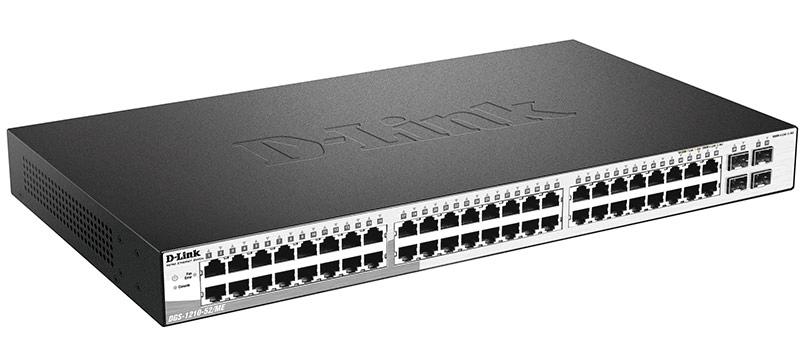

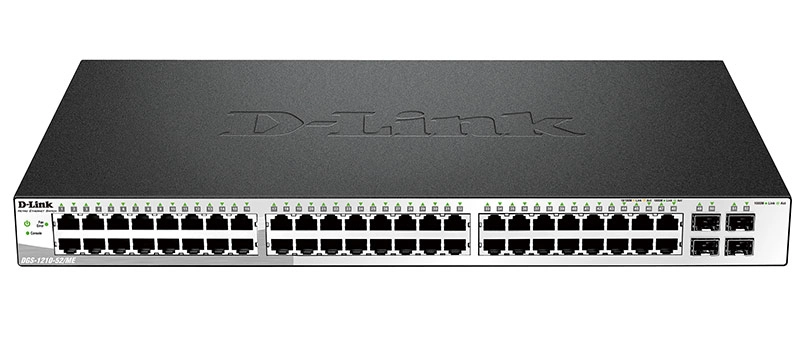

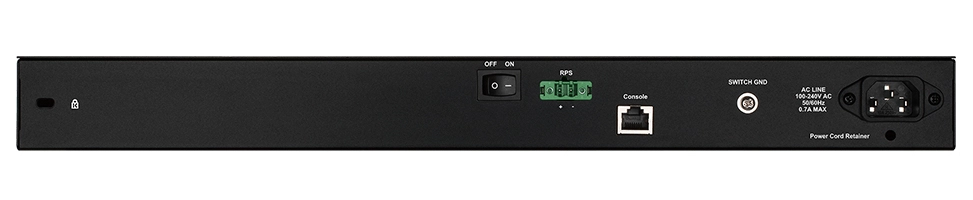

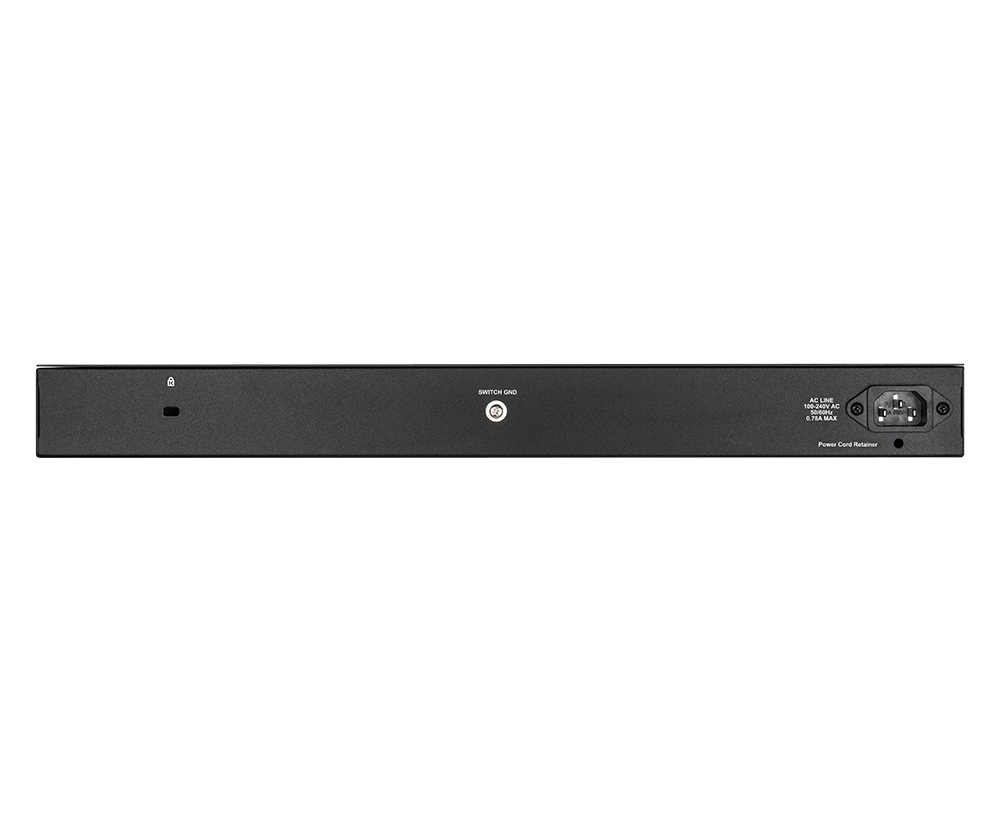

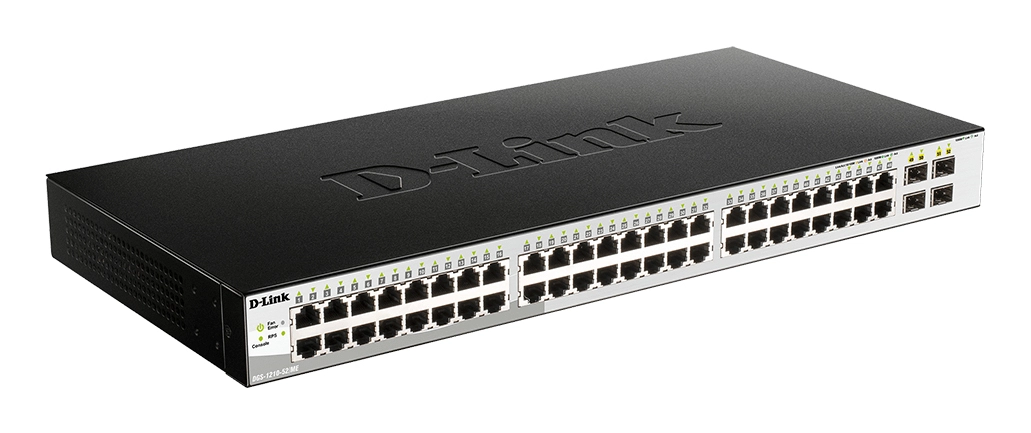

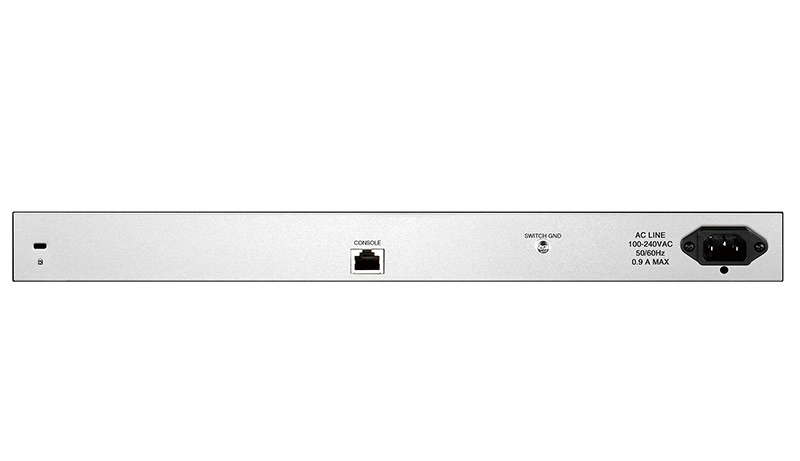

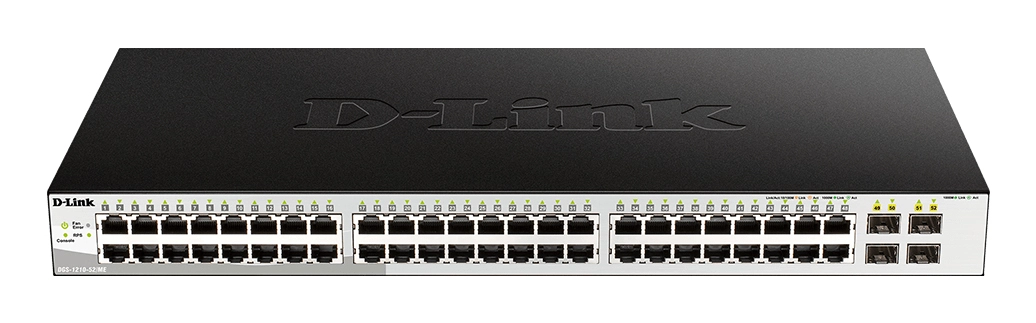

D-Link DGS-1210-52 52-ports

Best offer
AED
82200

Key Features

  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Throughput: 41.7Mpps
  • DHCP features: DHCP client, DHCP server
  • Store-and-forward: Yes
  • Multicast Listener Discovery (MLD) snooping: MLD v2
  • Gigabit Ethernet (copper) ports quantity: 48
  • Port mirroring: Yes
  • Jumbo frames: 10000
  • Switching capacity: 104Gbit/s
  • Full duplex: Yes
  • MAC address table: 16000entries
  • Access Control List (ACL): Yes
  • Configuring Location Settings (CLI): Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Mean time between failures (MTBF)
334101 h
Safety
CE LVD
Electromagnetic compatibility
BSMI, C-Tick, CCC, CE A, FCC A, VCCI
Internal memory
256 MB
MIB support
Private MIB
Quality of Service (QoS) support
✓
Noise level
52.40 dB
Security algorithms
802.1x RADIUS, SNMP, SSH, SSH-2, SSL/TLS
Rack mounting
✓
Stackable
✓
Product colour
Black
Packet buffer memory
3 MB
Switching capacity
104 Gbit/s
Full duplex
✓
MAC address table
16000 entries
Access Control List (ACL)
✓
Configuring Location Settings (CLI)
✓
Jumbo frames support
✓
Forwarding rate
77.40 Mpps
Multicast support
✓
Multicast Listener Discovery (MLD) snooping
MLD v2
Switch layer
L2

Packaging data

Package weight
8540 g
Package height
149 mm
Package depth
568 mm
Package width
558 mm

Weight & dimensions

Weight
3960 g
Height
44 mm
Depth
210 mm
Width
440 mm

Management features

Web-based management
✓
System event log
✓
ARP inspection
✓

Power

Power connector
AC-in jack, DC-in jack
AC input voltage
100 - 240 V
Power consumption (typical)
483.10 W
AC input frequency
50/60 Hz
Power consumption (max)
34.85 W
Power over Ethernet (PoE)
✗
Power source
AC

Wireless LAN features

IGMP snooping
✓

Design

LED indicators
Activity, Fan fail, Link, Power, Speed, Status, Yes
Form factor
1U

Packaging content

Manual
✓
Power supply included
✓

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Supported network protocols
BootP/DHCP, DHCP, ICMP, IPv4 / IPv6, IPv4/IPv6, L2PT, LLDP, MSTP, RMON, RSTP, SNMP, SNTP, STP, TCP, TFTP, Telnet
Management protocols
BootP/DHCP, IPv4/IPv6, LLDP, RMON, SNMP, SNTP, TFTP, Telnet
VLAN support
✓
Number of VLANs
4094
Auto MDI/MDI-X
✓
Spanning tree protocol
✓
Head-of-line (HOL) blocking
✓
Auto-negotiation
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T, 10GBASE-T
10G support
✗
Link aggregation
✓
Flow control support
✓
Jumbo frames
10000
Port mirroring
✓
Store-and-forward
✓

Ports & interfaces

Fiber optic connector
SFP
SFP module slots quantity
4
Console port
RJ-45
Combo SFP ports quantity
4
Gigabit Ethernet (copper) ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48

Operational conditions

Operating relative humidity (H-H)
0 - 95 %
Storage relative humidity (H-H)
0 - 95 %
Heat dissipation
850.58 BTU/h

Technical details

Certification
BSMI, C-Tick, CCC, CE class A, FCC class A, IEC61000-4-5, RoHS, VCCI
Switch type
Managed

Memory

Flash memory
32 MB

Data transmission

Throughput
41.70 Mpps

Security

MAC address filtering
✓
SSH/SSL support
✓
Broadcast storm control
✓
Static port security
✓
Loop protection
✓
BPDU filtering/protection
✓
IP-MAC-Port binding
✓
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
DHCP features
DHCP client, DHCP server

Solid state drive

Memory type
DDR3-SDRAM

Product Details

Smart Managed with a Plus With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link’s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network. Advanced Layer 2 Management with Layer 3 Static Routing The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files. With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments. Fibre Uplinks Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network. PoE and PoE+, with budgets up to 370W The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras. This product is compatible with Nuclias Connect Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution. Free Network Design and Management Software D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis. Smart Energy-Saving Design D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch. Surveillance Mode Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

Files

Product Brochure

mmo_109260799_1734597949_2913_2362624.pdf

PDF• 616.5 KB

EU Declaration of Conformity

mmo_14848857_1733486416_1473_3847754.pdf

PDF• 203.1 KB

Image of packaging

mmo_14848857_1733486456_8339_3840576.pdf

PDF• 202.7 KB

User manual

mmo_14848857_1733486503_1997_3841181.pdf

PDF• 15.5 MB
