Trendnet TI-PGM102 10-ports

Name: Trendnet TI-PGM102 10-ports
Brand: Trendnet
SKU: 347230
Availability: InStock

Best offer

AED

798⁶¹

Key Features

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Store-and-forward: Yes
Gigabit Ethernet (copper) ports quantity: 8
Power over Ethernet plus (PoE+) ports quantity: 8
Half duplex: Yes
Jumbo frames: 1
Wall mountable: Yes
Switching capacity: 20Gbit/s
Full duplex: Yes
DIN rail mounting: Yes
MAC address table: 4000entries
Jumbo frames support: Yes
Forwarding rate: 14.88Mpps
Power source: DC

Specifications

Features

Mean time between failures (MTBF)

1000000 h

Product colour

Black

Packet buffer memory

1.50 MB

Wall mountable

✓

Switching capacity

20 Gbit/s

Full duplex

✓

DIN rail mounting

✓

MAC address table

4000 entries

Jumbo frames support

✓

Forwarding rate

14.88 Mpps

Weight & dimensions

Weight

1100 g

Height

45 mm

Depth

160 mm

Width

210 mm

Power

Power protection features

Overload

DC input voltage

48 - 55 V

Power consumption (max)

6.38 W

Power over Ethernet (PoE)

✓

Total Power over Ethernet (PoE) budget

240 W

Power source

Redundant power supply (RPS) support

✓

Design

International Protection (IP) code

IP30

Housing material

Metal

LED indicators

Yes

Packaging content

Quick start guide

✓

Power supply included

✗

Rack mount kit

✓

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

MAC address auto-learning supported

✓

MAC address auto-aging supported

✓

Auto-negotiation

✓

Jumbo frames

Half duplex

✓

Store-and-forward

✓

Ports & interfaces

Installed SFP modules quantity

Power over Ethernet plus (PoE+) ports quantity

Gigabit Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating relative humidity (H-H)

0 - 95 %

Product Details

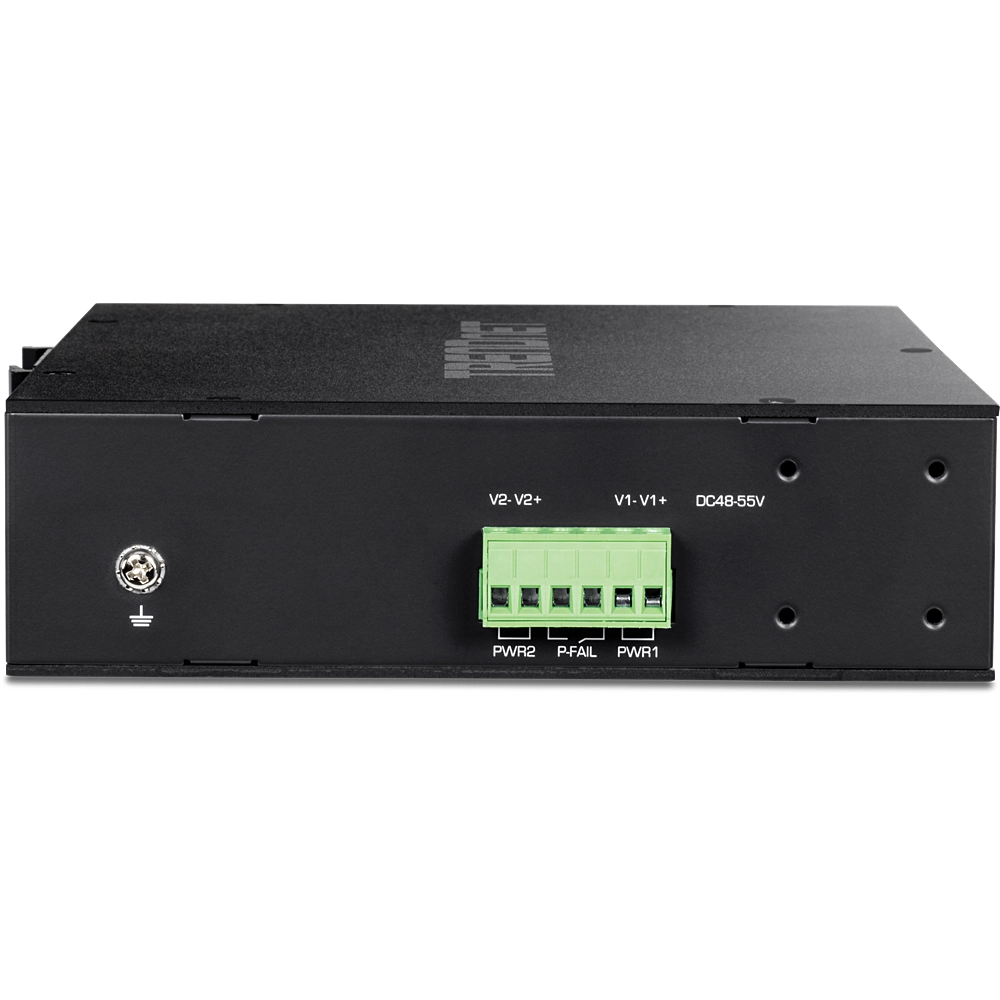

Full PoE+ Power Budget Supplies up to 30W of PoE/PoE+ power per port with a 240W PoE power budget Network Ports 8 x Gigabit PoE+ ports and 2 x Gigabit slots DIN-Rail/Wall Mounts IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware Switching Capacity 20Gbps switching capacity Redundant Power Redundant power inputs with overload current protection (power supply sold separately, models: TI-S24052, TI-S24048) Alarm Relay Alarm relay triggered by power failure of primary and/or redundant power Jumbo Frame Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance Wide Operating Temperature Rated for an operating temperature range of -20° – 65°C (-4° – 149°F) Grounding Point Grounding point protects equipment from external electrical surges

Files

Product Brochure

mmo_97225688_1685997640_608_28051.pdf

PDF• 774.2 KB

Quick Installation Guide

mmo_97225688_1685997660_9575_27497.pdf

PDF• 3.4 MB
