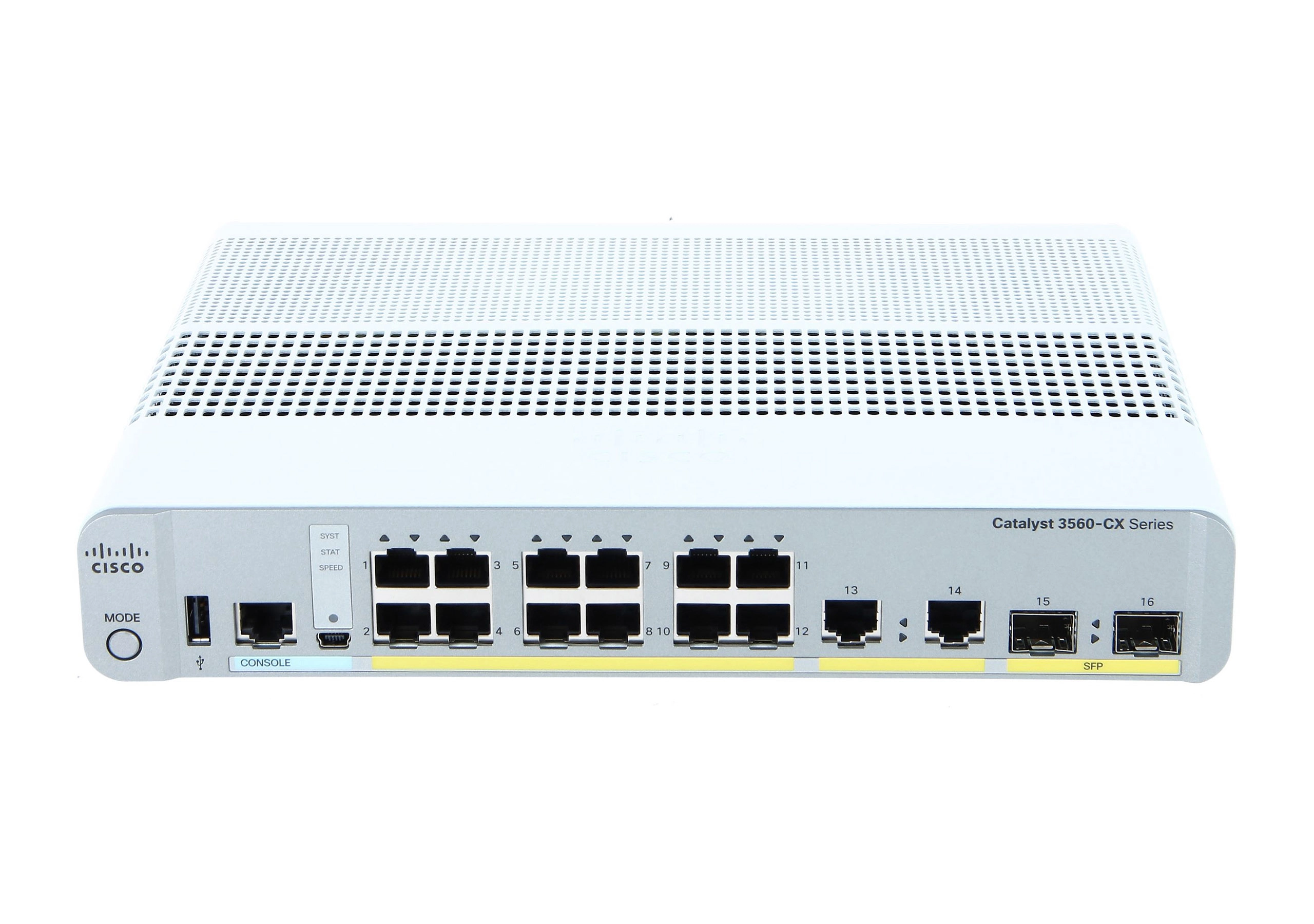

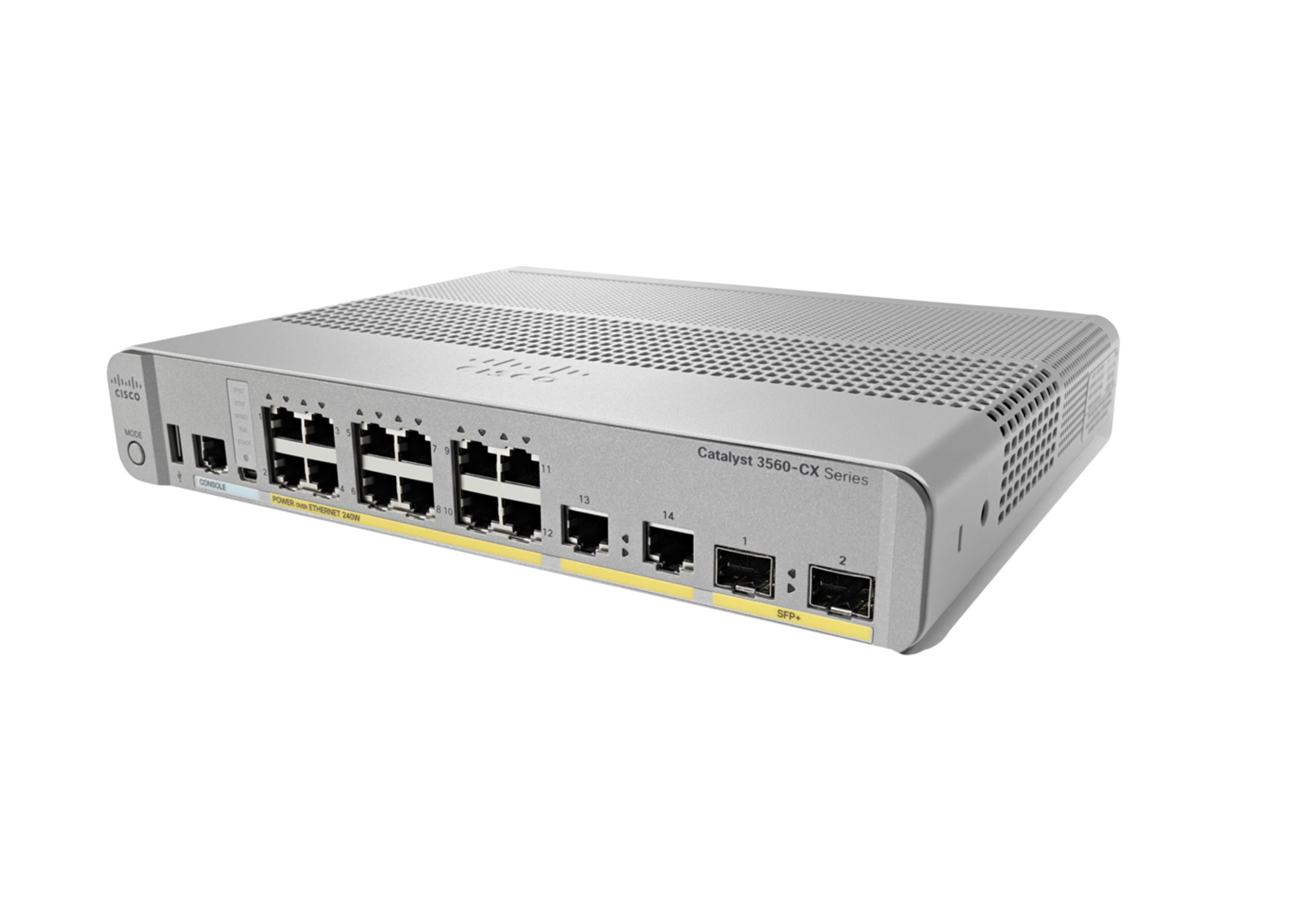

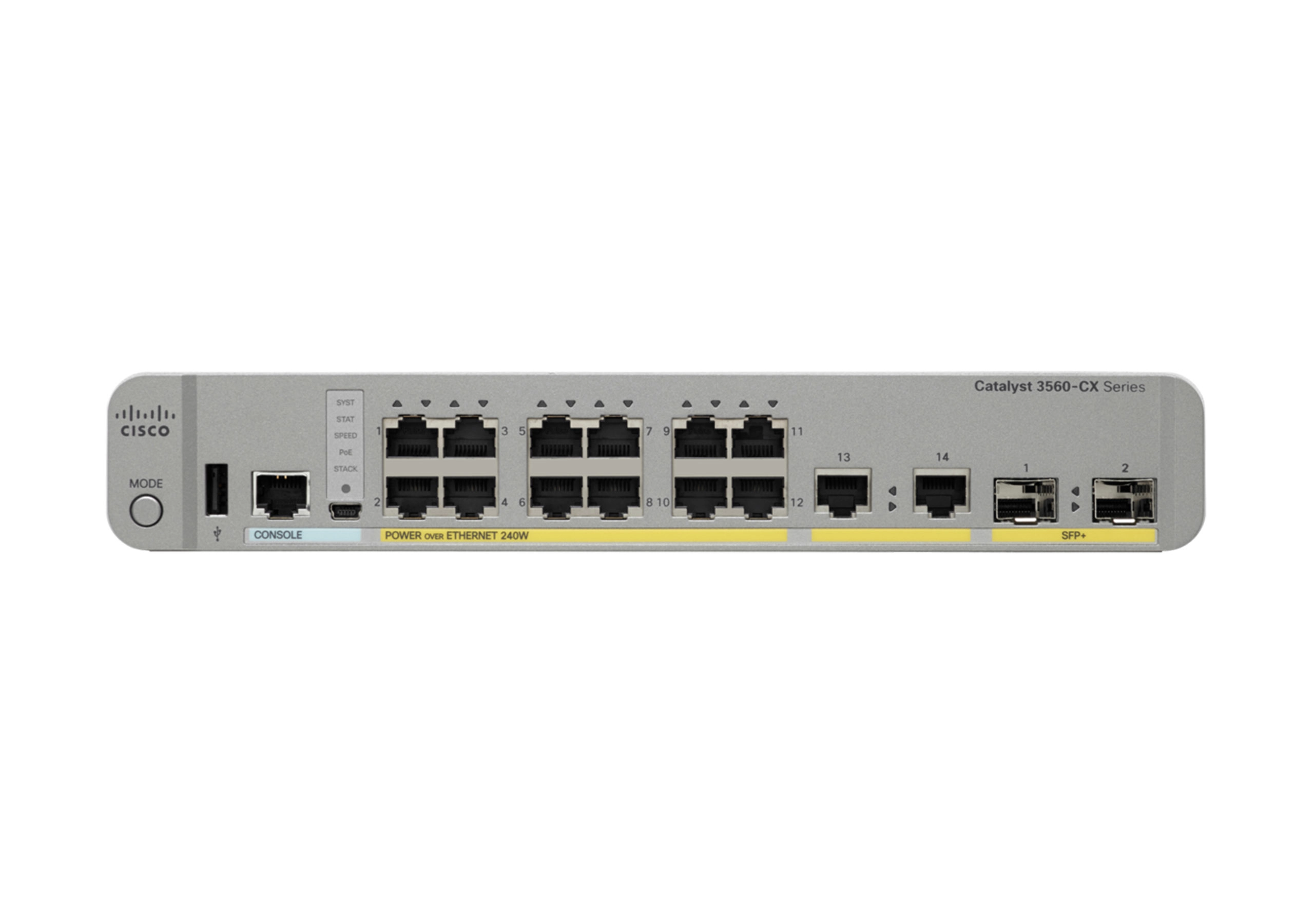

Cisco WS-C3560CX-12PC-S 12-ports

Name: Cisco WS-C3560CX-12PC-S 12-ports
Brand: Cisco
SKU: 346604
Availability: InStock

Best offer

AED

4 550⁴⁹

Key Features

Switch layer: L2/L3
Basic switching RJ-45 Ethernet ports quantity: 12
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
DHCP features: DHCP client, DHCP server, DHCP snooping
Number of queues: 8
Gigabit Ethernet (copper) ports quantity: 2
Port mirroring: Yes
Power over Ethernet plus (PoE+) ports quantity: 12
IP routing: Yes
Jumbo frames: 9198
Wall mountable: Yes
SFP+ module slots quantity: 2
Switching capacity: 32Gbit/s
Full duplex: Yes
Access Control List (ACL): Yes

Specifications

Features

Country of origin

China

Mean time between failures (MTBF)

528480 h

Safety

UL 60950-1

Electromagnetic compatibility

A, ANATEL, AS/NZS, CCC, CE, CFR 47, CISPR22:2004, EN 55022, EN 55022 (CISPR22), EN 55024, EN 55024 (CISPR24), EN55022, FCC, FCC 15, GB17625.1-1998) A, GOST, KCC (MIC, KN24/KN22, V-3/2007.04, VCCI, VCCI A

Market segment

Business

Internal memory

512 MB

Quality of Service (QoS) support

✓

Security algorithms

802.1x RADIUS, SNMP

Rack mounting

✓

Stackable

✗

Virtual LAN features

Private VLAN

Fiber type

Multi-mode

Product colour

White

Wall mountable

✓

SFP+ module slots quantity

Switching capacity

32 Gbit/s

Full duplex

✓

Access Control List (ACL)

✓

DIN rail mounting

✓

Jumbo frames support

✓

Forwarding rate

50.60 Mpps

Multicast support

✓

Switch layer

L2/L3

Packaging data

Package weight

2310 g

Package height

160.30 mm

Package depth

349.20 mm

Package width

327.70 mm

Weight & dimensions

Weight

2310 g

Height

44.40 mm

Depth

238 mm

Width

269 mm

Management features

ARP inspection

✓

Power

Power plug type

Type C

AC input voltage

100 - 240 V

Power consumption (typical)

30 W

AC input frequency

50 - 60 Hz

Input current

1.5 - 3.25 A

Power consumption (max)

278 W

Power over Ethernet (PoE)

✓

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

240 W

Wireless LAN features

IGMP snooping

✓

Design

LED indicators

Yes

Form factor

Packaging content

1 printed document

Power supply included

✓

Network

Networking standards

IEEE 802.11ac, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Management protocols

IGMPv3, SNMP

VLAN support

✓

Number of VLANs

4000

Spanning tree protocol

✓

Rate limiting

✓

Fiber ethernet cabling technology

1000BASE-X, 1000BASE‑BX, 1000BASE‑LH, 1000BASE‑SX, 1000BASE‑ZX, 100BASE-BX, 100BASE-FX, 100BASE-LX

Copper ethernet cabling technology

1000BASE-T, 100BASE-T, 100BASE-TX, 10BASE-T

10G support

✓

Link aggregation

✓

Jumbo frames

9198

Port mirroring

✓

Ports & interfaces

Fiber optic connector

SFP

SFP module slots quantity

Power over Ethernet plus (PoE+) ports quantity

Gigabit Ethernet (copper) ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity

Operational conditions

Operating altitude (imperial)

0 - 3048 m

Operating relative humidity (H-H)

5 - 95 %

Non-operating altitude

0 - 4000 m

Operating altitude

0 - 3048 m

Storage relative humidity (H-H)

5 - 95 %

Heat dissipation

1023.61 BTU/h

Technical details

Switch type

Managed

Memory

Flash memory

128 MB

Data transmission

Number of queues

Security

SSH/SSL support

✓

Static port security

✓

Authentication

MAC-based authentication

DHCP features

DHCP client, DHCP server, DHCP snooping

Ethernet LAN features

IP routing

✓

Logistics data

Harmonized System (HS) code

85176990

Product Details

The Cisco Catalyst 3560CX-12PC-S Network Switch is ideal for high-speed data connectivity, Wi-Fi backhaul and PoE+ connectivity in places where space is at a premium. Featuring a compact design and quiet, fanless operation, this managed switch can come out of the server room and be placed closer to users, meaning shorter cable runs and greater flexibility for your network deployment.

Files

Product Brochure

mmo_26094408_1464854405_9657_30744.pdf

PDF• 740.4 KB
