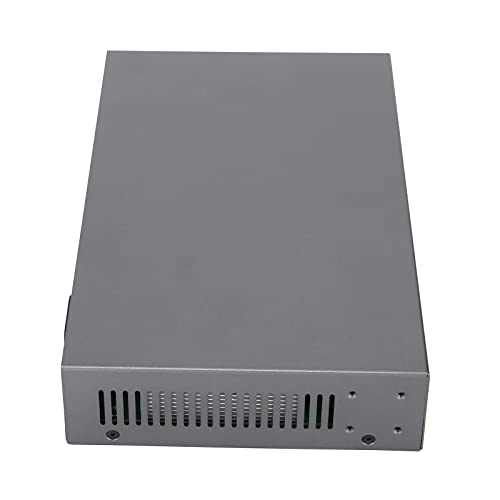

DFE6931WQW Ethernet Switch 8-ports

Feature: 1. All 8 ports support IEEE 802.3af/at POE standard power supply, and the maximum POE output power of the whole machine is 150W 2. Power and data can be transmitted simultaneously for IP Camera and IP phone through ordinary class 5 twisted pair 3. Recoverability, in case of network turbulence or equipment failure, restart (fault recovery) time≤10s. Normal operation, it is used in the environment of ?10 ℃ ~ 45 ℃, and the service life of the product is more than 3 years 4. Eight 100 / 1000Mbps adaptive RJ45 ports, two 10 / 100 / 1000Mbps adaptive RJ45 ports and two multiplexed optical fiber module expansion slots are provided. All ports have line speed forwarding capability and rich port forms, allowing users to seamlessly connect to various networks 5. Advanced POE energy saving chip is adopted. When there is no data and power transmission, the interface will automatically turn to energy saving state to minimize power consumption and reduce operation cost How to Use: No drive, plug and play Specification: Item Type: POE Switch Material: Aluminum Alloy Power Output Pin: Mode-A 1,2(+)/3,6(-) 10 / 100Mbps Interface: 8x 10/100/1000 Base-Tx RJ45 Auto-MDI/MDI-X ports 1000Mbps Interface: 2x10/100/1000Mbps RJ45 Auto-MDI/MDI-X ports SFP:2x1000Base-SX/LX Switch Fabric: 20 Gbps / Non Blocking Switch Architecture: Store and Forward Switch Throughput: 14.88Mpps at 64Bytes Address Table: 8K Entries Flow Control: Back Pressure for Half Duplex; IEEE 802.3x Pause Frame for Full Duplex Standard: IEEE 802.3: 10BASE-T IEEE 802.3u：100BASE-TX IEEE 802.3z：1000BASE-SX/LX IEEE 802.3ab：1000BASE-T IEEE 802.3af: Power over Ethernet IEEE 802.3at:Power over Ethernet POE
