GS1350-12HP-EU0101F 10-ports
GS1350-12HP-EU0101F 10-ports
GS1350-12HP-EU0101F 10-ports
GS1350-12HP-EU0101F 10-ports
GS1350-12HP-EU0101F 10-ports
GS1350-12HP-EU0101F 10-ports
GS1350-12HP-EU0101F 10-ports
GS1350-12HP-EU0101F 10-ports
GS1350-12HP-EU0101F 10-ports

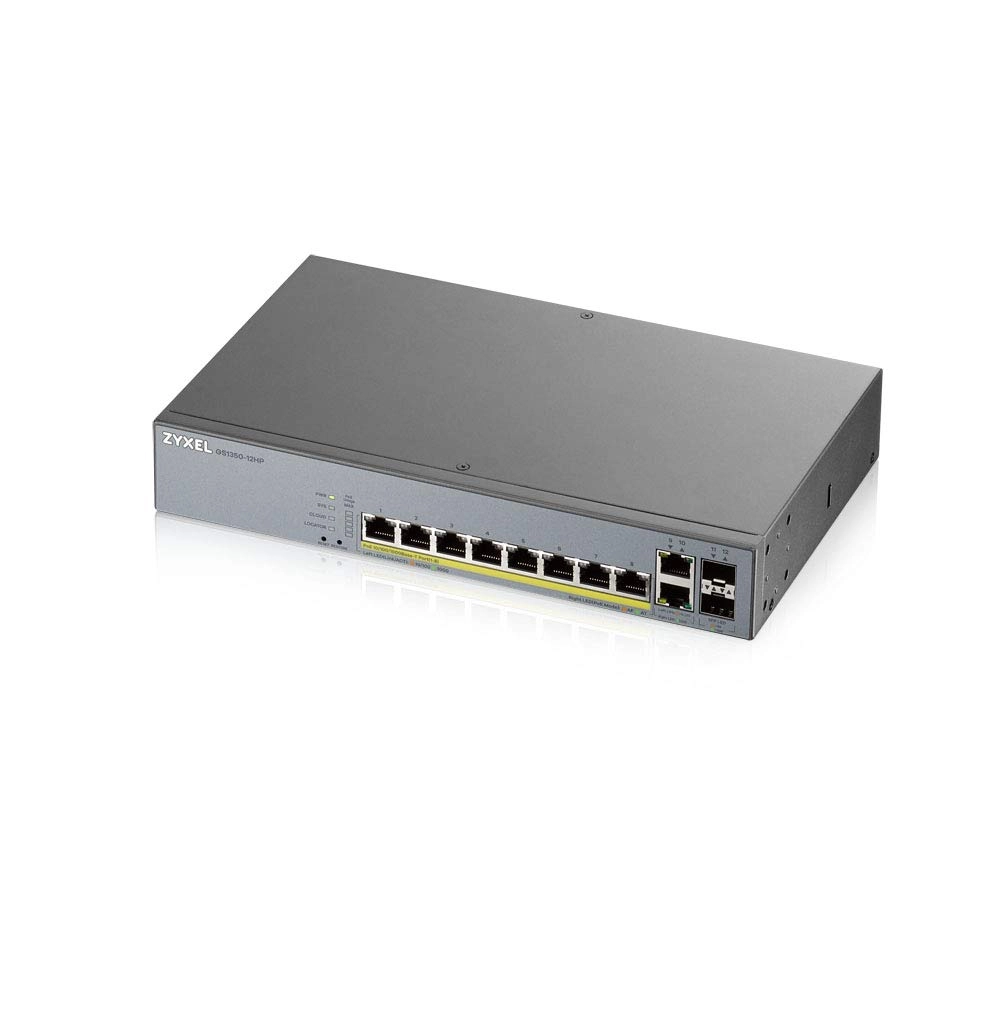

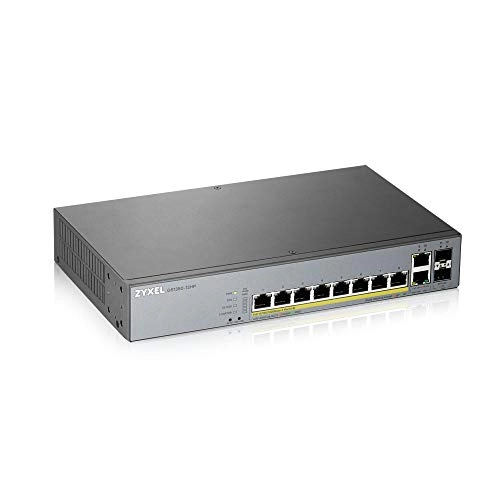

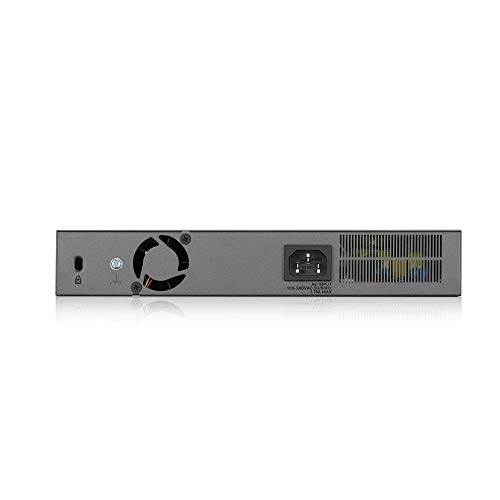

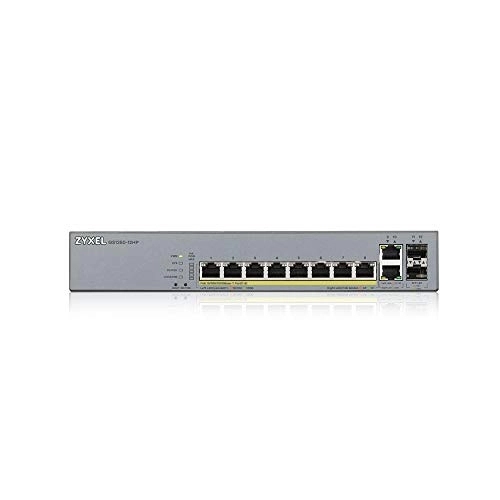

Zyxel GS1350-12HP-EU0101F 10-ports

Best offer
AED
1 28537

Key Features

  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 10
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • DHCP features: DHCP client, DHCP relay, DHCP snooping
  • Port mirroring: Yes
  • Queue scheduling algorithms: SPQ, WFQ, Weighted Round Robin (WRR)
  • Switching capacity: 24Gbit/s
  • MAC address table: 8000entries
  • Configuring Location Settings (CLI): Yes
  • Forwarding rate: 17.8Mpps
  • Multicast support: Yes
  • IGMP snooping: Yes
  • IGMP proxy: Yes
  • Rack mount kit: Yes
  • Spanning tree protocol: Yes
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Mean time between failures (MTBF)
1065025.45 h
MIB support
RFC 1757
Noise level
27.30 dB
Security algorithms
SNMP, SNMPv3, SSH, SSL/TLS
Rack mounting
✓
Virtual LAN features
MAC address-based VLAN, Port-based VLAN
Product colour
Grey
Packet buffer memory
0.53 MB
Queue scheduling algorithms
SPQ, WFQ, Weighted Round Robin (WRR)
Switching capacity
24 Gbit/s
MAC address table
8000 entries
Configuring Location Settings (CLI)
✓
Forwarding rate
17.80 Mpps
Multicast support
✓
Switch layer
L2

Weight & dimensions

Weight
1630 g
Height
44 mm
Depth
162 mm
Width
267 mm

Management features

Web-based management
✓
Firmware upgradeable
✓
System event log
✓

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
160.30 W
Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
130 W

Wireless LAN features

IGMP snooping
✓
IGMP proxy
✓

Design

LED indicators
Yes

Packaging content

Cables included
AC
Rack mount kit
✓

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support
✓
Number of VLANs
256
Spanning tree protocol
✓
Fiber ethernet cabling technology
1000BASE-X
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
10G support
✗
Flow control support
✓
Port mirroring
✓

Ports & interfaces

Power over Ethernet (PoE) ports quantity
8
SFP module slots quantity
2
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
10

Operational conditions

Operating relative humidity (H-H)
5 - 95 %
Storage relative humidity (H-H)
5 - 95 %
Heat dissipation
546.62 BTU/h

Technical details

Switch type
Managed

Security

MAC address filtering
✓
Broadcast storm control
✓
Loop protection
✓
DHCP features
DHCP client, DHCP relay, DHCP snooping

Logistics data

Harmonized System (HS) code
85176990

Product Details

Just For Surveillance Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications New outlook Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch. Specialized PoE software features for surveillance Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios. Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time. Easy for long-distance deployment Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE. High power budget, intuitive front panel design The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations. Unique hardware, robust design Stabilized power Filters electrical noise and surge to ensure supplying stable power to PoE and the system. Selected power supply 2X Surge and ESD protection. Isolated Circuit Design Provides protection to isolate power surges from Ethernet and power supply. Intelligent System Monitor Keeps the system operational from anomalies. Patented Ethernet Protection - 4X Surge protection. - 2X ESD resistant.

Files

User manual

mmo_72718466_1580295737_3561_9391.pdf

PDF• 5.6 MB
