GS1200-8HPV3 8-ports
GS1200-8HPV3 8-ports
GS1200-8HPV3 8-ports
GS1200-8HPV3 8-ports

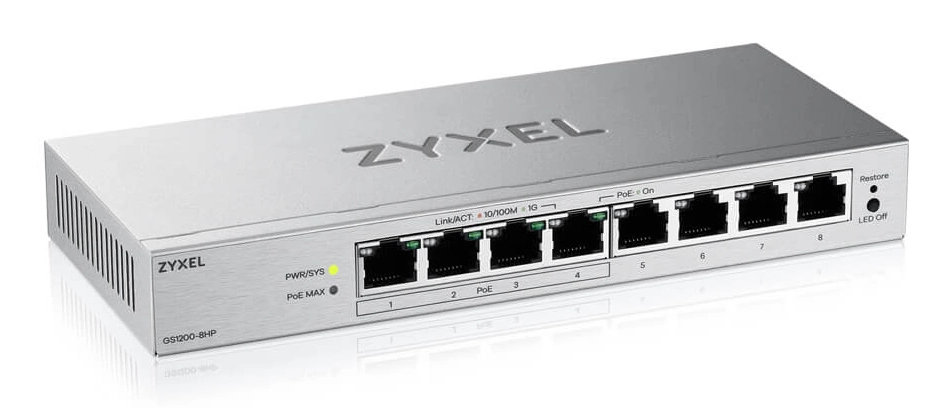

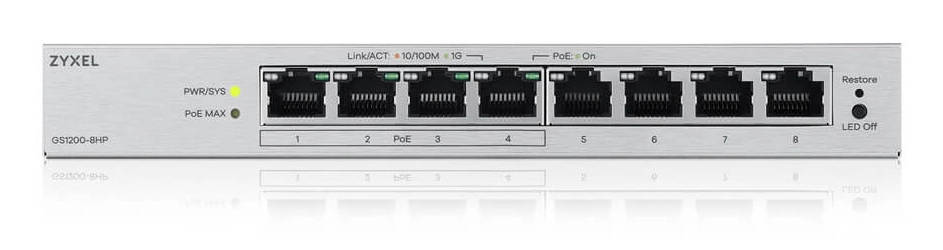

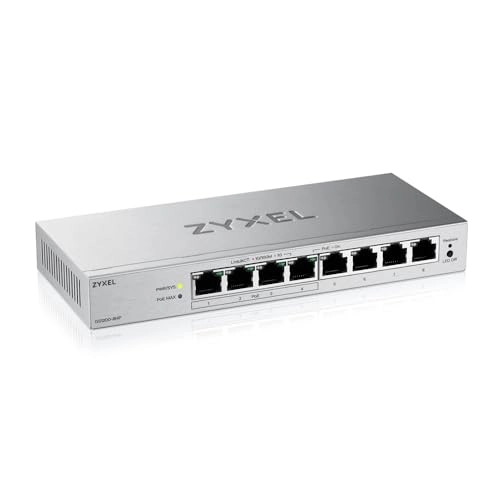

Zyxel GS1200-8HPV3 8-ports

Best offer
AED
66906

Key Features

  • Switch layer: L2
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • DHCP features: DHCP client
  • Number of multicast groups filtered: 128
  • Port mirroring: Yes
  • Jumbo frames: 15
  • Queue scheduling algorithms: Weighted Round Robin (WRR)
  • Switching capacity: 16Gbit/s
  • Full duplex: Yes
  • MAC address table: 4000entries
  • Jumbo frames support: Yes
  • Forwarding rate: 11.9Mpps
  • Multicast support: Yes
  • Power source: AC/PoE
  • Offers
  • Price History
  • Specifications
  • Product Details
  • Review IconReviews

Specifications

Features

Mean time between failures (MTBF)
1749682 h
Quality of Service (QoS) support
✓
Password protection
✓
Rack mounting
✗
Stackable
✗
Virtual LAN features
Port-based VLAN
Product colour
Grey
Packet buffer memory
0.19 MB
Queue scheduling algorithms
Weighted Round Robin (WRR)
Switching capacity
16 Gbit/s
Full duplex
✓
MAC address table
4000 entries
Jumbo frames support
✓
Forwarding rate
11.90 Mpps
Multicast support
✓
Switch layer
L2

Weight & dimensions

Weight
337 g
Height
26 mm
Depth
85 mm
Width
193 mm

Management features

Web-based management
✓
Number of multicast groups filtered
128

Power

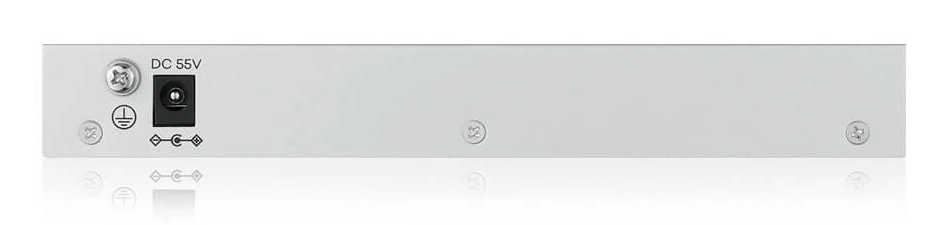

Power connector
DC-in jack
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
81.27 W
Power over Ethernet (PoE)
✓
Total Power over Ethernet (PoE) budget
68 W
Power source
AC/PoE

Wireless LAN features

IGMP snooping
✓

Design

Fanless
✓
LED indicators
Yes
Form factor
Desktop

Packaging content

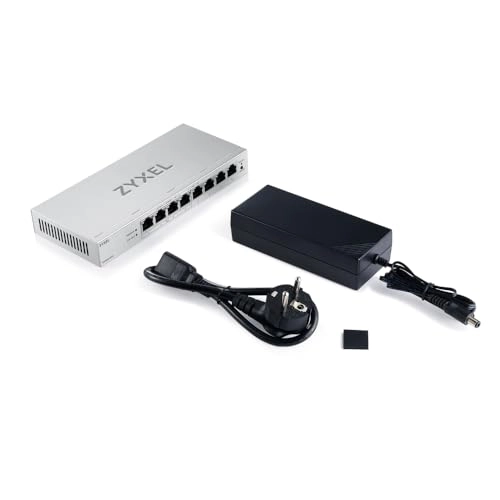

Power supply included
✓

Network

Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
VLAN support
✓
Copper ethernet cabling technology
1000BASE-T, 100BASE-T, 10BASE-T
10G support
✗
Flow control support
✓
Jumbo frames
15
Port mirroring
✓

Ports & interfaces

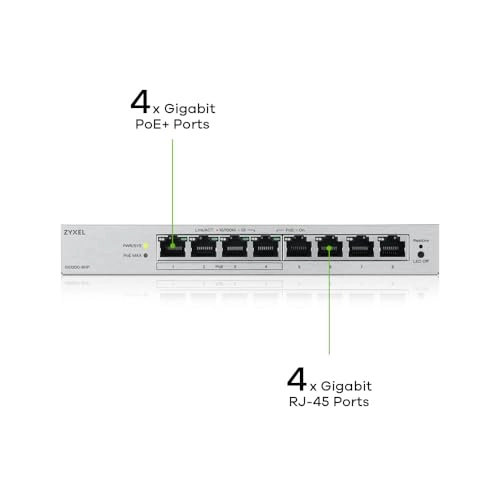

Power over Ethernet (PoE) ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
10 - 95 %
Storage relative humidity (H-H)
10 - 95 %
Heat dissipation
45.28 BTU/h

Technical details

Certification
BSMI CE, BSMI Class B, CE-LVD, EAC, FCC
Switch type
Managed

Security

Broadcast storm control
✓
DHCP features
DHCP client

Product Details

Speedy Gigabit Performance and Diversified Options There are five models for GS1200v3 series, coming with non-PoE (GS1200-5/8) to connect to devices including PCs, NAS, and print servers, PoE capable (GS1200-5HP/8HP) to provide power to IP CAM, wall mounted AP and PoE standard devices, and fiber uplink (GS1200-10) for easily deployment in hallways to connect network devices on the same floor and link them back to the core network. Easy Web Management This Series of switch comes with a user-friendly web-based set-up interface that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. Some advanced features such as Link aggregation, VLAN, IGMP Snooping can be configured just with a few simple clicks. Smart PoE+ 802.3at Support PoE models support the IEEE 802.3at PoE+ standard, providing a maximum of 30 watts per port (with a max total power budget of 68 watts) to supply power to PoE network devices like wireless APs, IP cameras and VoIP phones. Web GUI management enables you to monitor the power status on each port and/or reboot the network devices, as needed. Silent and Light-Off Design The fanless design ensures all-time silent operation to blend into noise-free working environments. Also, you can deactivate turn off the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode. Blend Seamlessly into Your Workspace Place the compact GS1200v3 switch wherever it fits best—on your desk, mounted on the wall, or neatly under the table—without taking up valuable space. Its built-in IEEE 802.3az Energy Efficient Ethernet (EEE) technology automatically detects network traffic and dynamically adjusts power consumption to save energy during low activity periods.

Files

Product Brochure

mmo_138871998_1767349931_7566_264.pdf

PDF• 2.9 MB

Quick Start Guide

mmo_138871998_1767349931_7836_264.pdf

PDF• 4.8 MB

User’s Guide

mmo_138871998_1767349931_8037_264.pdf

PDF• 2.4 MB
