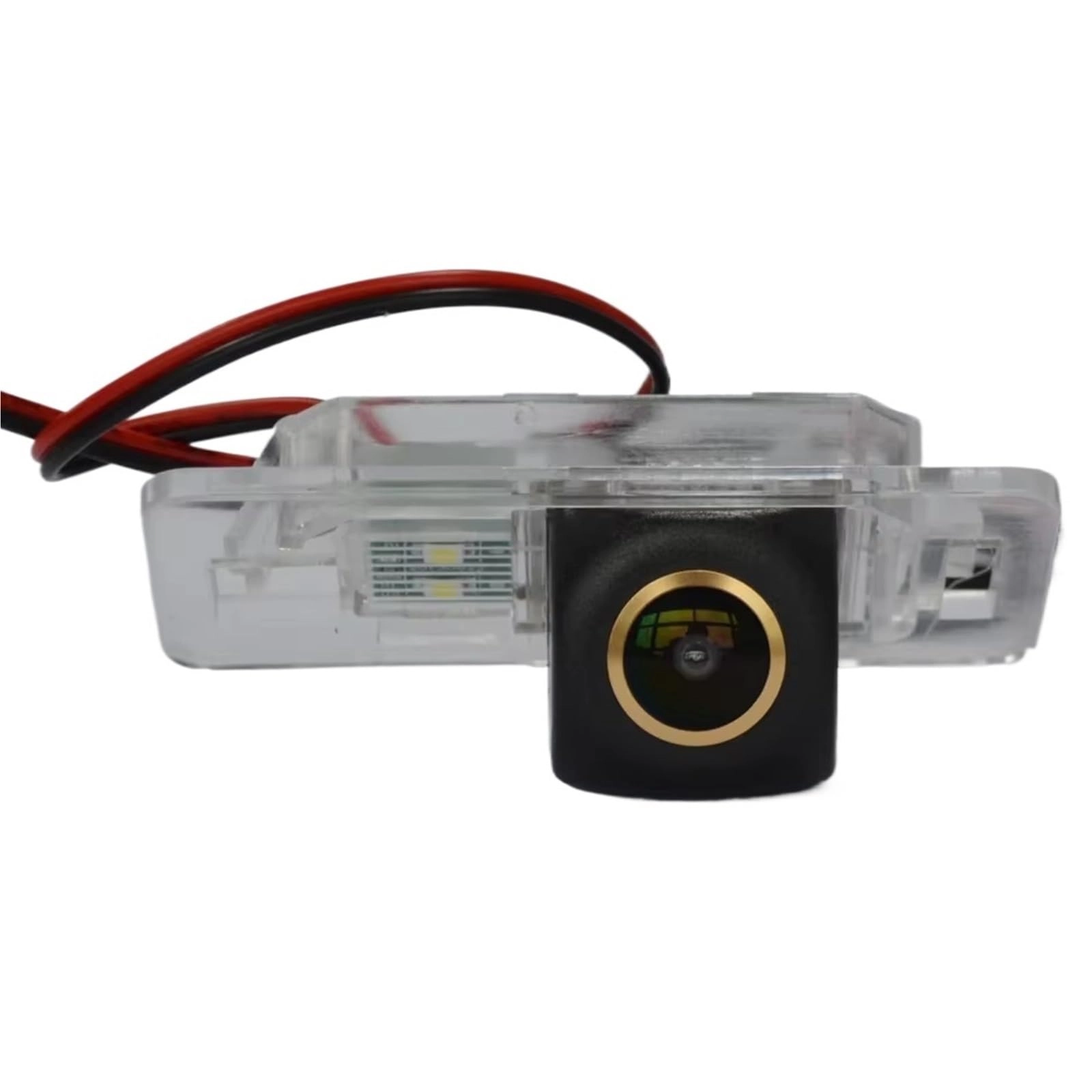

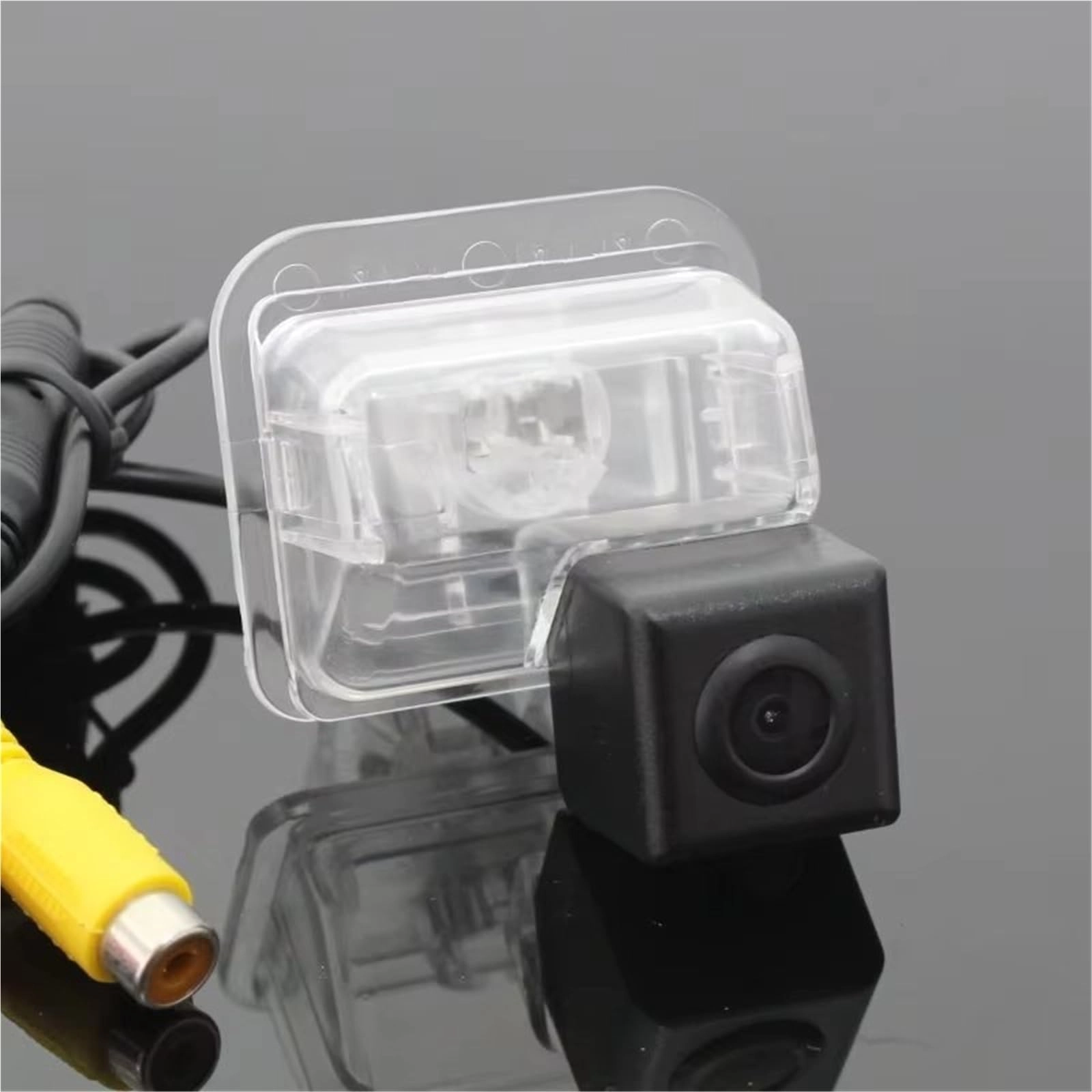

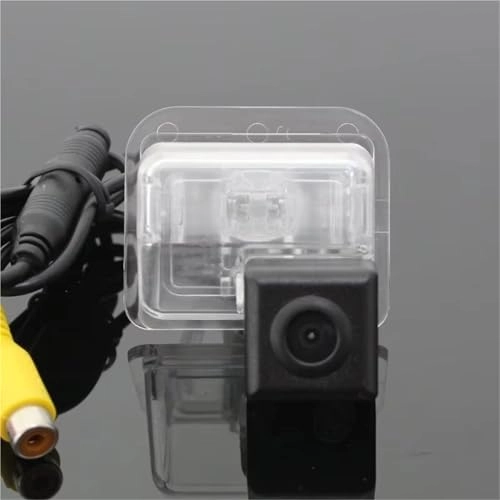

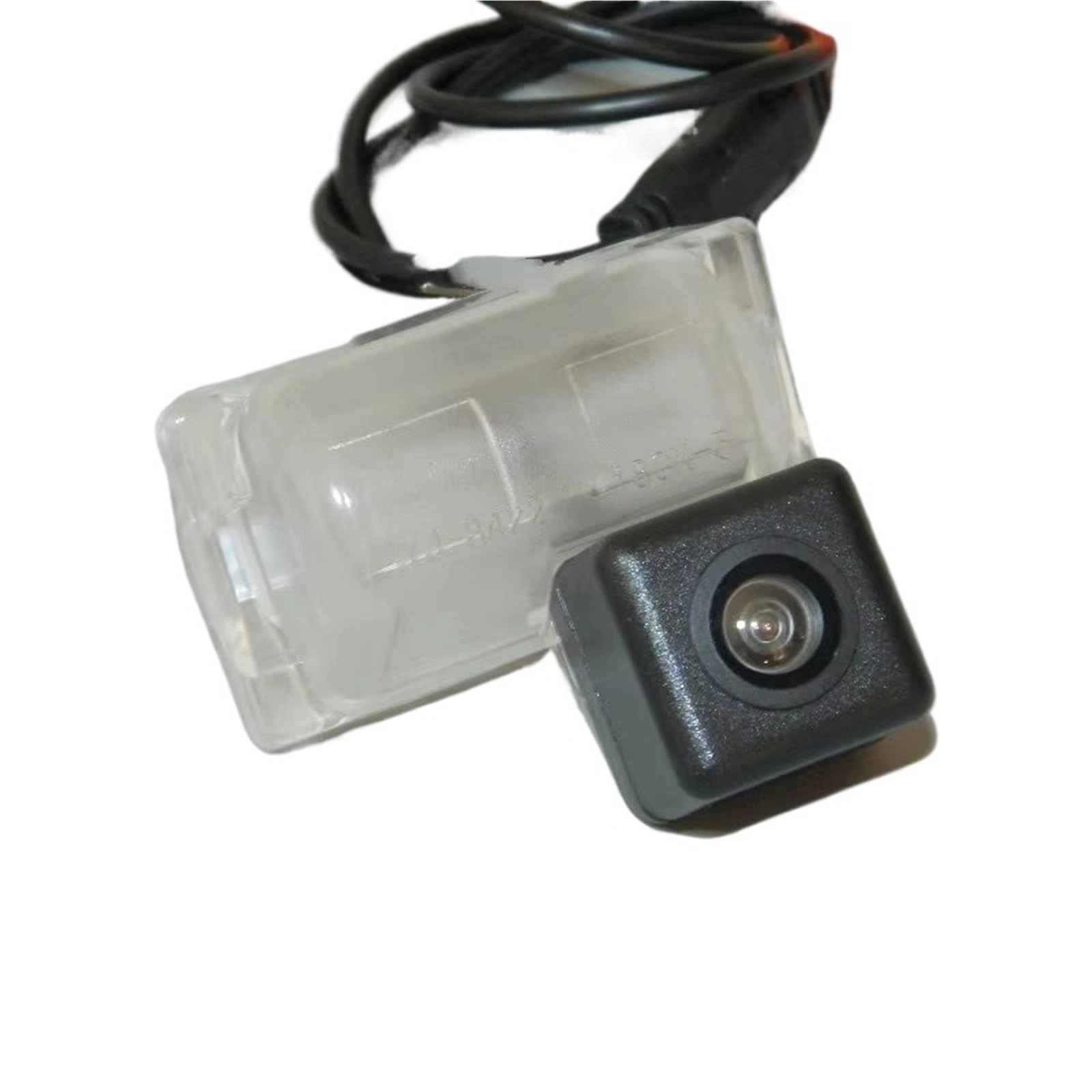

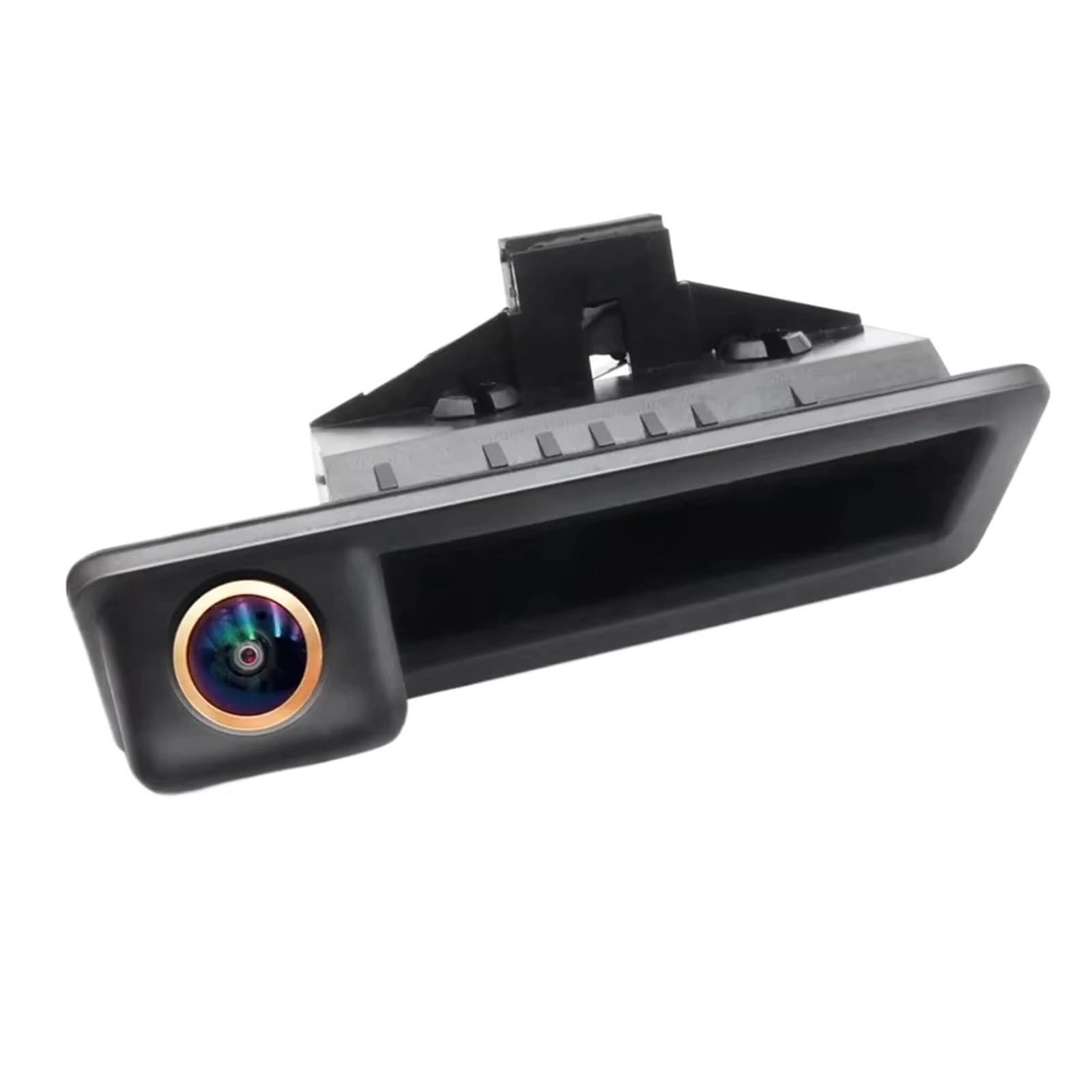

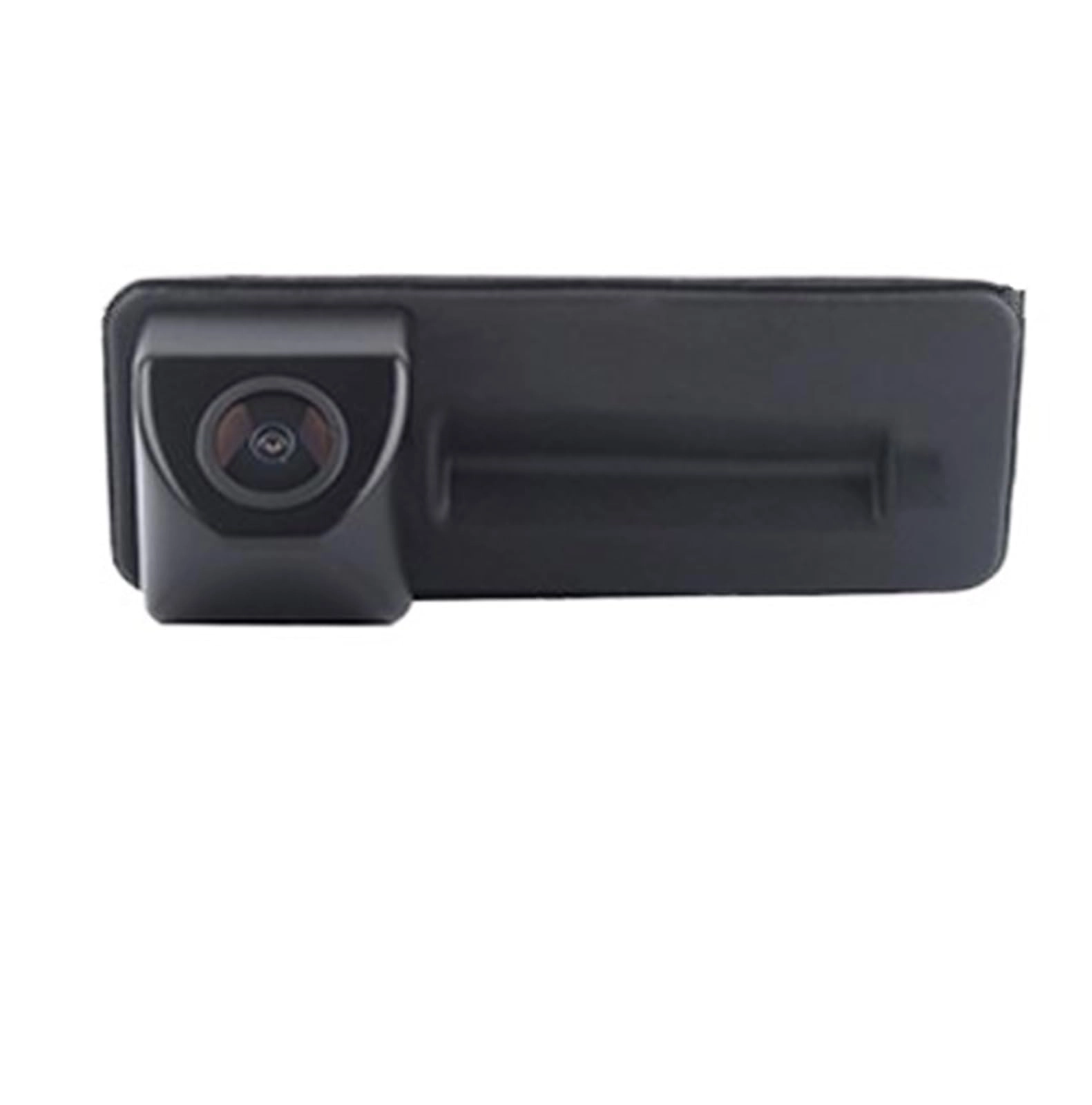

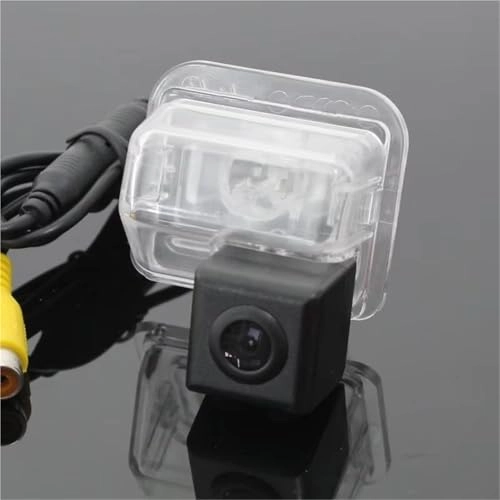

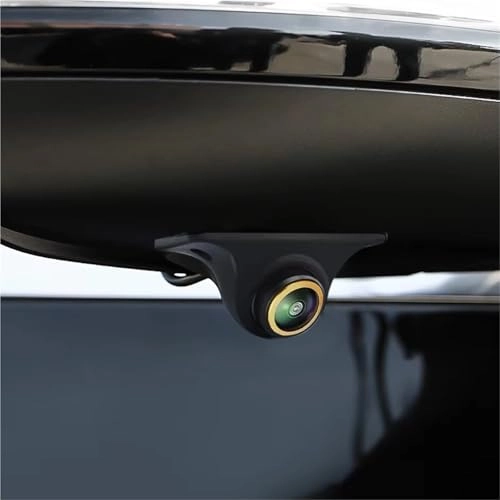

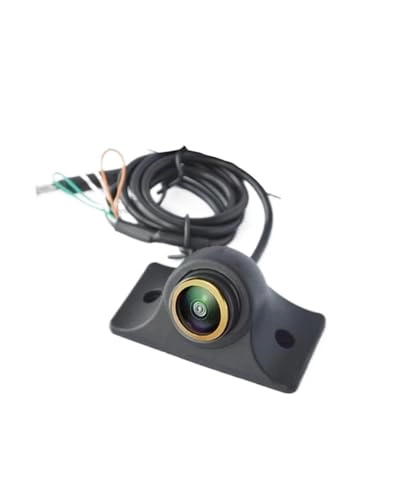

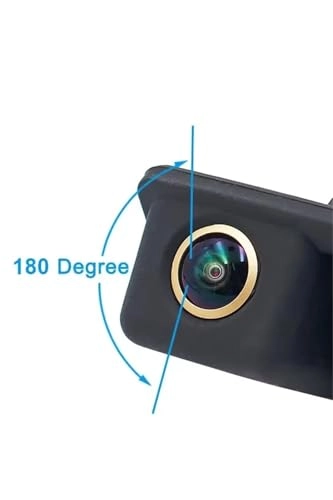

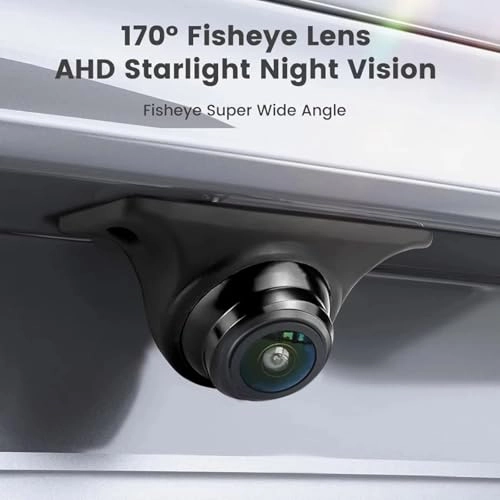

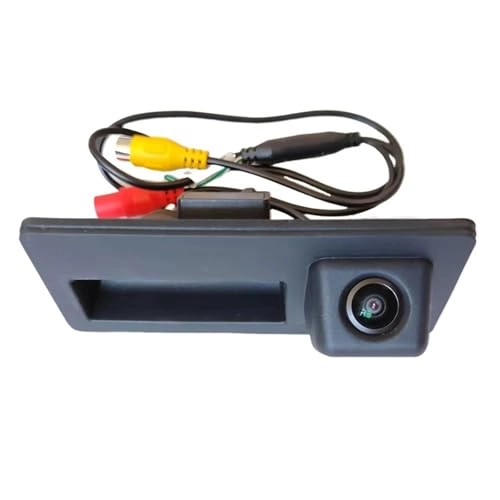

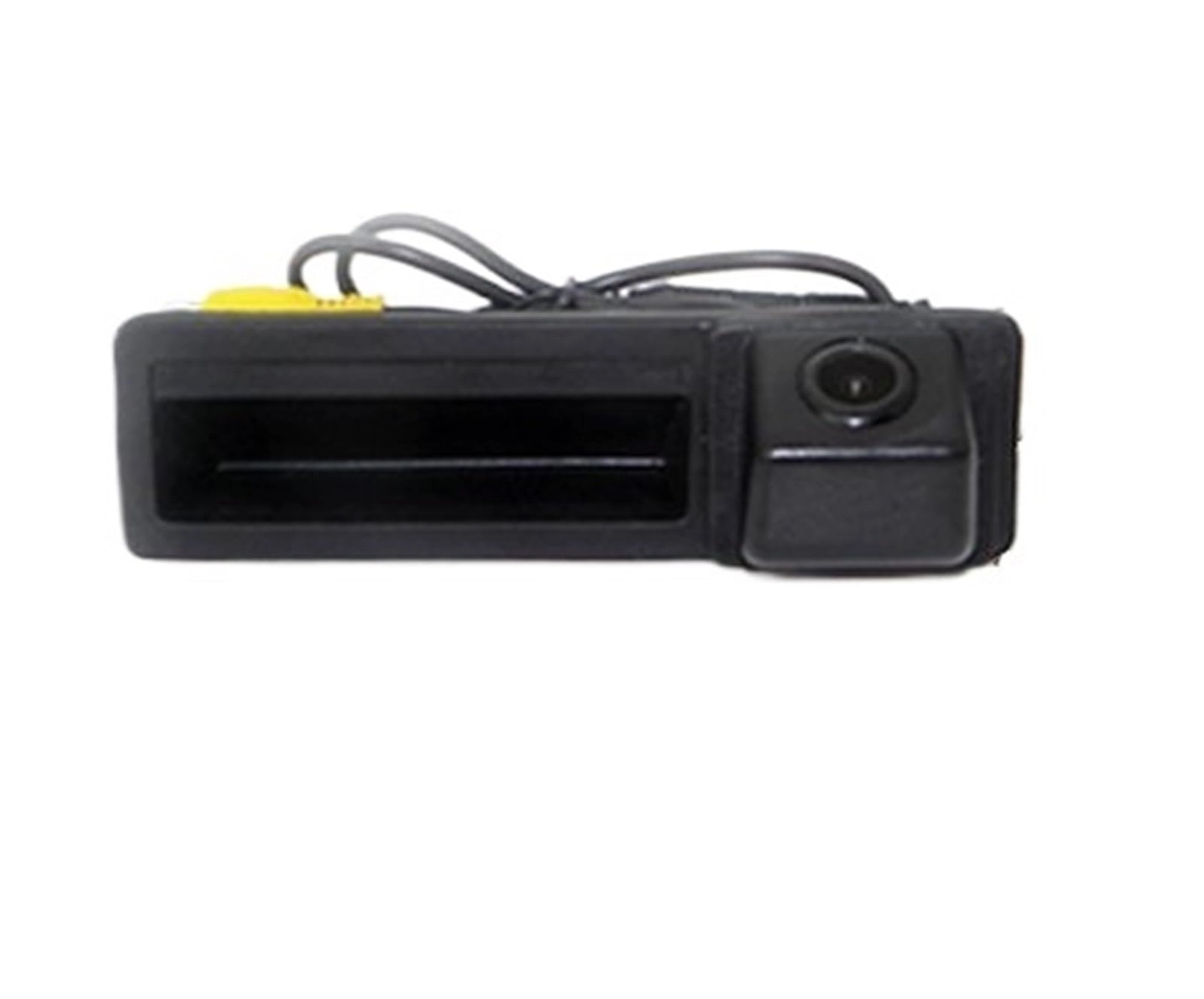

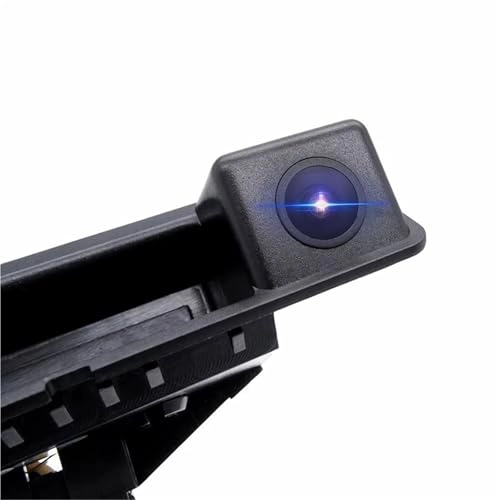

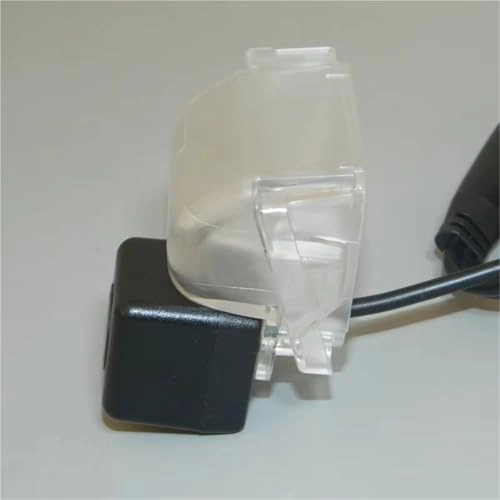

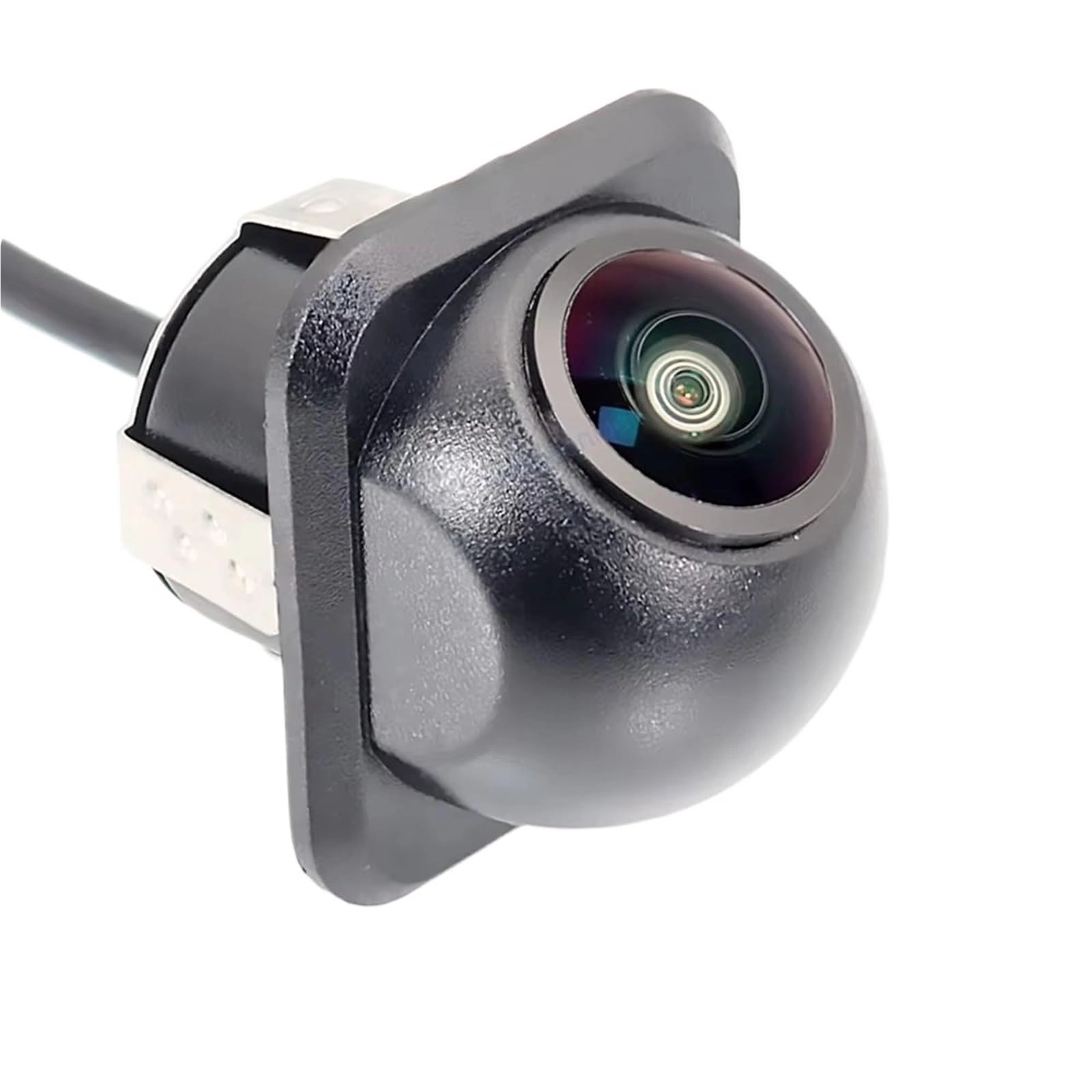

Zhaomystic Backup Camera - Night vision 648*488 pixels

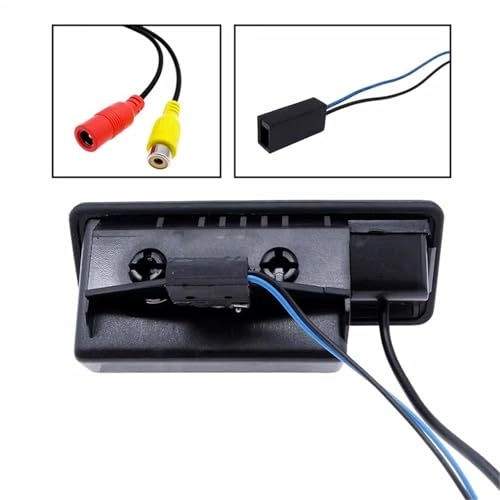

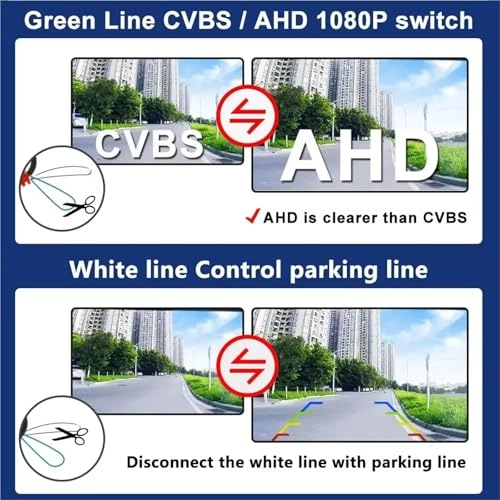

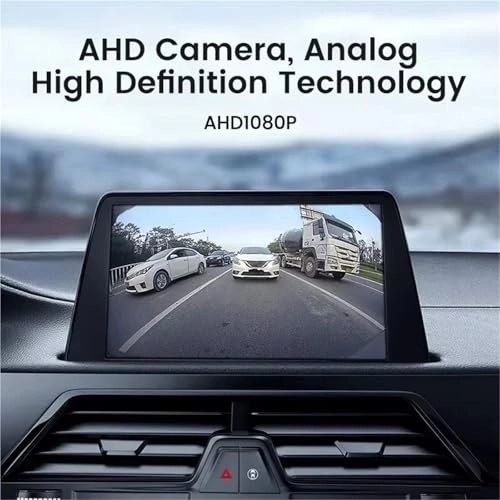

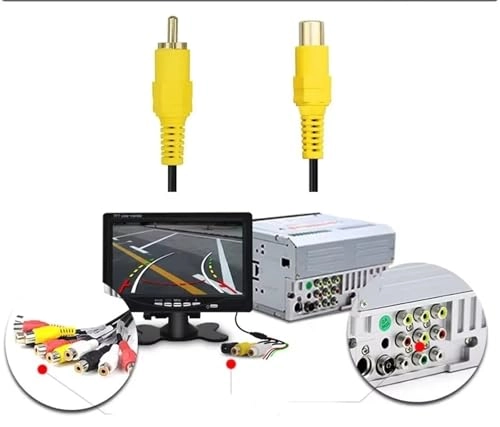

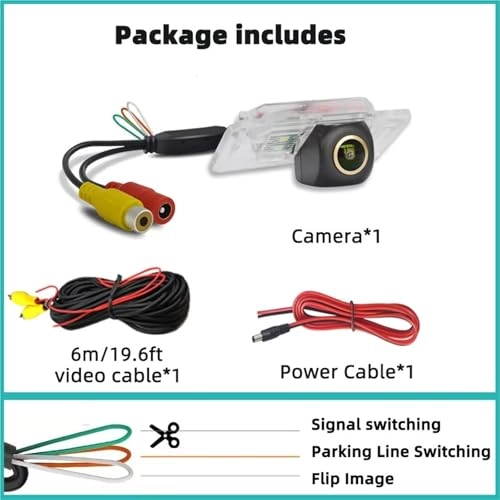

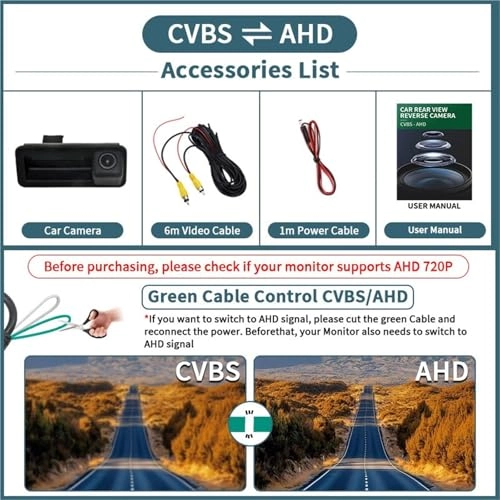

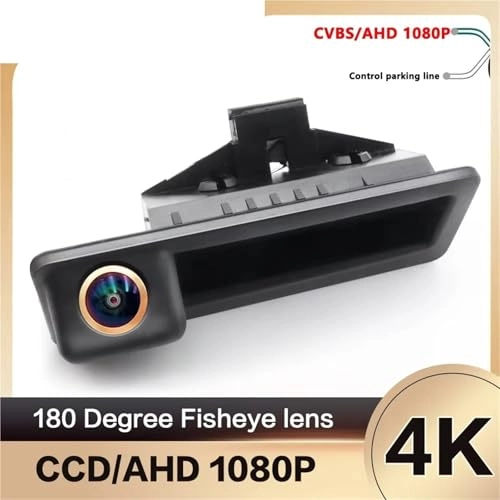

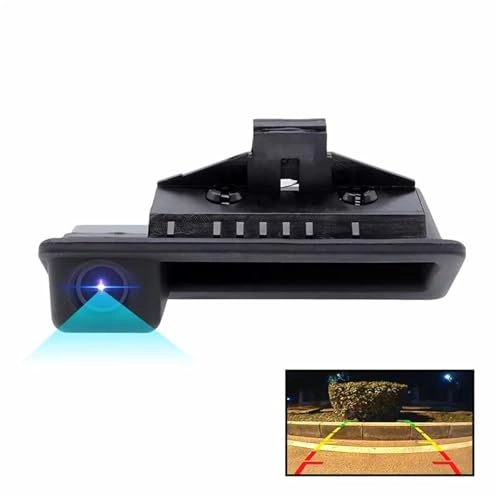

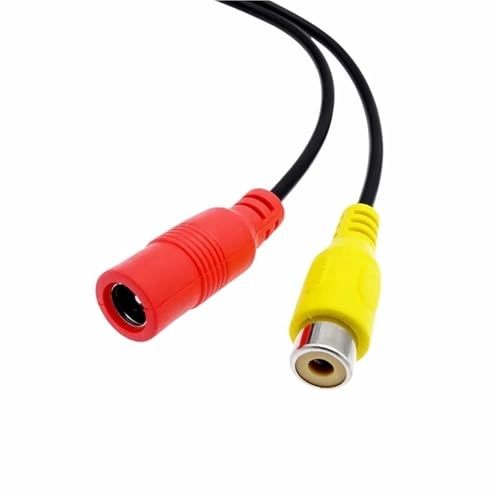

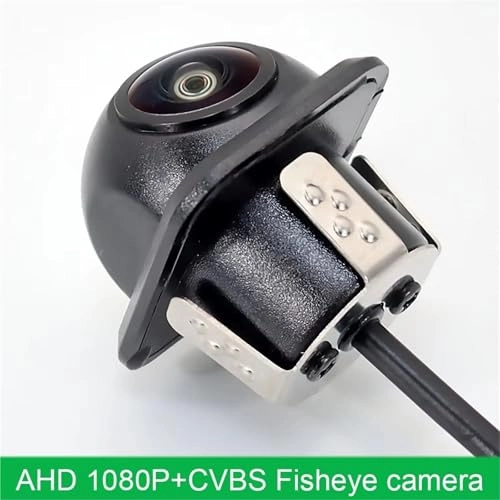

Purchase need to know: 1: Video signals must match:There are generally two types of video signals output by cameras, AHD or CVBS, and your device must match it to display it normally. Now, car DVD, display, car navigation and other devices can support receiving CVBS or AHD signals at the same time. 2: Connectors must match: There are 4-PIN, and other connectors, please pay attention to whether they match. 3: This product can be switched between the AHD and CVBS signals, which can flip the screen. The parking line can be displayed or hidden. The product is connector, DC12V. Tips, About AHD Style: Adjustment to AHD signal via monitor settings is required before mounting the camera. Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD. Installation Diagram: FAQ: 1.After connecting the rearview camera, the screen shows no signal, a black screen, and no picture, what should I do? A) Please check your signal format (AHD/CVBS), and choose the right signal to run the camera. B) Please check your connection, the red trigger line should connect to your reverse light and monitor the reverse-in cable. Tip: CVBS cameras can test the performance of the TV. Universal cameras with 4Pin plugs can only be installed with our cables. 2.After connecting the rearview camera, the screen shows black and white, what should I do if there is no color? A) Choosing the wrong camera (such as PAL/NTSC) will cause the screen to be black and white. Please select the right to run the camera and restart the camera power. CVBS camera is an NTSC , and the AHD1080P camera is a PAL . B) Please check whether the 6M line is normal, please replace it with another 6M cable to test the camera. 3.What functions are controlled by each of the 3 cables of the rearview camera? Green Cable: Video Signal Control. AHD Camera. Cut the white cable→. CVBS Camera. Brown Cable: Mirror Control. The default is the rearview camera (Mirroring). Cut the white cable→. Front view camera ( Non-mirroring ). You can also manually rotate the sphere angle 90 °, to achieve the effect of the side camera. White Cable: Parking Line Control. The camera with the parking line/camera does not display the parking line, you can cut the green cable, and then reconnect the camera's power supply, which can change the parking line. Because the same car model in different countries may have some difference.Please check the camera size and compare the installation of your car carefully to avoid mistake.
